Understanding the 74HC04D and Common Issues

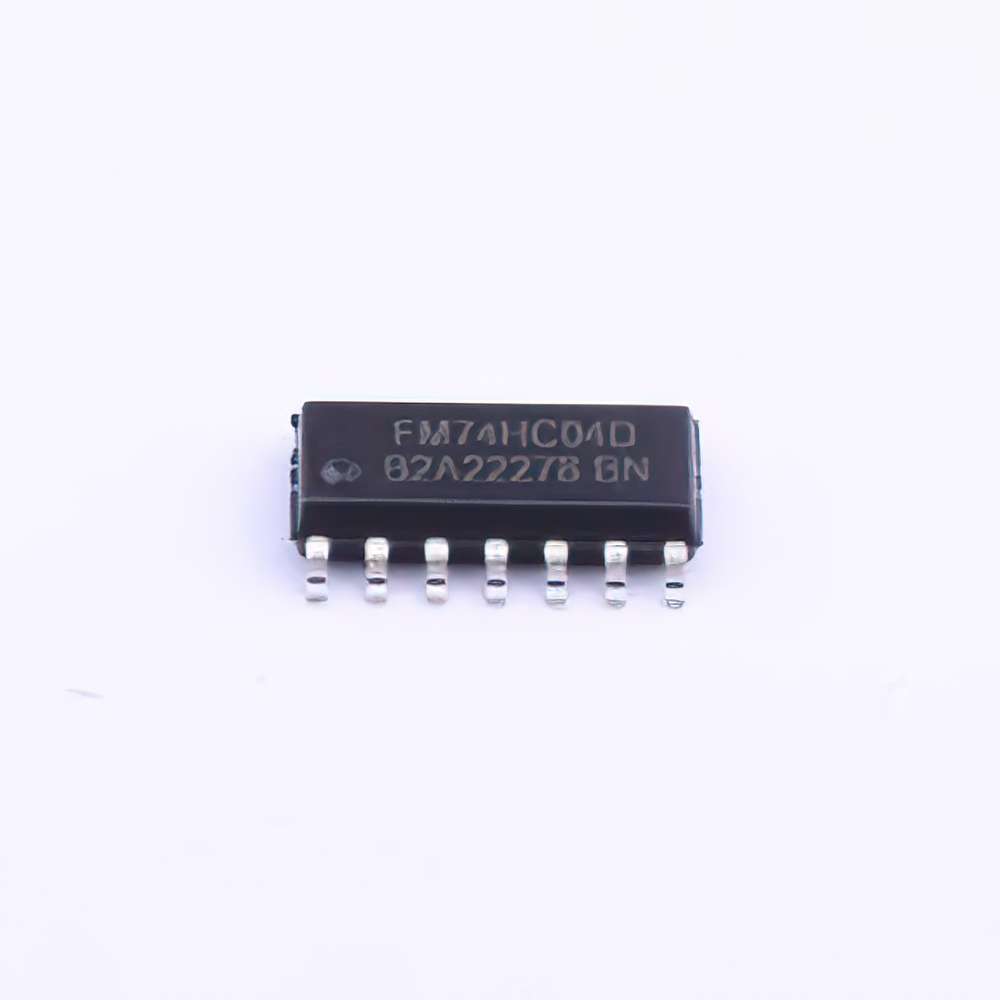

The 74HC04D is a hex inverting logic gate IC, part of the 74HC family, which is widely used in digital electronic circuits. This IC contains six independent inverters, each capable of providing a logical inversion (NOT) to an input signal. In simpler terms, if the input to the inverter is “1,” the output will be “0,” and vice versa. The 74HC04D operates at high speed and low Power consumption, making it a reliable component in various applications such as signal conditioning, waveform generation, and logic circuit design.

Common Issues with the 74HC04D

Despite its widespread use and reliability, like any integrated circuit (IC), the 74HC04D can face issues that may hinder its performance. Some of the common issues you may encounter with the 74HC04D include:

1. No Output or Erratic Output

The most common problem faced by users of the 74HC04D is no output or inconsistent output behavior. This could happen for several reasons, including:

Incorrect Wiring or Connections: One of the most frequent causes of no output is improper circuit connections. Ensure that all pins, including the input and output pins, are connected correctly. The 74HC04D has a standard pinout, with six inverters; the input for each gate is on pins 1, 3, 5, 9, 11, and 13, and the corresponding outputs are on pins 2, 4, 6, 8, 10, and 12.

Floating Inputs: Floating input pins can lead to unpredictable outputs. It’s essential to either provide a defined logic level (HIGH or LOW) on all input pins, or to use pull-up or pull-down resistors to stabilize the input state.

Power Supply Issues: A malfunctioning power supply or insufficient voltage can cause the IC to fail to operate. Ensure that the 74HC04D is powered with the appropriate voltage (typically 2V to 6V) and that the ground connection is secure.

2. Overheating of the IC

Overheating can occur when the 74HC04D is exposed to excessive current or incorrect voltage levels. This problem can be exacerbated if the IC is in a poorly ventilated area or if there is a short circuit within the system. Overheating could damage the IC permanently.

Solution: Use current-limiting resistors and ensure that the IC is operating within its rated voltage and current limits. Adequate cooling or proper placement in a well-ventilated area can also prevent overheating.

3. Signal Distortion or Unreliable Switching

Another problem that users may face with the 74HC04D is signal distortion or unreliable switching between logic states. This can manifest as the IC producing incorrect or noisy output signals, especially when the input signal is fluctuating or has noise.

Solution: Ensure clean, noise-free input signals by using decoupling capacitor s across the power supply pins of the IC. Capacitors of around 0.1 µF are typically used for this purpose. Also, check the integrity of the input signals and the surrounding components to avoid any interference that could affect the IC’s performance.

4. Damage from Static Discharge

Like most CMOS ICs, the 74HC04D is susceptible to damage from electrostatic discharge (ESD). Improper handling, especially when touching the IC pins without proper grounding, can lead to internal damage or erratic behavior.

Solution: Always use an anti-static wristband and ground yourself before handling the 74HC04D. Store unused ICs in anti-static packaging to prevent exposure to static electricity.

Troubleshooting Approach

When faced with a malfunctioning 74HC04D, a systematic approach to troubleshooting can help identify and resolve the issue quickly. Here’s a step-by-step guide to troubleshooting common problems:

Check Circuit Connections: Start by verifying that all connections are correct according to the datasheet’s pinout diagram. Ensure there are no loose or disconnected wires.

Test the Power Supply: Measure the supply voltage and confirm that it is within the rated range of 2V to 6V for proper operation of the IC.

Inspect the Input Signals: Use an oscilloscope or logic analyzer to check the quality of the input signals. Ensure they are within logic level thresholds (0V for LOW, Vcc for HIGH).

Check for Floating Inputs: Use pull-up or pull-down resistors to ensure the input pins are not left floating.

Look for Signs of Overheating: Check for any signs of overheating on the IC, such as discoloration or an abnormal increase in temperature. If this occurs, check for excessive current draw or short circuits in the circuit.

Advanced Troubleshooting and Best Practices for 74HC04D

Once you've identified the primary issues using the steps outlined in Part 1, further measures can be taken to ensure the reliability of the 74HC04D IC and your overall circuit design. Let’s delve into some advanced troubleshooting techniques and best practices for using the 74HC04D.

Advanced Troubleshooting Techniques

1. Testing the IC with Known Good Inputs

If you're still encountering issues after following the initial troubleshooting steps, it's a good idea to test the 74HC04D with a known good input signal. This involves feeding the IC a clean and stable signal, such as a clock signal or a logic signal from a function generator, and observing the output.

Solution: This can help determine if the issue is with the IC itself or with the input signal conditioning circuit. If the output from the IC is still unreliable or inconsistent, it may indicate that the IC has been damaged and needs replacement.

2. Use a Pull-up Resistor on the Enable Pin (if applicable)

Some variants of the 74HC04D may have an enable pin or other control pins that can influence the operation of the IC. If these pins are not correctly configured, the IC may not behave as expected.

Solution: Ensure that any enable or control pins are properly pulled to the appropriate logic levels (usually HIGH or LOW). Use a pull-up or pull-down resistor as needed to ensure the IC is always in the correct mode.

3. Check for Grounding Issues

A poor or floating ground connection can cause strange behavior in digital ICs, including the 74HC04D. Ensure that the ground pin is securely connected to the common ground of the entire circuit.

Solution: If you're using a breadboard or multiple power sources, double-check the grounding to ensure no ground loops or floating grounds exist. This can significantly affect the performance of digital components.

Best Practices for 74HC04D ICs

To avoid troubleshooting and performance issues with the 74HC04D in the first place, it's important to follow best practices during both the design and handling phases of your circuit.

1. Use Decoupling Capacitors

As mentioned earlier, noise or instability in the power supply can lead to unreliable behavior of digital ICs. Always place a 0.1 µF ceramic capacitor between the Vcc and ground pins of the 74HC04D to filter out power supply noise.

2. Handle with Care

Always handle the IC with care to avoid ESD damage. Use an anti-static mat and wristband to discharge any static buildup before working with the IC.

3. Check the Datasheet

Before using the 74HC04D in your circuit, thoroughly review the datasheet for pin configuration, recommended operating conditions, and electrical characteristics. This can help prevent issues related to incorrect wiring or insufficient voltage.

4. Test with Low Loads First

When testing the 74HC04D in a new circuit, begin by driving low-load circuits. This helps reduce the stress on the IC and makes it easier to identify issues without damaging the component.

5. Consider Heat Management

In circuits where the 74HC04D may be driving multiple gates or higher loads, consider heat management strategies such as heat sinks or better ventilation to prevent overheating and ensure long-term reliability.

Conclusion

The 74HC04D is a reliable and efficient hex inverter IC, but like all electronic components, it is subject to potential issues. By following the troubleshooting steps outlined in this guide, and incorporating best practices into your circuit design, you can avoid common problems and maintain the reliability of your circuit. Proper handling, connection, and testing are essential to ensure the 74HC04D continues to function effectively in your digital applications.
