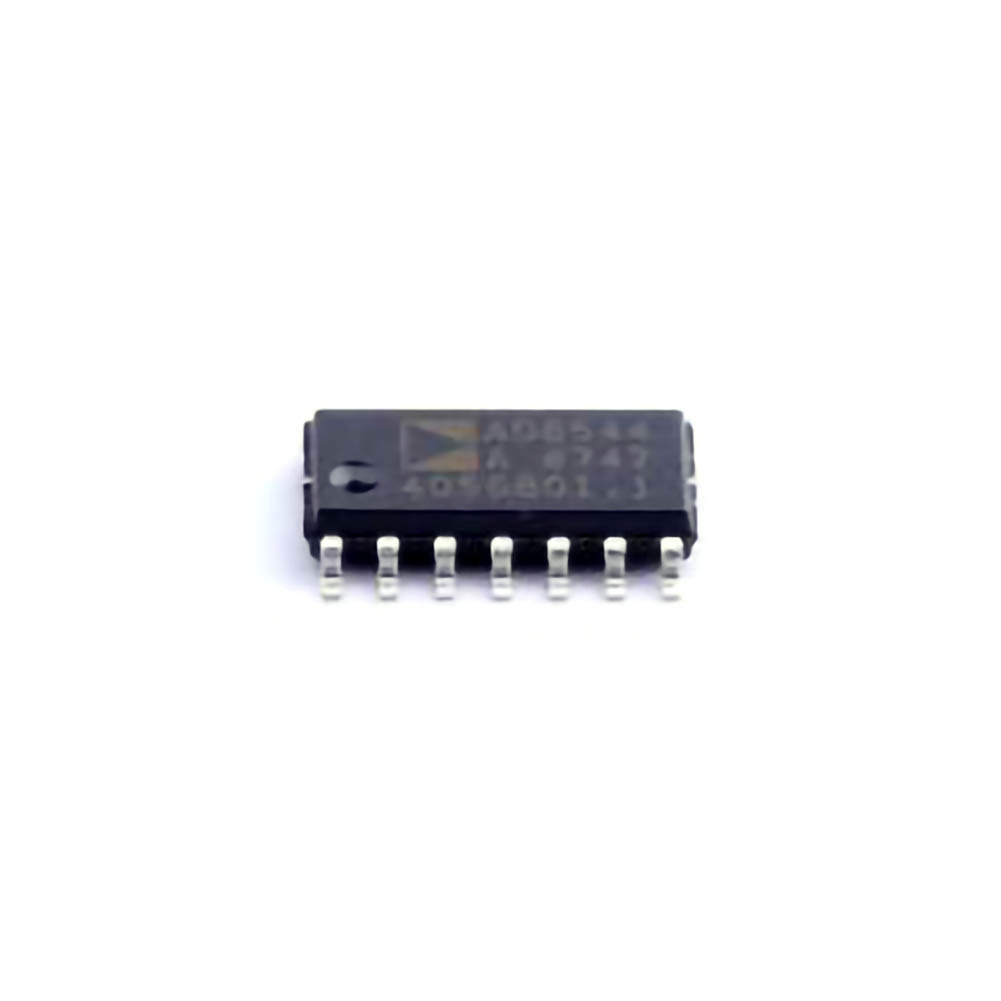

The AD8544ARZ is a precision operational amplifier widely used in various applications, from low- Power sensor circuits to complex audio and signal processing systems. However, like any component, it can present challenges during integration or use. This article will explore common troubleshooting issues with the AD8544ARZ and provide actionable solutions to help engineers and technicians effectively resolve these problems.

AD8544ARZ, troubleshooting, solutions, operational amplifier, precision op-amp, circuit design, low-power, audio circuits, common issues, amplifier performance

Introduction to the AD8544ARZ and Common Troubleshooting Issues

The AD8544ARZ is a precision, low-power, single operational amplifier (op-amp) designed for applications requiring accurate, stable, and reliable performance. Whether you're designing sensor interface s, filters , or high-impedance inputs, the AD8544ARZ offers excellent precision with low offset voltage and low noise.

However, even the most reliable components can sometimes exhibit issues in real-world applications. Engineers and technicians may face challenges in the form of malfunctioning circuits, distorted signals, or unexpected behavior. Understanding the root causes of these issues and knowing how to troubleshoot them is crucial for maintaining the integrity of the design.

1.1 Understanding the AD8544ARZ Specifications and Usage

Before diving into troubleshooting, it’s important to understand the key specifications of the AD8544ARZ and how they impact its operation in various circuit designs.

Low Input Bias Current: The AD8544ARZ is designed with a very low input bias current, typically around 1 pA. This makes it ideal for use in high-impedance circuits.

Low Offset Voltage: The amplifier features an ultra-low offset voltage (around 25 µV max), which ensures accurate signal amplification and minimizes the need for external calibration.

Rail-to-Rail Output: It has a rail-to-rail output stage, which allows it to drive output voltages very close to the supply rails, making it suitable for low-voltage systems.

Wide Operating Voltage Range: The AD8544ARZ operates within a wide range of supply voltages, from 1.8V to 5.5V, which provides flexibility in battery-powered and low-voltage systems.

Despite these impressive specifications, users often encounter problems that stem from incorrect usage, improper design considerations, or external factors such as noise or thermal effects.

1.2 Common Issues with the AD8544ARZ

While the AD8544ARZ is known for its reliability and precision, there are several issues that users commonly face. These include:

Offset Voltage Drifting:

In circuits where accuracy is paramount, offset voltage drift can become a significant concern. Variations in temperature or external conditions can lead to the amplifier’s offset voltage drifting from its initial value, causing errors in signal processing.

Excessive Power Consumption:

Even though the AD8544ARZ is designed for low-power operation, incorrect circuit design, such as driving too high a load or applying excessive supply voltage, can cause power consumption to exceed the typical limits.

Signal Distortion:

In high-speed or high-gain configurations, users may experience signal distortion or instability. This can result from insufficient supply decoupling or improper PCB layout, especially when dealing with high-frequency signals.

Output Saturation:

Another common issue is the amplifier output saturating at the supply rails. This occurs when the input voltage exceeds the common-mode range, resulting in non-linear behavior.

Inadequate Noise Immunity:

The AD8544ARZ is relatively noise-resistant, but poor layout practices, such as inadequate grounding or improper shielding, can introduce noise that disrupts the amplifier’s performance, especially in sensitive applications.

1.3 General Troubleshooting Strategies

When troubleshooting issues with the AD8544ARZ, there are several general strategies you can follow:

Check the Power Supply:

Always ensure that the power supply is stable and within the recommended voltage range (1.8V to 5.5V). Voltage fluctuations, excessive ripple, or an inadequate current supply can lead to malfunctioning.

Verify the Input Signal:

Double-check the input signal to ensure it is within the proper voltage range and the signal integrity is maintained. Signal distortion can often be traced back to poor input conditioning.

Inspect PCB Layout:

The physical layout of your PCB plays a critical role in ensuring optimal performance. Keep the feedback loop short, use proper decoupling capacitor s close to the op-amp pins, and ensure solid grounding to reduce noise and unwanted interference.

Utilize Proper Load Driving:

Ensure that the AD8544ARZ is not asked to drive a load that is too low in impedance. The AD8544ARZ is not suitable for heavy load driving without additional circuitry.

By following these guidelines, you can mitigate many common problems with the AD8544ARZ and ensure a smooth and reliable operation in your designs.

Specific Troubleshooting Solutions for the AD8544ARZ

Now that we’ve covered some of the general troubleshooting strategies, let’s take a deeper look at specific issues that may arise when using the AD8544ARZ and how to address them.

2.1 Solving Offset Voltage Drifting

As mentioned in Part 1, the offset voltage of the AD8544ARZ can drift under certain conditions, particularly due to temperature variations. This issue is most prominent in precision applications where even small voltage offsets can lead to significant errors.

Solution:

To reduce or eliminate the effects of offset voltage drift, consider the following approaches:

Use External Compensation: One effective method is to use external circuitry, such as a trimming potentiometer or a reference voltage source, to calibrate the offset voltage manually. This helps correct any initial offset and stabilize the output.

Thermal Compensation: Ensure that the AD8544ARZ is properly thermally managed within the system. Use thermal vias and a well-designed heat sink to dissipate heat. This helps prevent thermal drift from affecting the op-amp’s performance.

Apply a Low-Pass Filter: If the offset drift is being caused by external noise or fluctuating environmental factors, using a low-pass filter on the input can help reduce the impact of these variations.

2.2 Managing Excessive Power Consumption

In certain applications, especially battery-powered systems, excessive power consumption can lead to shorter operational life and inefficiencies. While the AD8544ARZ is designed to be energy-efficient, poor circuit design choices can still lead to higher-than-expected current draw.

Solution:

Here’s how you can manage power consumption effectively:

Check the Supply Voltage: Always ensure that the supply voltage is within the recommended range for the AD8544ARZ. Applying a higher voltage than necessary can lead to increased power dissipation.

Optimize Load Impedance: The AD8544ARZ is designed for driving high-impedance loads. Attempting to drive low-impedance loads will result in increased power consumption and may even cause the op-amp to overheat.

Use Low Power Modes: If your design permits, consider using low-power modes available in other op-amps or integrate sleep-mode circuitry into your design to reduce power usage during inactive periods.

2.3 Eliminating Signal Distortion

Signal distortion in op-amp circuits can occur due to several factors, including improper feedback network design, poor power decoupling, and inadequate PCB layout.

Solution:

To prevent signal distortion, consider the following actions:

Improve Decoupling: Place decoupling Capacitors close to the power pins of the op-amp. Use both a large-value electrolytic capacitor (e.g., 10 µF) and a small ceramic capacitor (e.g., 0.1 µF) to cover a wide range of frequencies.

Use Proper Feedback Network Design: Ensure that the feedback resistor network is properly dimensioned to achieve the desired gain without introducing instability. Use resistors with low tolerance and check that the feedback path is short and shielded from noise sources.

High-Frequency Stability: For high-frequency applications, ensure that your layout minimizes the length of the signal path and utilizes ground planes to reduce parasitic inductance and capacitance, which can contribute to signal distortion.

2.4 Resolving Output Saturation

Output saturation happens when the input signal exceeds the common-mode voltage range of the op-amp, leading to clipping or rail-to-rail output saturation.

Solution:

To resolve this issue:

Check Input Voltage Range: Ensure that your input signal stays within the common-mode voltage range of the AD8544ARZ. The common-mode input voltage should typically be between (Vss + 0.3V) and (Vdd - 0.3V).

Use Proper Clamping: In circuits where the input signal could exceed the common-mode range, consider using clamping diodes or zener diodes to protect the op-amp from input voltage excursions.

2.5 Improving Noise Immunity

The AD8544ARZ is relatively immune to noise, but improper PCB design or external interference can still introduce noise into the signal path.

Solution:

To minimize noise issues, follow these steps:

Grounding: Establish a solid ground plane in your PCB design. Use a star grounding technique where all ground connections converge at a single point to avoid ground loops.

Shielding: If noise interference is significant, consider using shielding techniques, such as placing the op-amp circuit in a metal enclosure to shield it from electromagnetic interference ( EMI ).

Use Bypass Capacitors: Place bypass capacitors close to the power supply pins of the op-amp to filter out any high-frequency noise that might be present on the supply rails.

By implementing these troubleshooting techniques, you can overcome common issues with the AD8544ARZ and ensure that your designs achieve optimal performance. Whether you're working on audio circuits, sensor interfaces, or precision instrumentation, the AD8544ARZ can offer reliable and accurate results when used correctly.
