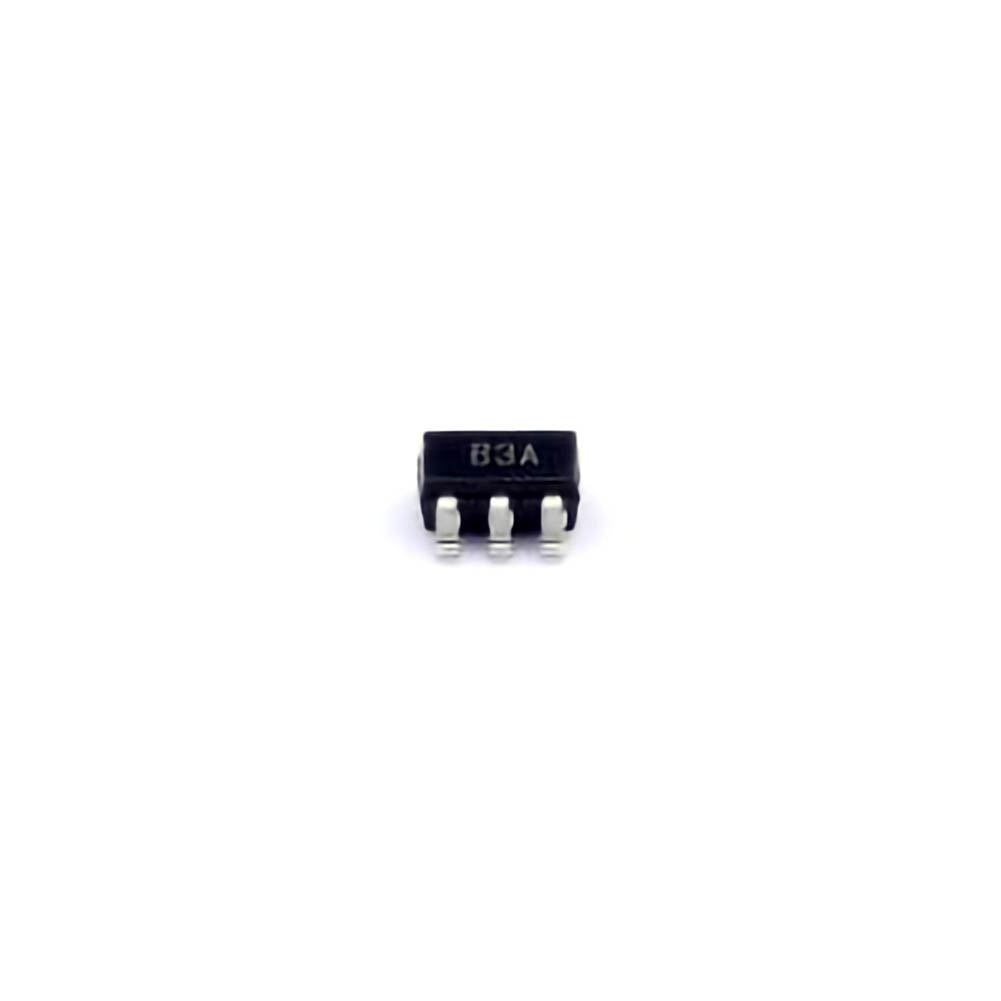

Introduction to AD8605ARTZ-REEL7 and its Low-Noise Capabilities

In the world of precision analog electronics, low-noise operational Amplifiers (op-amps) play a crucial role in ensuring that signal integrity is preserved throughout various processing stages. Among these, the AD8605ARTZ-REEL7 stands out as one of the pr EMI er choices for low-noise signal amplification circuits. Known for its remarkable performance in applications demanding minimal noise, the AD8605ARTZ-REEL7 is an excellent choice for engineers who are looking to build high-precision, low-distortion systems.

The Need for Low-Noise Amplification

In numerous electronic systems, from medical devices to Audio equipment, maintaining a high signal-to-noise ratio (SNR) is critical. Noise can originate from various sources, including thermal fluctuations, Power supply variations, and even electromagnetic interference (EMI). When dealing with weak signals, such as sensor outputs or audio signals, any additional noise can significantly degrade the performance of the system. Therefore, selecting the right amplifier that minimizes noise is paramount to achieving the desired accuracy and performance.

The AD8605ARTZ-REEL7 is specifically designed to tackle this challenge. It is a precision op-amp featuring ultra-low input offset voltage, low input bias currents, and low noise density. These characteristics are essential for applications that require high accuracy and reliability.

Key Features of AD8605ARTZ-REEL7

The AD8605ARTZ-REEL7 is part of Analog Devices' family of low-noise op-amps and comes with several features that make it ideal for sensitive signal amplification tasks:

Low Input Voltage Noise: The device offers a voltage noise density as low as 0.25 nV/√Hz at 1 kHz, making it highly effective for minimizing noise in high-precision applications.

Low Input Offset Voltage: With an input offset voltage as low as 50 µV, the AD8605ARTZ-REEL7 ensures that small signals are amplified without introducing significant distortion due to offset voltage.

High Open-Loop Gain: The op-amp provides a high open-loop gain (typically 100 dB), allowing for greater precision in signal amplification, especially in low-level signal applications.

Low Bias Current: The low input bias current (typically 1 pA) reduces the potential for drift in the output signal, especially in high-impedance applications.

Wide Supply Voltage Range: Operating within a supply voltage range of ±2.5 V to ±18 V, the AD8605ARTZ-REEL7 is versatile and can be used in a wide range of circuit designs.

These features combined with its rail-to-rail output, high slew rate, and low total harmonic distortion (THD) make the AD8605ARTZ-REEL7 an ideal choice for building ultra-low-noise Amplifiers that require high linearity and precision.

Applications in Low-Noise Amplifiers

Low-noise op-amps like the AD8605ARTZ-REEL7 are used in a variety of signal processing applications where high fidelity and minimal interference are crucial. Some common applications include:

Audio Amplifiers: For high-quality sound systems where noise can degrade the audio experience.

Precision Measurement Systems: In scientific instruments such as oscilloscopes, spectrum analyzers, and sensors.

Medical Equipment: In ECG or EEG systems where tiny bioelectric signals must be amplified without introducing any artifacts.

Communication Systems: For improving signal integrity in wireless and wired communication systems.

With its outstanding low-noise performance, the AD8605ARTZ-REEL7 is ideally suited for these demanding applications.

Design Considerations for Low-Noise Signal Amplifier Circuits Using AD8605ARTZ-REEL7

While selecting the right op-amp is essential, the design of the surrounding circuitry is just as important when optimizing for low-noise performance. In this section, we will look at practical design considerations to get the most out of the AD8605ARTZ-REEL7 when building low-noise signal amplifiers.

Power Supply Design

One of the most critical factors affecting the performance of low-noise amplifiers is the quality of the power supply. Even though the AD8605ARTZ-REEL7 features low noise and high precision, any fluctuations or noise from the power supply will directly impact the op-amp’s performance. For this reason, it is crucial to use a clean and stable power supply.

Decoupling capacitor s: Place decoupling capacitors as close as possible to the op-amp’s power supply pins to filter out high-frequency noise. Typically, a combination of a large (10 µF to 100 µF) and a small (0.1 µF to 1 µF) capacitor is used.

Low-Noise Voltage Regulators : Consider using low-noise voltage regulators to power the AD8605ARTZ-REEL7. These regulators help ensure that the op-amp receives a stable supply voltage free from ripple or transient noise.

PCB Layout and Grounding

The layout of the printed circuit board (PCB) is crucial in minimizing noise. Noise can easily couple into the signal path through improper layout, so careful consideration must be given to the routing of traces and the grounding scheme.

Keep Signal Paths Short and Direct: Minimize the length of the signal path to reduce the potential for noise pickup. If possible, route the signal path between the input and output pins of the op-amp in a straight line.

Use a Ground Plane: A solid ground plane helps in reducing EMI and provides a low-impedance path for return currents, reducing noise coupling between different parts of the circuit.

Separate Analog and Digital Grounds: If your circuit includes digital components, make sure to separate the analog and digital grounds to prevent digital switching noise from affecting the analog signals.

Signal Filtering

In addition to the op-amp’s inherent noise-reduction capabilities, filtering can further enhance the overall signal quality in a low-noise amplifier circuit. Implementing active or passive filters at the input and output stages can help to remove unwanted high-frequency noise or interference.

Low-Pass Filtering: Adding a low-pass filter at the input can help reject high-frequency noise before it reaches the op-amp. The cut-off frequency of the filter should be selected based on the signal bandwidth of interest.

RC Filters: Simple resistor-capacitor (RC) filters can be used in combination with the op-amp to further reduce noise, especially in high-frequency applications.

Feedback Network Design

The feedback network plays a significant role in determining the overall noise performance of an amplifier. Properly selecting Resistors and other components in the feedback loop can help minimize noise contributions.

Use Low-Noise Resistors: Resistors themselves contribute to noise, particularly thermal noise. When selecting resistors for the feedback network, use low-noise, high-quality resistors with minimal temperature coefficients.

Optimize Feedback Resistor Values: The values of the feedback resistors should be chosen to balance the noise performance and the desired gain. Higher resistance values can contribute to increased noise, so it is essential to keep them low while achieving the required gain.

Thermal Management

Thermal noise is a fundamental source of noise in any amplifier, and it is important to manage the operating temperature of the AD8605ARTZ-REEL7 to minimize this effect. The device is capable of operating at a wide range of temperatures, but keeping the temperature stable can help maintain optimal performance.

Heat Sinks: In high-power applications, consider using heat sinks or placing the op-amp in a thermally controlled environment.

Low-Noise Enclosures: If the amplifier is part of a system exposed to external electromagnetic interference (EMI), a well-designed shielded enclosure can help protect the circuit from unwanted noise sources.

Final Considerations

The AD8605ARTZ-REEL7 is a remarkable low-noise op-amp that is ideal for precision signal amplification. By taking care to optimize the power supply, PCB layout, feedback network, and thermal management, engineers can unlock its full potential in a wide range of sensitive applications. Whether you're designing audio equipment, medical instruments, or communication systems, the AD8605ARTZ-REEL7 provides the accuracy and noise performance needed to achieve high-quality results.

By paying attention to every detail—from power supply decoupling to resistor selection and signal path routing—you can create circuits that are not only low-noise but also reliable and efficient. This makes the AD8605ARTZ-REEL7 a versatile and indispensable component in modern analog circuit design.
