Introduction to LM393 Dual Voltage comparator and Its Role in Voltage Monitoring

In modern electronics, voltage stability is paramount for the proper operation of circuits. Fluctuations in voltage can cause damage to sensitive components, leading to system failure or malfunctions. To mitigate these risks, voltage monitoring and protection circuits are often incorporated into designs, ensuring that voltage levels remain within safe operating limits. One essential component that plays a crucial role in these circuits is the LM393 dual voltage comparator.

The LM393 is a versatile and reliable low- Power dual comparator, commonly used for monitoring and protection in a wide range of electronic applications. Its dual comparator design allows for the monitoring of two separate voltage levels simultaneously, making it an ideal choice for applications requiring the comparison of multiple voltages for safety and efficiency.

What is the LM393?

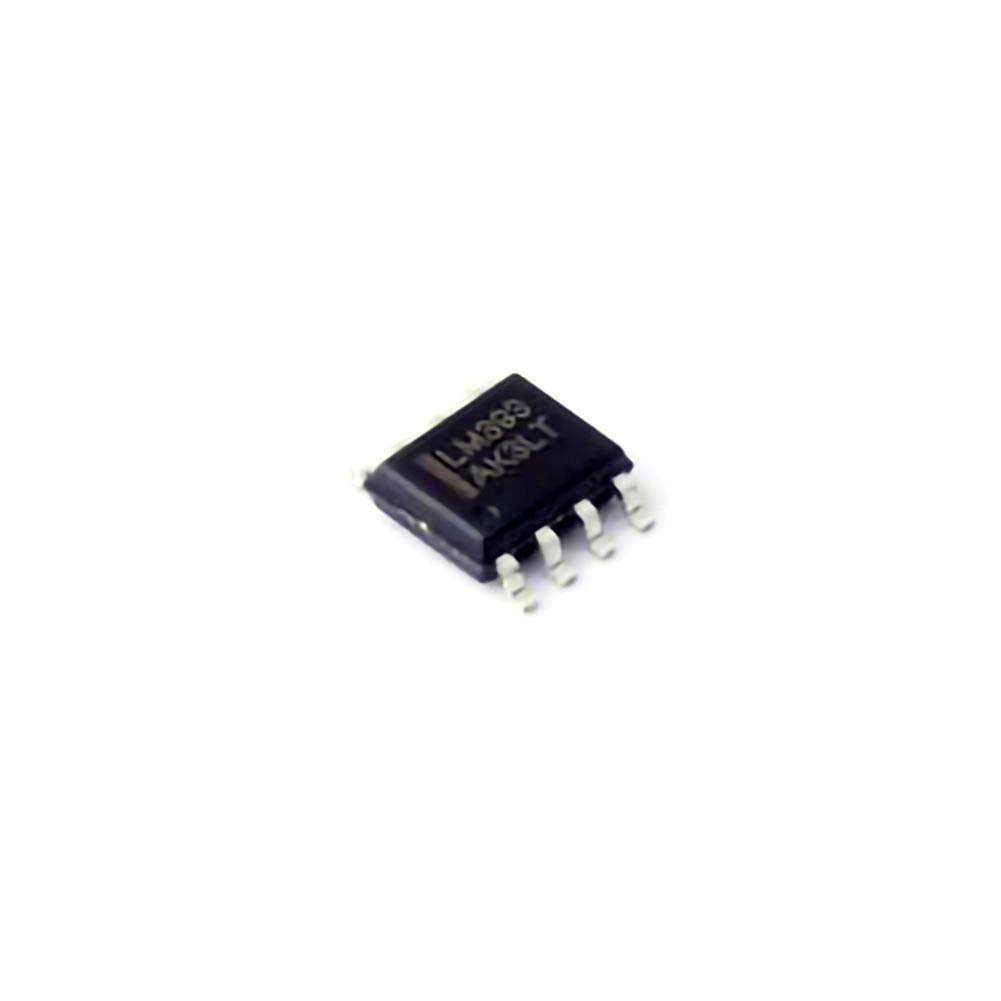

The LM393 is a dual comparator IC that includes two independent Comparators in a single package. It is typically used for detecting changes in voltage levels and generating a corresponding output signal. The device operates with a single supply voltage and has an open-collector output, which means it can interface easily with various logic circuits and other components.

Compared to traditional operational amplifiers, Comparators like the LM393 are designed specifically to compare two voltages and provide a high or low output based on the comparison. When the input voltage exceeds a reference value, the comparator switches its output state. This ability to compare voltages with high precision is a critical feature in voltage monitoring and protection applications.

Key Features of LM393

Dual Comparators: The LM393 features two independent comparators, allowing for simultaneous monitoring of two voltage levels. This makes it suitable for more complex protection systems that require the tracking of multiple signals.

Low Power Consumption: The IC operates with a low supply current, making it ideal for battery-powered or energy-sensitive applications.

Open-Collector Output: The open-collector output allows for easy interfacing with external circuits, providing flexibility in circuit design.

Wide Input Voltage Range: The LM393 can operate with input voltages ranging from 0 to 36V, which is beneficial for a variety of voltage monitoring applications.

Fast Response Time: The LM393 has a fast response time to voltage changes, which is crucial for real-time monitoring and protection of sensitive equipment.

Voltage Monitoring and Protection Circuits

Voltage monitoring and protection circuits are designed to ensure that the voltage supplied to electronic systems does not exceed or fall below specified thresholds. These circuits are critical in preventing damage caused by overvoltage, undervoltage, or voltage spikes.

One of the most common uses of the LM393 comparator is in overvoltage and undervoltage protection circuits. In these applications, the LM393 can monitor the supply voltage and compare it against preset reference voltages. If the supply voltage goes beyond or below the threshold, the comparator triggers an output signal that can activate protection mechanisms such as shutdown, warning lights, or alarms.

For instance, in an overvoltage protection circuit, the LM393 can be used to monitor the input voltage against a reference value. When the voltage exceeds the set threshold, the comparator can drive a transistor to disconnect the load from the power supply, preventing damage to sensitive components.

Similarly, in undervoltage protection, the LM393 can ensure that the system remains operational within a safe voltage range. If the supply voltage drops below a critical value, the comparator can trigger an alert or activate a corrective action to stabilize the voltage.

Designing a Voltage Monitoring and Protection Circuit Using the LM393

Basic Design Considerations

Designing a voltage monitoring and protection circuit using the LM393 involves selecting appropriate components and setting up the correct reference voltages. Below, we discuss the essential steps in designing an effective voltage monitoring circuit with the LM393.

1. Selecting Reference Voltages

The LM393 comparator compares the input voltage to a reference voltage. In voltage monitoring circuits, this reference voltage is typically set using a voltage divider or a precision reference IC. The reference voltage must be carefully selected to match the desired protection thresholds, whether for overvoltage or undervoltage monitoring.

For example, in an overvoltage protection circuit, the reference voltage might be set to the maximum safe operating voltage of the system. If the input voltage exceeds this reference, the comparator will trigger the protection mechanism. Similarly, in undervoltage protection circuits, the reference voltage would correspond to the minimum acceptable voltage level.

2. Setting the Hysteresis for Stability

One important aspect of comparator circuits is the inclusion of hysteresis. Without hysteresis, the comparator may constantly switch its output state in response to small fluctuations around the threshold voltage, resulting in undesirable oscillations or instability.

To add hysteresis, a feedback resistor can be added from the output of the LM393 to one of its input terminals. This feedback introduces a small shift in the reference voltage when the output changes state, providing a clear threshold for voltage transitions and preventing rapid switching near the reference level.

3. Output Stage and Protection Mechanism

The LM393 provides an open-collector output, which means that external pull-up resistors are required to establish a logic high state when the comparator output is not active. This feature is beneficial because it allows the comparator to interface with a variety of digital logic devices, microcontrollers, or other circuit protection components.

In many voltage protection applications, the output of the LM393 is connected to a transistor or MOSFET, which acts as a switch for the protection mechanism. For instance, when an overvoltage condition is detected, the comparator can drive the transistor to cut off power to the sensitive circuit, thereby protecting it from damage.

Another common approach is using the LM393 to activate a relay. The relay can then disconnect the power supply or trigger an alarm or visual indicator, such as an LED , to signal a fault condition.

4. Designing the Circuit for Robustness

When designing voltage monitoring and protection circuits, it is crucial to ensure that the components are selected for their reliability and tolerance to voltage fluctuations. In particular, the reference voltage must be stable, and the comparator circuit should be capable of handling voltage spikes without false triggering or malfunction.

To improve the robustness of the circuit, additional protective components like clamping diodes and capacitor s can be added to filter noise and protect the input pins of the LM393 from high-voltage spikes. The use of a precision voltage reference IC can further enhance the accuracy of the comparator circuit.

Advantages of Using the LM393 in Voltage Protection Circuits

Cost-Effective Solution: The LM393 is a low-cost component, making it an ideal choice for cost-sensitive voltage monitoring applications.

Low Power Consumption: The low power consumption of the LM393 makes it suitable for battery-operated systems and portable devices, where energy efficiency is a key consideration.

Flexibility and Versatility: With its dual comparator configuration and open-collector output, the LM393 can be used in a wide variety of voltage protection schemes, from basic overvoltage protection to more sophisticated systems requiring multiple voltage threshold monitoring.

High Precision and Reliability: The LM393 offers precise voltage comparisons and stable operation, making it highly reliable for monitoring and protecting sensitive electronic circuits.

Conclusion

In summary, the LM393 dual voltage comparator is a powerful and versatile component for voltage monitoring and protection circuits. Its ability to compare two voltage levels simultaneously, coupled with its low power consumption and open-collector output, makes it an ideal choice for a wide range of applications, from overvoltage and undervoltage protection to real-time voltage monitoring.

By designing a circuit that incorporates appropriate reference voltages, hysteresis, and robust output mechanisms, engineers can create reliable and cost-effective voltage protection systems that safeguard sensitive electronic components. As electronic systems continue to evolve, the use of comparators like the LM393 will remain a critical element in maintaining the stability and longevity of electronic devices.
