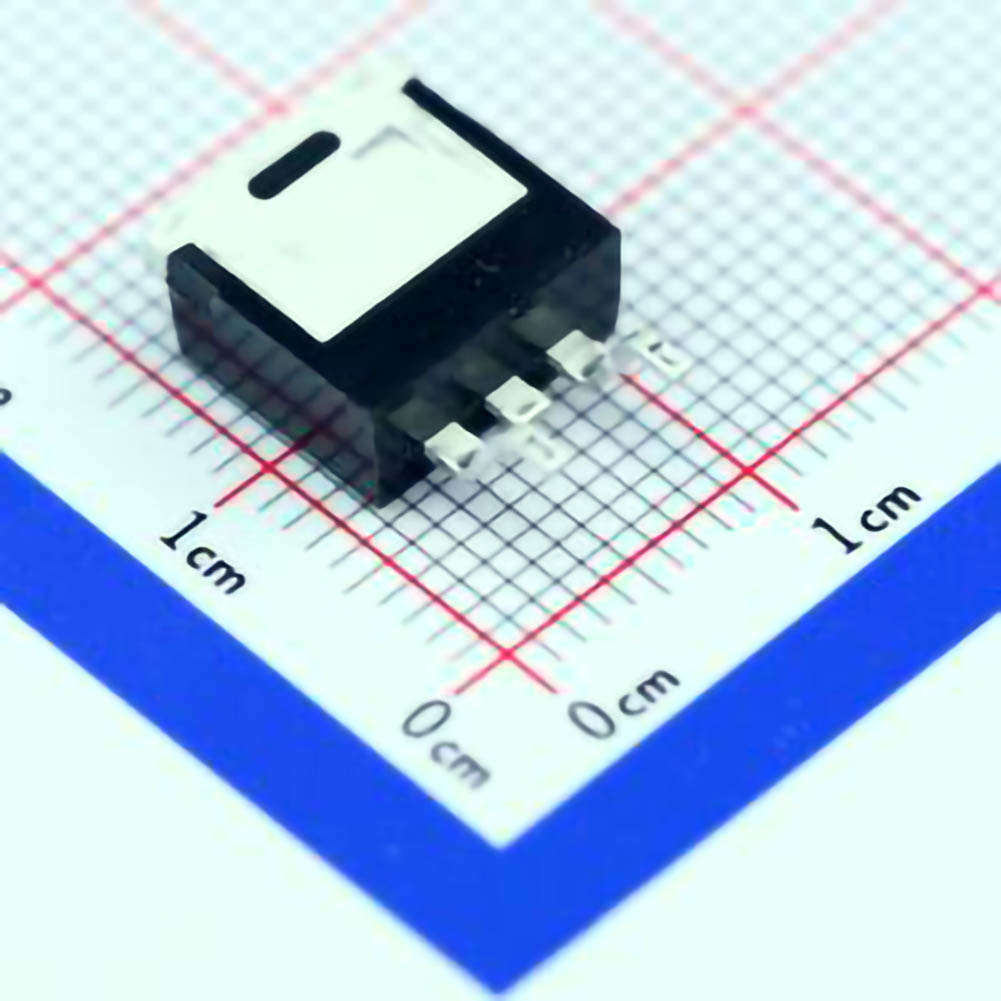

The I RF 3205STRLPBF is a powerful and widely used N-channel MOSFET that is popular in a range of applications, including power supplies, motor controllers, and audio amplification. However, like any component, it can encounter issues during operation. This article explores common troubleshooting steps and solutions to ensure your IRF3205STRLPBF performs at its best.

IRF3205 STRLPBF, troubleshooting, MOSFET, common problems, solutions, power electronics, MOSFET failure, voltage drop, gate drive issues

Understanding the IRF3205STRLPBF and Common Troubleshooting Challenges

The IRF3205STRLPBF is an N-channel MOSFET, designed for high-speed switching and low-conduction losses. It has a low RDS(on) and can handle high voltage and current, making it ideal for many power-related applications. However, like any semiconductor device, it may encounter operational issues due to various factors such as improper handling, poor circuit design, or component failure.

Before diving into troubleshooting, it's essential to understand the typical characteristics and applications of the IRF3205STRLPBF. The MOSFET is widely used in power supplies, motor controllers, automotive applications, and other high-current circuits. Its high-speed switching ability makes it crucial for efficiently controlling energy flows.

Despite its reliability, there are several common issues that may arise during the operation of this component. Below are the most frequent troubleshooting challenges and their solutions.

1. Gate Drive Issues

One of the most common causes of IRF3205STRLPBF failure is insufficient gate drive voltage. The gate of the MOSFET needs to be driven properly for the device to switch effectively. If the gate voltage is too low, the MOSFET will operate in the linear region instead of switching fully on and off. This leads to excessive heat dissipation, poor performance, and eventual failure.

Symptoms:

The MOSFET heats up quickly.

The circuit shows a significant voltage drop when the MOSFET is supposed to be conducting.

The MOSFET doesn't switch on and off as expected, causing reduced efficiency.

Solution:

Ensure that the gate drive voltage is sufficient to fully turn the MOSFET on. For the IRF3205STRLPBF, a gate drive voltage of around 10V is ideal. Lower voltages will result in poor switching performance. Additionally, ensure that the gate driver is capable of providing enough current to charge and discharge the gate capacitance quickly. If necessary, use a dedicated MOSFET driver IC to boost the gate voltage.

2. Overheating

Overheating is a frequent problem with the IRF3205STRLPBF, especially in high-current applications where the device is switching large amounts of power. High power dissipation can lead to thermal failure if the MOSFET is not properly managed.

Symptoms:

The MOSFET becomes excessively hot during operation.

Circuit performance degrades after the MOSFET reaches high temperatures.

The device may fail due to thermal stress.

Solution:

To avoid overheating, ensure that the MOSFET has adequate heat sinking and thermal management. Use a heat sink or improve the PCB layout to ensure proper heat dissipation. Additionally, check the current being switched through the MOSFET and ensure that it is within the device's rated specifications. If the current is too high, consider using a MOSFET with a higher current rating or implementing active cooling solutions.

3. Incorrect Voltage Rating

Another issue to consider when troubleshooting the IRF3205STRLPBF is the voltage rating. The device is rated for 55V, but it’s easy to overlook the potential for voltage spikes in the circuit. If the circuit exceeds this voltage, the MOSFET can be permanently damaged.

Symptoms:

The MOSFET fails completely or shows degraded performance.

The circuit fails to operate correctly, especially when the load is switched on or off.

Solution:

Ensure that the maximum voltage rating is never exceeded. Consider adding clamping diodes or other over-voltage protection devices to prevent voltage spikes from exceeding the MOSFET’s maximum Vds rating. Additionally, verify that all components in the circuit are rated appropriately for the voltage they will encounter during operation.

4. Inadequate Switching Speed

In some applications, switching speed is critical to ensure that the MOSFET operates effectively. If the switching speed is too slow, the MOSFET may spend too much time in the transition between on and off states, leading to heat generation and reduced efficiency.

Symptoms:

Slow switching transitions (rise and fall times) observed on oscilloscope.

Increased switching losses and heat generation.

Inefficient operation in high-frequency circuits.

Solution:

To improve switching speed, use a MOSFET with a lower gate charge (Qg) and ensure that the gate driver is capable of delivering sufficient current to the gate for fast switching. Proper PCB layout is also crucial—minimize trace lengths for gate connections and use wide traces to reduce resistance and inductance.

5. Current Limiting and Short Circuit Protection

A common cause of MOSFET failure is running the component into a short circuit or overcurrent condition, which can cause the device to heat up and potentially fail. When designing circuits with the IRF3205STRLPBF, it's essential to incorporate proper current-limiting features to prevent such occurrences.

Symptoms:

The MOSFET fails after short circuits or overcurrent conditions.

The circuit enters a protection mode or shuts down unexpectedly.

Solution:

To protect the MOSFET from current surges, use a current-limiting circuit or a fuse to cut off excessive current. Adding protection circuitry, such as a fast-blow fuse or an overcurrent detection circuit, will help prevent MOSFET damage from transient current spikes.

Advanced Troubleshooting Tips and Solutions for the IRF3205STRLPBF

Having addressed some of the basic troubleshooting steps in Part 1, we now move on to more advanced techniques and best practices for maintaining the IRF3205STRLPBF in optimal condition.

6. Parasitic Inductance and Capacitance Issues

The performance of the IRF3205STRLPBF can also be affected by parasitic inductance and capacitance in the circuit. These parasitics can impact the switching performance, especially in high-frequency applications. Parasitic elements can cause unwanted oscillations, leading to increased power dissipation and reduced efficiency.

Symptoms:

Ringing or oscillations on the drain or gate waveform during switching.

High-frequency noise or erratic behavior in the circuit.

Reduced switching efficiency and increased heat generation.

Solution:

Minimize parasitic inductance and capacitance by optimizing the PCB layout. Keep gate traces as short and thick as possible, and ensure proper grounding to minimize noise. Also, use snubber circuits to dampen oscillations caused by parasitics. A snubber circuit typically consists of a resistor and capacitor in series, placed across the MOSFET’s drain and source pins.

7. Improper PCB Layout

An often-overlooked factor in MOSFET performance is the layout of the PCB. An improper layout can result in increased resistance, parasitic inductance, and capacitance, all of which can degrade performance and lead to failures.

Symptoms:

Voltage spikes or ringing observed at the MOSFET’s drain and gate.

Increased heat dissipation due to excessive resistance in the circuit.

Switching performance degradation in high-speed applications.

Solution:

To optimize PCB layout for the IRF3205STRLPBF, focus on the following guidelines:

Use wide copper traces for high-current paths to minimize resistance and voltage drops.

Place decoupling capacitors as close to the MOSFET’s gate and source pins as possible to stabilize voltage.

Keep the gate trace as short as possible to reduce parasitic inductance.

Use a ground plane to ensure low-inductance ground connections, which is essential for high-speed switching.

8. Component Matching and Parasitic Effects

In some circuits, especially those involving multiple MOSFETs or other power devices, component matching becomes critical. Mismatched components can lead to unequal load sharing, causing some MOSFETs to be overstressed while others may be underutilized.

Symptoms:

Uneven heating between parallel MOSFETs.

One MOSFET fails while others operate normally.

Voltage imbalances between parallel components.

Solution:

Ensure that the IRF3205STRLPBF devices are properly matched when used in parallel configurations. If possible, select MOSFETs with similar characteristics, including threshold voltage (Vgs(th)) and gate charge. You may also need to add balancing resistors or other means of ensuring even current distribution between the components.

9. ESD (Electrostatic Discharge) Protection

Like all MOSFETs, the IRF3205STRLPBF is susceptible to electrostatic discharge (ESD), which can cause immediate or latent damage to the device. ESD events can occur during handling or during power-up and power-down sequences.

Symptoms:

Irregular or intermittent operation after handling.

The MOSFET fails without an apparent cause.

Solution:

To protect the MOSFET from ESD, handle components carefully, following proper ESD protection protocols. Use anti-static mats and wristbands during assembly and testing. In circuits, use dedicated ESD protection diodes or other methods such as transient voltage suppressors ( TVS ) to absorb and redirect harmful voltages.

10. End of Life and Failure Diagnosis

At the end of its life, the IRF3205STRLPBF may start to show signs of degradation, which can manifest as increased RDS(on), thermal runaway, or failure to switch properly. This is typically due to excessive wear from high-temperature operation or overcurrent conditions.

Symptoms:

Increased drain-source resistance (RDS(on)).

Reduced current handling capacity.

The MOSFET fails to switch on or off at the correct times.

Solution:

Regularly monitor the performance of the MOSFET during operation. If signs of degradation appear, replace the component before it fails completely. Ensure that operating conditions are within specified limits to prolong the life of the MOSFET.

In conclusion, the IRF3205STRLPBF is a robust and versatile MOSFET, but like any power component, it requires careful design, monitoring, and maintenance to avoid performance issues. By following the troubleshooting tips outlined in this article, you can ensure that your circuits remain efficient and reliable, and your MOSFET operates within its ideal performance range. Always keep the MOSFET’s specifications in mind, optimize your circuit design, and implement protective measures to extend the life and functionality of the IRF3205STRLPBF.
