Introduction and Common Issues with MCF5282CVF66 Microcontroller

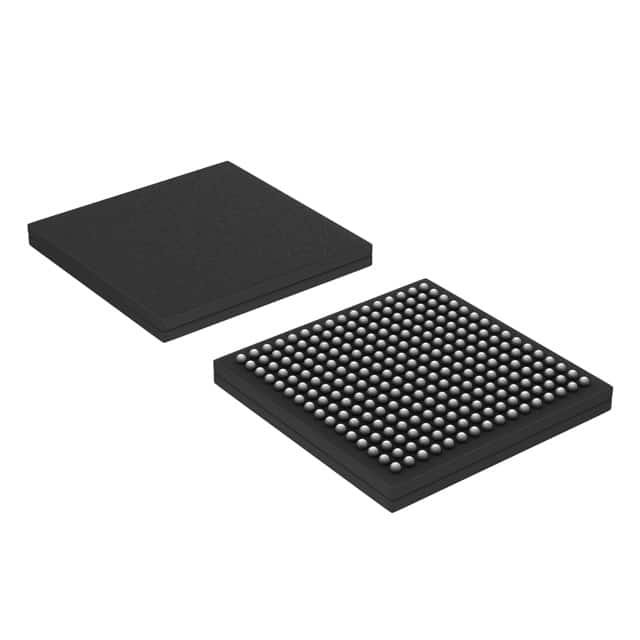

The MCF5282CVF66 is a Power ful microcontroller from Freescale S EMI conductor (now NXP), renowned for its performance in embedded applications. This versatile 32-bit processor is based on the ColdFire V2 core, offering a rich set of features such as multiple Communication interface s, high-speed processing, and low power consumption. It is widely used in industrial automation, automotive, consumer electronics, and various embedded systems.

However, like any complex microcontroller, engineers may encounter issues during development, testing, or deployment. This article aims to walk you through the most common problems associated with the MCF5282CVF66, along with their possible causes and solutions. By the end of this guide, you’ll be equipped with practical knowledge to troubleshoot and resolve issues efficiently, improving the reliability and performance of your embedded systems.

1. Boot Issues: No Response from the Microcontroller

One of the most frequent issues encountered with the MCF5282CVF66 is when the microcontroller fails to boot or is unresponsive upon power-up. This issue can occur due to several reasons, ranging from incorrect configurations to hardware failures.

Possible Causes:

Incorrect Reset Configuration: The MCF5282CVF66 requires a proper reset signal to start. If the reset line is held low or improperly configured, the processor may not initiate its boot process.

Faulty Power Supply: Insufficient or unstable power supply can cause the microcontroller to fail to start. Voltage fluctuations or inadequate current supply can prevent the chip from operating.

Corrupted Bootloader: A corrupted bootloader or improper flashing of the firmware could prevent the microcontroller from properly initializing.

Solutions:

Check Reset Pin and Configuration: Ensure that the RESET pin is correctly pulled high after power is applied. Verify the bootloader settings in the microcontroller’s startup configuration.

Verify Power Supply: Use an oscilloscope to check for stable voltage levels at the power pins (3.3V or 5V depending on your setup). Make sure the power supply can deliver sufficient current for all connected peripherals.

Reflash the Bootloader: If the bootloader is corrupted, use a JTAG programmer or serial bootloader to reflash the correct firmware into the microcontroller. Make sure that the flash Memory is not damaged.

2. Communication Failures: Issues with UART, SPI, and I2C

The MCF5282CVF66 supports multiple communication protocols, including UART, SPI, and I2C, which are often used to interface with sensors, actuators, and other devices. Communication failures are common and can stem from configuration issues or signal integrity problems.

Possible Causes:

Incorrect Baud Rate or Settings (UART): When using UART, if the baud rate or other settings (such as parity, stop bits) do not match the peripheral device, communication can fail.

Incorrect SPI/I2C Configuration: Incorrect clock polarity, phase, or bit order can lead to data corruption or failure in SPI or I2C communication.

Electrical Noise: External noise or poor PCB layout can cause signal degradation, leading to communication errors, particularly in high-speed communication protocols like SPI.

Solutions:

Double-check Communication Settings: Review the configuration of your UART, SPI, or I2C peripherals. Ensure that all parameters (baud rate, data bits, stop bits for UART; clock polarity and phase for SPI) match those of the connected devices.

Test with Known Good Devices: To rule out faulty peripherals, test communication with known working devices or use a loopback test for UART.

Improve Signal Integrity: For high-speed communication, ensure that the PCB layout minimizes trace lengths and minimizes electromagnetic interference (EMI). Use pull-up resistors for I2C lines and proper termination for high-speed signals.

3. Watchdog Timer Issues

The watchdog timer is a critical feature in embedded systems, used to reset the system in case of a software hang or failure. However, improper configuration or failure to reset the watchdog timer in software can lead to unexpected resets.

Possible Causes:

Watchdog Timer Not Resetting: If your software fails to reset the watchdog timer periodically, the microcontroller will initiate a reset.

Incorrect Watchdog Timeout Value: An incorrectly configured timeout value can trigger frequent resets or delays in the system, affecting performance.

Solutions:

Review Watchdog Implementation: Ensure that the watchdog timer is properly reset at the correct intervals in the firmware. Add logging to verify that the watchdog is being serviced as expected.

Tune Timeout Value: Adjust the watchdog timeout value to a reasonable period, based on the application’s needs. A very short timeout could lead to unnecessary resets, while a long timeout could delay the detection of a software failure.

Advanced Troubleshooting and Diagnostic Tools

While the previous section covered common issues, advanced troubleshooting may involve deeper analysis and diagnostics to resolve complex or intermittent problems. This section explores advanced methods and tools to aid in troubleshooting the MCF5282CVF66 microcontroller.

4. Debugging with JTAG and SWD

One of the most powerful tools available for debugging the MCF5282CVF66 is the JTAG (Joint Test Action Group) interface, which allows for real-time debugging, memory inspection, and register-level access. The Serial Wire Debug (SWD) interface is another debugging option, offering a more compact and efficient method for debugging.

Possible Causes:

No Debugger Connection: The JTAG or SWD interface may not be properly initialized, or there could be a physical connection issue between the debugger and the microcontroller.

Firmware Configuration for Debugging: If the firmware disables the JTAG or SWD interface, debugging becomes impossible.

Solutions:

Check JTAG/SWD Connection: Ensure that the debugger is properly connected to the microcontroller's JTAG or SWD pins. Use an oscilloscope to verify signal integrity on these pins.

Enable Debug Interface in Firmware: Verify that the firmware has not disabled the JTAG/SWD interface. You may need to re-enable it through the bootloader or through a firmware update.

5. Memory Issues: RAM and Flash Failures

Memory-related issues can cause a wide range of problems in embedded systems. The MCF5282CVF66 has both RAM and flash memory, and failures in either can lead to system crashes, data corruption, or other unexpected behaviors.

Possible Causes:

Corrupted Flash Memory: Flash memory may become corrupted during the programming process, especially if power is lost during flashing.

Faulty RAM: Defective RAM or unstable power supply to the RAM can cause data loss or crashes in the application.

Stack Overflow or Heap Corruption: Insufficient stack size or heap fragmentation can cause crashes or unpredictable behavior in software.

Solutions:

Perform Flash Integrity Check: Use built-in diagnostics or third-party tools to verify the integrity of the flash memory. If necessary, reflash the memory to resolve corruption.

Test RAM with Patterns: You can use memory testing algorithms such as the March Test to check for faults in RAM. This method writes and reads patterns to the memory to detect errors.

Increase Stack and Heap Sizes: If the system is prone to stack overflow or heap corruption, consider increasing the stack size and optimizing memory allocation to avoid overflows.

6. Power Management and Low-Power Mode Issues

The MCF5282CVF66 microcontroller includes advanced power Management features to optimize energy consumption in embedded systems. However, incorrect power management settings can lead to unexpected behaviors or power-related failures.

Possible Causes:

Incorrect Low-Power Mode Transitions: The microcontroller may not be transitioning between power modes properly, leading to increased power consumption or failure to wake from low-power states.

Inadequate Power Supply for Low Power Mode: If the power supply is not stable or capable of maintaining the required voltage during low-power operation, the system may not wake up from low-power modes.

Solutions:

Check Power Management Settings: Review the power management configurations in your firmware, including low-power mode transitions and wake-up conditions. Ensure that all registers related to power management are correctly configured.

Test in Normal Mode: If the microcontroller behaves erratically in low-power mode, test the system in normal operation to ensure that the issue is specifically related to power management.

Ensure Stable Power Supply: Verify that the power supply is stable and provides sufficient voltage for the microcontroller to operate reliably in all power modes.

Conclusion

The MCF5282CVF66 is a robust and versatile microcontroller, but like all complex devices, it can present challenges during development and deployment. By systematically addressing common issues like boot failures, communication problems, watchdog timer malfunctions, and memory errors, you can ensure a smooth and reliable development process. Advanced debugging tools like JTAG and SWD, coupled with memory and power management diagnostics, allow for in-depth troubleshooting when facing more complex problems.

Armed with this guide, engineers can optimize the performance of their systems and resolve issues with confidence, ensuring that the MCF5282CVF66-based applications run efficiently and reliably in the field.
