The MS51FB9AE is a high-performance microcontroller commonly used in embedded systems. In this guide, we will explore the common troubleshooting issues and effective solutions that can help you tackle problems with the MS51FB9AE. Whether you're an experienced developer or a beginner, this article provides practical advice to ensure the success of your projects.

MS51FB9AE, troubleshooting, microcontroller, embedded systems, solutions, common issues, firmware, debugging, development board

Introduction to MS51FB9AE and Common Troubleshooting Issues

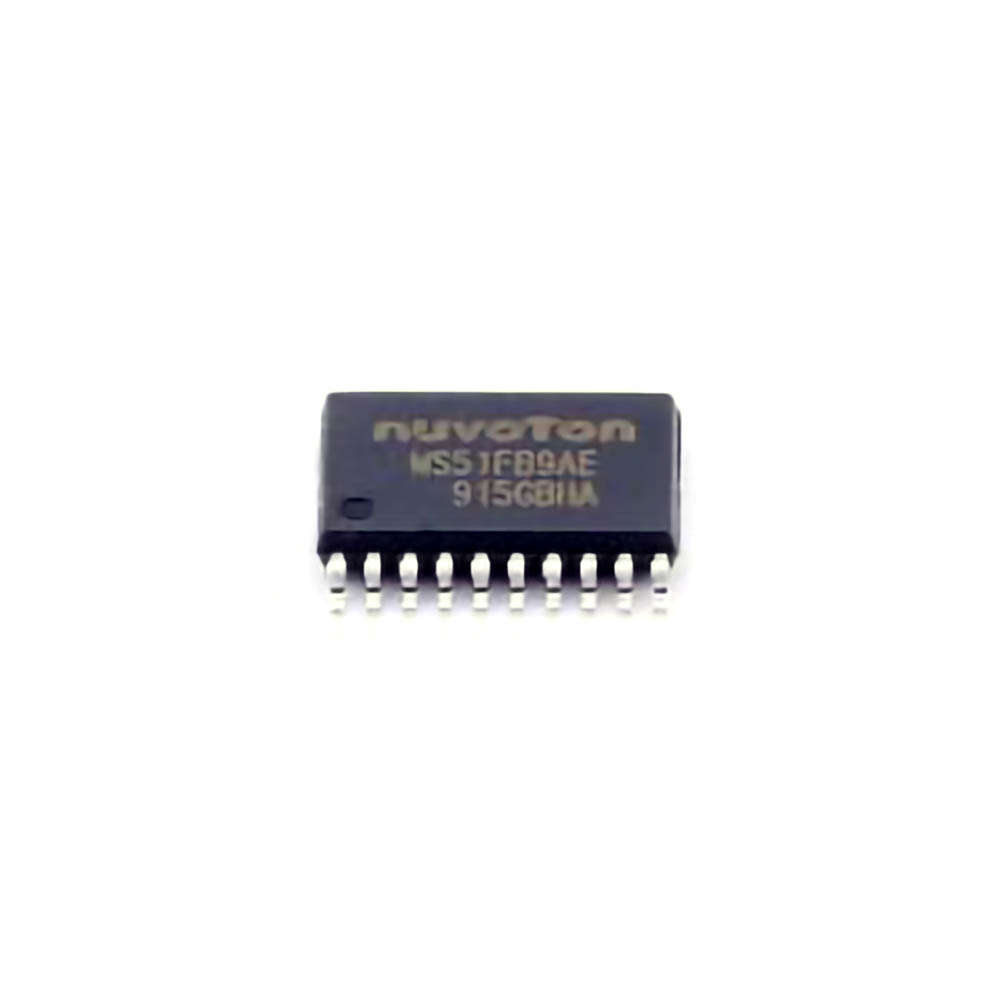

The MS51FB9AE is a highly efficient 8-bit microcontroller designed by Nuvoton Technology. With its advanced features, low Power consumption, and ease of integration, it has become a popular choice for embedded system applications. However, like all complex electronics, developers and engineers often encounter issues during development, deployment, or operation. In this article, we will discuss the most common problems faced by users of the MS51FB9AE and provide practical solutions to resolve them.

1. Power Supply Issues

One of the most frequent problems when working with microcontrollers like the MS51FB9AE is power supply failure. If the device isn't receiving stable voltage or is underpowered, it may lead to erratic behavior or even complete failure to boot.

Symptoms:

The microcontroller does not power on.

The system intermittently resets.

Inconsistent performance or crashes during operation.

Solutions:

Check the Voltage Level: Ensure that the power supply voltage meets the specifications (typically 3.3V or 5V, depending on the variant).

Verify the Power Rails: Use an oscilloscope or multimeter to verify that the power rails are stable and free from noise.

Stabilize with capacitor s: Add decoupling capacitors close to the power pins of the MS51FB9AE. A typical value might be 0.1 µF for high-frequency noise filtering.

Inspect the Power Source: If you are using batteries, ensure they are sufficiently charged or replaced. Similarly, for external power adapters, confirm they deliver consistent voltage.

2. Incorrect Pin Configuration or Miswiring

Pin configuration is crucial for the MS51FB9AE to work as expected. Misconfiguring pins for specific functions (e.g., input, output, analog, digital) can cause malfunctions or unpredictable behavior.

Symptoms:

Unresponsive inputs or outputs.

Communication issues between the microcontroller and peripheral devices.

Solutions:

Refer to the Datasheet: Always check the datasheet for the correct pinout and function assignment. The MS51FB9AE has multiple alternate functions for each pin, so it's essential to map these correctly.

Review Your Wiring: Double-check all external connections, especially for I/O pins, ensuring they are connected as required for your application.

Use the GPIO Utility: Nuvoton provides utilities to help configure the General-Purpose Input/Output (GPIO) pins. Leverage this tool to confirm your pin configuration.

3. Firmware Issues and Debugging

Firmware bugs are a common cause of microcontroller failure, especially in complex embedded systems. Incorrect code or bugs in the firmware can prevent the MS51FB9AE from performing as intended.

Symptoms:

The system behaves unpredictably or stops functioning altogether.

Certain features or peripherals do not work as expected.

Solutions:

Check for Syntax Errors and Compilation Warnings: Ensure that your code is free of errors and compile it with strict warnings enab LED to catch potential problems early.

Use a Debugger: A hardware debugger, such as the Nuvoton Nu-Link, can be a valuable tool to identify where your firmware is failing. Set breakpoints and inspect register values to trace errors.

Validate the Bootloader: If the microcontroller has a custom bootloader, ensure it functions correctly. A corrupt bootloader can prevent proper firmware loading.

Simplify the Code: Reduce your code to the minimum required to test the system. Start by focusing on basic functionality and slowly reintroduce complexity, which can help isolate the problem.

4. Clock Configuration and Timing Issues

Timing problems can manifest if the MS51FB9AE's clock settings are incorrect. This can affect peripheral communication, ADC conversions, and PWM output, leading to errors in performance.

Symptoms:

Inaccurate timing or unexpected delays.

Communication failure in time-dependent protocols (e.g., UART, SPI).

Solutions:

Confirm the Clock Source: The MS51FB9AE supports multiple clock sources, including internal and external oscillators. Verify that the chosen clock source is stable and operating correctly.

Set Up the Clock Correctly: Using the appropriate clock settings, especially the prescalers and divisors, ensures accurate timing. This can be done through the on-chip registers or configuration utilities.

Use an External Oscillator: If the internal oscillator is not stable enough for your application, consider using an external crystal or oscillator for more reliable clock generation.

Advanced Troubleshooting Tips and Additional Solutions

In the second part of this guide, we dive deeper into more advanced troubleshooting methods and provide solutions to some complex challenges that developers might encounter when working with the MS51FB9AE.

5. Communication Failures (UART/SPI/I2C)

When interfacing with other devices, communication protocols like UART, SPI, and I2C are often used. However, communication failures are common, especially when misconfigured.

Symptoms:

No data is transmitted or received via UART/SPI/I2C.

Devices do not respond to commands or requests.

Solutions:

Check Baud Rate and Clock Settings: Ensure that the baud rate for UART or clock settings for SPI/I2C match between the MS51FB9AE and external devices.

Verify Pin Connections: Double-check the wiring for communication lines (TX/RX, SCK, MISO, MOSI for SPI, SDA/SCL for I2C).

Test with Known Working Devices: If possible, test your communication setup with known working devices or peripherals to rule out hardware problems.

Use a Logic Analyzer: A logic analyzer can help you visualize the signals on communication lines and check if data is being transmitted or if there are any protocol violations.

6. Memory Allocation and Stack Overflow

In complex applications, running out of memory or having an improper stack allocation can lead to crashes or unanticipated behavior.

Symptoms:

The microcontroller resets or crashes without clear reason.

Stack traces show unexpected behavior.

Solutions:

Optimize Memory Usage: Make sure that your application doesn't exceed available memory. Utilize the internal RAM effectively and consider using external memory if needed.

Adjust Stack Size: Check the configuration of the stack and heap sizes in your development environment. If your stack size is too small, increase it to avoid stack overflows.

Use Memory Profiling Tools: Some IDEs provide memory profiling tools to track memory usage during runtime, which can help identify issues like memory leaks.

7. Peripheral Device Malfunctions

When interfacing with sensors, displays, or other peripherals, incorrect configurations or faulty connections can cause malfunctioning devices.

Symptoms:

Peripherals are not initialized correctly.

The microcontroller can’t read sensor data or drive outputs like LED s.

Solutions:

Check Peripheral Power and Ground Connections: Ensure that all peripheral devices are properly powered and grounded. Many peripherals also require pull-up or pull-down resistors on certain pins.

Use Initialization Code: Make sure that the peripheral initialization sequence is done correctly. Refer to the microcontroller’s libraries and example code to configure peripherals such as ADCs, DACs, and timers.

Test Peripheral in Isolation: If possible, test each peripheral individually by isolating it from the rest of the system to identify any faulty components.

8. Overheating or Thermal Issues

Overheating can cause the MS51FB9AE to throttle its performance or even shut down. High temperature environments or improper heat dissipation can lead to unstable performance.

Symptoms:

The microcontroller resets when running at full load.

Performance degrades under heavy processing loads.

Solutions:

Ensure Proper Ventilation: Make sure that the system is in a well-ventilated environment to prevent heat buildup.

Use Heatsinks or Thermal Pads: If the microcontroller is in a high-power application, using heatsinks or thermal pads can help dissipate heat.

Monitor Temperature: Consider adding a temperature sensor to monitor the operating temperature of the MS51FB9AE.

Conclusion

The MS51FB9AE is a powerful microcontroller that offers a range of features for embedded systems. By understanding the common troubleshooting issues and following the solutions outlined in this guide, you can effectively address most of the challenges you may encounter. Whether it's power supply problems, firmware bugs, or communication issues, this guide equips you with the tools needed to ensure smooth development and reliable performance in your projects. Happy coding!
