The TLV70433DBVR , a high-pe RF ormance ultra-low- Power voltage regulator, is engineered for modern applications requiring exceptional efficiency, compactness, and stable performance at minimal voltage levels. This article explores the core features, applications, and optimization techniques for using the TLV70433DBVR, making it ideal for energy-sensitive projects.

TLV70433DBVR, ultra-low-power, voltage regulator, power efficiency, energy optimization, voltage stability, compact power design, Texas Instruments, Power Management , embedded systems.

Introduction to Ultra-Low-Power Voltage Regulators and the TLV70433DBVR

In today’s rapidly advancing technology landscape, efficient power Management has become a cornerstone of system design—especially in portable devices, Internet of Things (IoT) systems, and wearables. As these devices become more compact and power-sensitive, the demand for low-power solutions that provide stable performance while extending battery life is at an all-time high. The TLV70433DBVR, a voltage regulator from Texas Instruments, plays a crucial role in meeting these stringent requirements by delivering ultra-low dropout voltage and extremely low quiescent current, making it an essential component in energy-efficient designs.

The Challenge of Low-Power Systems

One of the primary challenges when designing low-power systems is ensuring a steady, efficient power supply while maintaining minimal energy consumption. Voltage regulators are integral in these systems, as they ensure the proper voltage levels for circuits, preventing them from overvoltage or undervoltage conditions that could result in malfunctions or damage.

In traditional voltage regulation designs, engineers often had to balance efficiency and performance, compromising on either one. However, with the advent of ultra-low-power voltage regulators like the TLV70433DBVR, system designers can achieve high efficiency without sacrificing performance.

The TLV70433DBVR is designed with ultra-low power consumption in mind, offering a dropout voltage of only 33 mV (at 10 µA of load current) and a quiescent current of just 30 nA, making it ideal for applications requiring stable, reliable voltage regulation in extremely low-power environments. But what exactly makes the TLV70433DBVR stand out in this competitive market?

Key Features of TLV70433DBVR

Ultra-Low Dropout Voltage: The TLV70433DBVR's exceptionally low dropout voltage allows it to maintain stable voltage regulation even as the input voltage approaches the output voltage level. This feature is vital for applications powered by battery sources, where every millivolt matters.

Ultra-Low Quiescent Current: With a quiescent current of just 30 nA, the TLV70433DBVR consumes almost no power when idle, making it ideal for energy-conscious applications such as IoT Sensor s and low-power medical devices.

Wide Input Voltage Range: The device supports input voltages from 1.6V to 6.5V, making it compatible with a wide range of power sources. This flexibility is particularly beneficial in systems with varying input conditions.

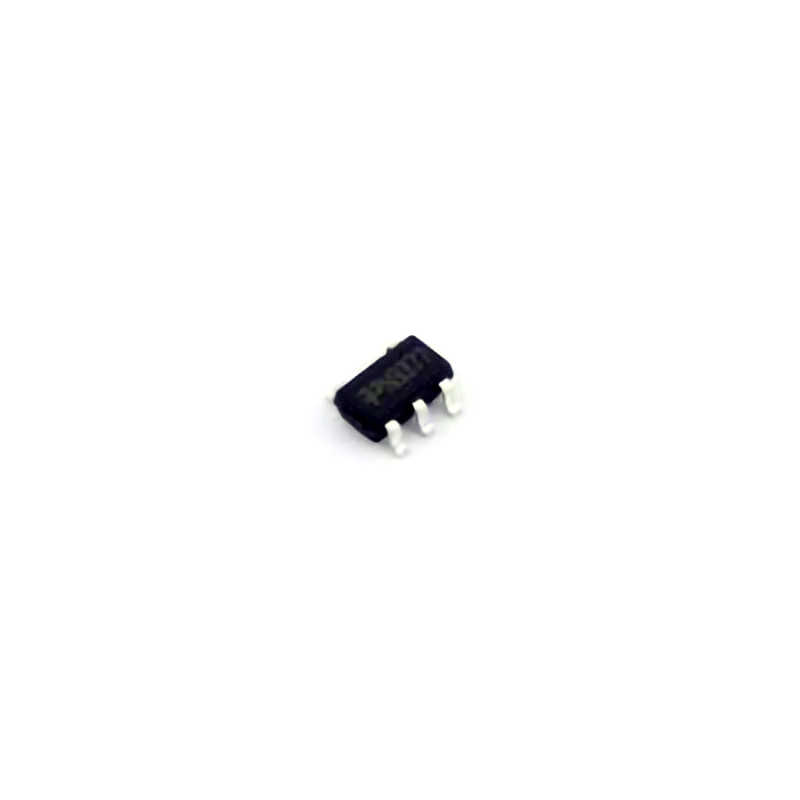

Compact Package: The TLV70433DBVR comes in a small, space-saving package that ensures a minimal footprint, making it ideal for applications with size constraints, such as wearables, remote Sensors , and mobile devices.

Low Noise Operation: Noise sensitivity is often a concern in sensitive electronics, such as RF circuits or high-precision sensors. The TLV70433DBVR offers low noise performance, ensuring that it does not interfere with the operation of high-precision devices.

Stable Output: The device ensures a stable, regulated output voltage, even under dynamic load conditions. This characteristic is crucial for maintaining system stability in devices that experience frequent power fluctuations.

Applications of the TLV70433DBVR

The TLV70433DBVR excels in a variety of applications where low power consumption and compact design are paramount. Some key use cases include:

Wearable Devices: Small-form-factor applications such as fitness trackers, health monitoring devices, and smartwatches can benefit from the TLV70433DBVR’s ultra-low-power features, ensuring long battery life without compromising on performance.

IoT Sensors: Sensors in IoT systems often need to operate for long periods on small batteries, collecting data without frequent recharging. The TLV70433DBVR’s minimal quiescent current ensures that these devices consume the least amount of power while maintaining reliable operation.

Medical Devices: In battery-operated medical devices such as glucose monitors and heart rate sensors, power efficiency is critical. The TLV70433DBVR helps maintain optimal performance while extending battery life, reducing the frequency of battery replacements.

Portable Electronics: Devices like portable cameras, handheld GPS systems, and other mobile gadgets require efficient power management to extend battery life. The TLV70433DBVR ensures stable voltage regulation even as the input voltage fluctuates.

Optimizing Power Efficiency with the TLV70433DBVR

For engineers looking to optimize power efficiency in their designs, the TLV70433DBVR offers several strategies that can maximize both battery life and system performance. Some optimization techniques include:

Minimize Quiescent Current Draw: The TLV70433DBVR’s ultra-low quiescent current means that it draws almost no power when idle. Designers can take advantage of this feature by ensuring that the regulator remains in a low-power state during periods of inactivity, such as when the system is in sleep mode.

Select an Appropriate capacitor for Stability: The TLV70433DBVR requires capacitors at its input and output to maintain stability. Choosing capacitors with the correct values and specifications (e.g., ceramic capacitors with low Equivalent Series Resistance or ESR) can improve transient response and maintain output voltage accuracy.

Efficient Load Management: To optimize power efficiency, engineers should design circuits that ensure a steady load current. Sudden spikes or drops in load current can cause voltage fluctuations that may affect the stability of the regulator. By smoothing out load transitions, the system can maintain steady voltage regulation, leading to better overall power efficiency.

Energy Harvesting Integration: In certain applications such as IoT and wearable devices, integrating energy harvesting techniques—such as solar panels or vibration-based generators—can extend battery life. The TLV70433DBVR’s low dropout voltage makes it compatible with these energy sources, ensuring efficient power conversion even when input power is limited.

Advanced Techniques for Application Optimization with TLV70433DBVR

While Part 1 discussed the basics of the TLV70433DBVR, its features, and typical applications, this section will delve deeper into advanced techniques for optimizing power efficiency, maximizing output stability, and enhancing the longevity of battery-operated systems.

Advanced Power Management Strategies

To truly unlock the potential of the TLV70433DBVR, engineers need to implement advanced power management techniques. These techniques are essential for systems where power consumption is critical, such as remote sensors, medical devices, and energy-sensitive IoT devices. The following strategies can help achieve optimized power efficiency:

Dynamic Voltage Scaling (DVS) Integration

Dynamic Voltage Scaling (DVS) is a technique used to reduce the power consumption of processors and systems by adjusting the supply voltage according to the workload. By integrating the TLV70433DBVR into DVS systems, designers can ensure that the voltage provided to the processor or other components is adjusted dynamically, reducing power draw when the system is idle or performing light tasks.

The TLV70433DBVR is particularly well-suited for DVS applications due to its ultra-low dropout voltage, which allows it to maintain stable output voltage even when the input supply voltage fluctuates or is reduced.

Implementing Power-Gating Techniques

Power gating is another effective strategy for reducing power consumption, especially in digital systems. Power gating involves turning off certain components or sections of a circuit when they are not in use, effectively “gating” their power supply. By integrating the TLV70433DBVR, which operates with minimal quiescent current, engineers can ensure that the power supply to other components is only activated when needed, extending battery life and optimizing system power efficiency.

Use of Multiple Power Supply Rails

In some systems, it is beneficial to use multiple power rails with different voltage levels to supply different parts of the circuit. For instance, some components may require a higher voltage, while others need a lower one. The TLV70433DBVR can be used in conjunction with other regulators to create a multi-rail power architecture that maximizes power efficiency by providing the exact voltage needed for each component.

Temperature Compensation for Power Management

Temperature variation can significantly affect the performance and efficiency of voltage regulators. In environments where temperature fluctuations are common, designers should use temperature compensation techniques to maintain stable output voltages. The TLV70433DBVR’s design inherently compensates for temperature changes, maintaining its performance in a wide range of operating conditions.

Optimizing the TLV70433DBVR for High Precision and Stability

While power efficiency is paramount in ultra-low-power applications, ensuring that the output voltage remains stable and accurate is equally crucial. The TLV70433DBVR provides high output voltage accuracy and low dropout characteristics, making it ideal for systems requiring high precision. Some strategies to further optimize its stability include:

Optimizing Capacitor Selection

The stability of the TLV70433DBVR is highly influenced by the choice of input and output capacitors. To minimize ripple and noise and enhance transient response, engineers should carefully select capacitors with low ESR (Equivalent Series Resistance) values. This will improve the voltage regulation, ensuring that the system operates smoothly under varying load conditions.

Minimizing Noise Sensitivity

For sensitive applications such as analog sensors and RF circuits, it is essential to minimize noise in the power supply. The TLV70433DBVR is designed with low noise operation in mind, but further optimization can be achieved by placing bypass capacitors close to the input and output pins, shielding the regulator from external noise sources.

Load Transient Response Optimization

In systems with rapidly changing load conditions, ensuring that the voltage regulator responds quickly to load transients is critical. Designers can optimize the load transient response by choosing capacitors with the appropriate values for their specific application. This reduces the chance of voltage dips or overshoot that could affect system performance.

Conclusion

The TLV70433DBVR voltage regulator from Texas Instruments stands out as a highly efficient, ultra-low-power solution for modern electronics. By leveraging its ultra-low dropout voltage, minimal quiescent current, and excellent stability, designers can create systems that offer long battery life, compact form factors, and reliable performance under various operating conditions.

By applying advanced optimization techniques such as dynamic voltage scaling, power gating, and multi-rail designs, engineers can further enhance the performance of their devices, ensuring that their applications meet the highest standards of power efficiency and stability.

As the demand for low-power electronics continues to grow, the TLV70433DBVR will play a crucial role in powering the next generation of IoT devices, medical equipment, wearables, and more—helping to create systems that are not only smarter and more efficient but also environmentally friendly and long-lasting.
