The TPS63020DSJR is a versatile and efficient step-up/step-down converter that is widely used in electronic devices. However, like any complex component, it can encounter issues during operation. This article covers common troubleshooting techniques and practical solutions for addressing problems related to the TPS63020DSJR, ensuring reliable performance in your applications.

TPS63020DSJR troubleshooting, Power management IC, step-up converter, step-down converter, common issues, electronics, solution, power supply, voltage regulator, switching regulator, device repair, circuit debugging

Understanding the TPS63020DSJR and Common Problems

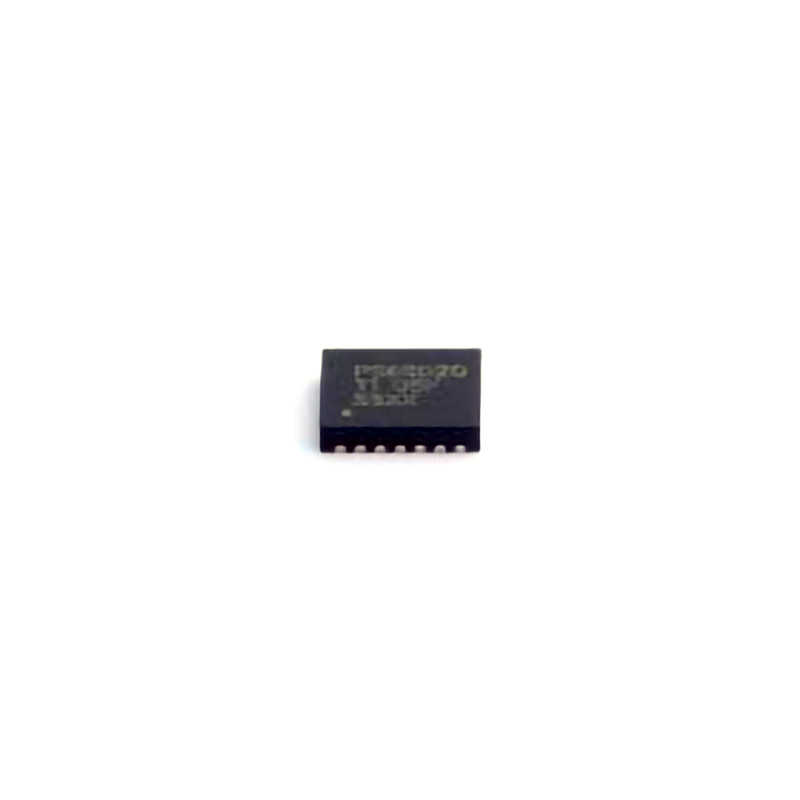

The TPS63020DSJR is a high-efficiency, integrated power management solution designed by Texas Instruments. It combines a buck-boost converter with an integrated output voltage range of 1.8 V to 5.5 V, making it suitable for a variety of applications such as portable devices, wearable technology, and communication systems. While it is highly efficient, users may encounter issues due to incorrect implementation, external component failures, or even design flaws. Understanding the typical problems that can arise and their troubleshooting methods is essential for optimizing its performance.

1.1. Overview of the TPS63020DSJR

Before diving into troubleshooting, it’s helpful to know what the TPS63020DSJR is designed to do. The device provides a highly efficient power conversion in scenarios where the input voltage may vary above or below the output voltage. This makes it ideal for battery-powered applications where the input voltage can fluctuate as the battery discharges. Its main features include:

Wide Input Voltage Range: 0.3 V to 5.5 V.

Output Voltage Range: 1.8 V to 5.5 V.

High Efficiency: Up to 96% depending on the input and output voltages.

Low Quiescent Current: 30 µA, making it suitable for low-power applications.

Small Form Factor: Available in a 3mm x 3mm QFN package.

With such impressive specifications, it’s easy to see why the TPS63020DSJR is a popular choice. However, troubleshooting becomes critical when issues arise in real-world applications.

1.2. Common Troubleshooting Scenarios

Scenario 1: Device Not Powering Up

One of the most common issues encountered with the TPS63020DSJR is that the device may not power up at all. This can happen for a variety of reasons:

Insufficient Input Voltage: The input voltage may be below the minimum required operating voltage. The TPS63020DSJR has a wide input range, but if the voltage dips below the minimum threshold (typically around 0.3V), the device will fail to operate.

Solution: Verify that the input voltage is within the recommended range (0.3V to 5.5V). If you are using a battery, check its voltage level using a multimeter.

Incorrect capacitor Values: The TPS63020DSJR relies on external Capacitors for stable operation. Incorrect or low-quality capacitors may lead to failure in startup.

Solution: Ensure that the capacitors on both the input and output meet the recommended specifications in the datasheet. Typically, 10 µF to 22 µF ceramic capacitors should be used.

Scenario 2: Output Voltage Is Incorrect

If the output voltage of the TPS63020DSJR is either too high or too low, it can disrupt the operation of the entire circuit. This can occur due to several factors:

Faulty Feedback Network: The TPS63020DSJR regulates the output voltage using a feedback mechanism. If the feedback resistor network is improperly designed or if the resistors are faulty, the output voltage may be incorrect.

Solution: Double-check the values of the resistors in the feedback loop. The TPS63020DSJR uses a resistive divider to set the output voltage. Compare the resistor values with the datasheet recommendations to ensure they are correct.

Overloaded Output: If the output current exceeds the specified limits of the TPS63020DSJR, the output voltage can drop. Overloading could be caused by a downstream component malfunctioning or an incorrectly designed circuit.

Solution: Measure the current drawn by the load and ensure it is within the specified limits of the TPS63020DSJR (up to 2A). If necessary, optimize the circuit design to reduce the current draw or increase the power capacity.

Scenario 3: Excessive Heat Generation

Another common issue is excessive heating during operation. The TPS63020DSJR, being a switching regulator, generates heat under load. However, if it overheats, this can lead to thermal shutdown, instability, or permanent damage.

Poor PCB Layout: Improper PCB layout can result in thermal hotspots. The power dissipation of the TPS63020DSJR is dependent on the efficiency of the power conversion, but if the layout is poor, heat can accumulate in certain areas of the IC.

Solution: Optimize the PCB layout by following the guidelines in the datasheet. Ensure adequate copper area for heat dissipation, and use multiple layers if possible. Properly place the input and output capacitors close to the device pins.

Excessive Load: If the device is subjected to too high of a load, it may overheat.

Solution: Ensure that the load is within the recommended operating conditions and does not exceed the current or power limits of the device. Consider using a heatsink or active cooling if the application demands high power.

1.3. General Troubleshooting Tips

When troubleshooting any power management IC, the following general guidelines can help isolate the issue:

Use an Oscilloscope: If the output is unstable, using an oscilloscope to measure the switching frequency and waveform can reveal whether the device is operating correctly or if there is excessive noise in the circuit.

Check All Connections: Ensure that all the external components (e.g., resistors, capacitors) are correctly placed and soldered. Poor connections can result in erratic behavior.

Verify Grounding: Ground loops or poor grounding can lead to erratic operation. Make sure the ground plane is continuous and properly connected throughout the circuit.

Advanced Troubleshooting Techniques and Solutions

In addition to the basic troubleshooting methods outlined in Part 1, more advanced techniques can be applied to resolve persistent or complex issues with the TPS63020DSJR. These solutions involve a deeper understanding of circuit behavior, alternative debugging tools, and possible adjustments to your design.

2.1. Analyzing Efficiency Losses

The TPS63020DSJR is known for its high efficiency, but various factors can cause efficiency to drop significantly. Identifying and addressing these issues can help optimize performance.

Low Efficiency Due to High Output Ripple

Ripple on the output voltage can be an indication of inefficiency in the power conversion process. Excessive ripple may be caused by:

Insufficient Filtering: The output filter capacitors may not be large enough or might have too high ESR (Equivalent Series Resistance ).

Solution: Increase the output capacitor value or use low-ESR capacitors. The datasheet suggests using ceramic capacitors with low ESR for optimal filtering.

High Power Loss Due to Switching Frequency

Another possible cause of inefficiency is the switching frequency of the TPS63020DSJR. While the device operates at a nominal switching frequency of 1.2 MHz, this can change based on load conditions and input voltage.

Incorrect Switching Frequency: If the switching frequency deviates too far from the optimal range, it can increase losses.

Solution: Ensure that the external components (e.g., inductors and capacitors) are rated for the correct switching frequency and are not causing unnecessary losses. Additionally, check the datasheet for any recommended component tolerances.

2.2. Handling Voltage Transients

When the TPS63020DSJR is connected to sensitive components or systems, voltage transients can cause unexpected behavior. Voltage spikes, either from the input or output side, can lead to damage or malfunction.

Transient Protection: If you experience voltage spikes, it is a good idea to add transient suppression components such as TVS diodes or varistors at the input and output.

Solution: Add these protective components to prevent voltage spikes from reaching critical levels that could damage the TPS63020DSJR.

2.3. Long-Term Reliability and Component Wear

Over time, components may degrade, especially in harsh environments. The longevity of the TPS63020DSJR can be affected by factors like temperature fluctuations, humidity, and high current loads.

Aging Components: Capacitors, particularly electrolytic types, can degrade over time. If you're using low-quality capacitors, they may fail prematurely, leading to instability.

Solution: Consider using high-quality, long-life components such as solid-state capacitors that are designed for high-reliability applications. Reassess the design periodically to ensure it meets the required standards for longevity.

2.4. Best Practices for PCB Design

The quality of your PCB design plays a crucial role in the overall performance of the TPS63020DSJR. Poor layout can introduce noise, instability, and inefficiency. Below are some best practices for optimizing your PCB layout:

Minimize Trace Lengths: Keep traces as short and wide as possible, particularly for power and ground paths, to minimize resistance and inductance.

Ground Plane: Use a continuous, uninterrupted ground plane to provide a low-impedance return path for current and to minimize noise.

Component Placement: Place critical components (e.g., feedback resistors, capacitors) as close to the device as possible to minimize parasitic effects.

By following these advanced troubleshooting techniques, you can ensure that the TPS63020DSJR performs optimally and reliably throughout its lifespan. Whether you are debugging a minor issue or addressing a more complex problem, understanding the inner workings of the IC and applying targeted solutions can help keep your power management systems running smoothly.
