The UCC3895DWTR , a versatile Power management IC, is widely used in various applications. However, like any complex component, users may encounter issues during integration and operation. This guide delves into common troubleshooting methods and practical solutions to ensure smooth performance of the UCC3895DWTR.

UCC3895DWTR troubleshooting, UCC3895DWTR solutions, power management IC, UCC3895DWTR issues, circuit debugging, UCC3895DWTR power supply, UCC3895DWTR applications

Understanding the UCC3895DWTR and Identifying Potential Issues

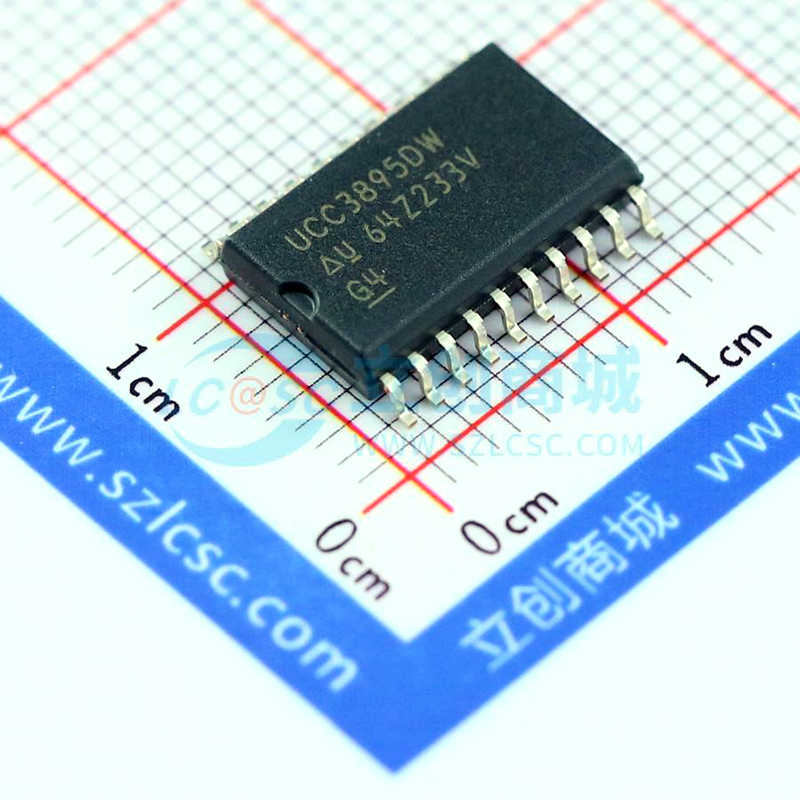

The UCC3895DWTR is a high-performance, integrated power management IC designed by Texas Instruments, typically used in power supplies for DC-DC conversion. It offers excellent efficiency, precise control, and reliable performance, making it an excellent choice for systems requiring smooth power regulation. However, like any complex integrated circuit (IC), it may present a variety of issues during development or operation. Identifying and troubleshooting these issues requires a methodical approach.

Key Features of the UCC3895DWTR

Before diving into troubleshooting, it is essential to understand the UCC3895DWTR’s key features and its role in a system. The UCC3895DWTR is typically used in feedback control loops, driving power transistor s in buck, boost, or flyback converters. Its main features include:

Fixed-frequency operation: The IC operates at a fixed frequency to regulate power output, ensuring stable operation.

Internal Voltage Reference : It includes a precise internal voltage reference to set the output voltage accurately.

Current-mode control: This feature allows for fast response and excellent loop stability in power supply designs.

Integrated error amplifier: The UCC3895DWTR has a built-in error amplifier to maintain output voltage regulation.

Given these features, issues related to voltage regulation, frequency instability, or power output problems often point to specific components in the power supply design.

Common UCC3895DWTR Troubleshooting Scenarios

1. No Output Voltage or Incorrect Output Voltage

One of the most common issues encountered with the UCC3895DWTR is the lack of proper output voltage or an incorrect output voltage. This can occur due to various reasons:

Faulty Feedback Loop: The UCC3895DWTR relies heavily on the feedback loop to adjust its output. If the feedback components (resistors, capacitor s, or external error amplifiers) are incorrectly chosen or improperly connected, the feedback signal may be disrupted, causing incorrect voltage regulation.

Improper Grounding: Poor grounding or a ground loop in the system can introduce noise or reduce the effectiveness of the feedback loop, leading to unstable output voltage.

Incorrect Voltage Reference: If the internal reference voltage is not stable or precise, the output voltage will be inaccurate. In this case, it’s important to check the IC’s internal reference and associated components like resistors or capacitors connected to the reference pin.

Solution:

To address these issues:

Verify the values and placement of feedback components (e.g., resistors and capacitors) according to the recommended application circuit.

Ensure proper grounding throughout the design to reduce noise and improve stability.

Use an oscilloscope to check the feedback loop’s performance and ensure proper signal synchronization.

2. Overheating of the IC

Overheating of the UCC3895DWTR can lead to system instability, erratic behavior, and even permanent damage to the IC. The common causes for overheating include excessive input voltage, insufficient cooling, or a faulty power transistor.

Solution:

Check the input voltage and ensure it is within the specified range for the UCC3895DWTR.

Confirm that the power transistors and other components in the power delivery path are working correctly and are appropriately rated for the application.

Consider adding heat sinks or improving airflow around the IC to ensure proper cooling, especially in high-power applications.

3. Frequency Instability or Oscillation

Frequency instability or oscillation can lead to erratic operation, causing fluctuations in the output voltage. This can occur if the UCC3895DWTR’s internal frequency generation or the external timing components are not functioning correctly.

Solution:

Check the external timing resistors and capacitors to ensure they are within tolerance.

Use an oscilloscope to monitor the switching frequency and verify that it remains stable.

Check for improper feedback loop compensation, as inadequate compensation can lead to oscillations.

Advanced Troubleshooting Techniques and Solutions for UCC3895DWTR

While basic troubleshooting methods can resolve many common issues, some problems with the UCC3895DWTR may require more advanced techniques and tools to identify and fix. This section discusses several advanced troubleshooting methods and practical solutions to help users resolve complex problems.

4. Inconsistent or Excessive Ripple on the Output

Ripple voltage, or the unwanted variation in the output voltage, is another common issue. Excessive ripple can degrade the performance of downstream components or even cause the system to malfunction. In systems using the UCC3895DWTR, ripple is typically caused by issues with the filter capacitors, improper layout, or inadequate switching performance.

Solution:

Capacitor Selection: Ensure that the output capacitors are of high quality and appropriate value. Low-quality or incorrect capacitors may fail to filter high-frequency noise effectively, leading to increased ripple.

Layout Optimization: Proper PCB layout is crucial for minimizing ripple. Ensure that the power and ground planes are well-defined and that the traces carrying high currents are short and thick to reduce impedance.

Check Inductor Performance: The inductor used in the design plays a crucial role in determining the ripple characteristics. Ensure that the inductor is rated appropriately for the current levels and operates within its optimal frequency range.

5. Inadequate Switching Performance (Duty Cycle Issues)

The UCC3895DWTR is designed to offer high switching efficiency, but if there are issues with the switching transistors or their drive circuits, the duty cycle could become erratic, leading to inefficiencies or complete failure to regulate the output.

Solution:

Examine the Switching Transistors: Ensure that the MOSFETs or other switching devices are functioning properly. A faulty or improperly rated transistor can significantly affect the duty cycle, causing inefficient switching or system failure.

Gate Driver Issues: If you’re using external gate drivers for the switching transistors, check to make sure they are operating as expected. Insufficient gate drive can cause delayed or improper switching.

Measure Waveforms: Use an oscilloscope to capture the gate drive signals and the resulting switching waveforms. Ensure that the duty cycle is consistent with the desired specifications.

6. Input Power Supply Problems

The UCC3895DWTR’s performance is highly dependent on the quality of the input power supply. Issues such as voltage drops, noise, or instability in the input can cause the IC to malfunction, resulting in instability at the output.

Solution:

Check Input Voltage: Verify that the input voltage is stable and within the specified range for the IC. Any variation beyond the recommended range can cause improper operation.

Reduce Noise: Use additional filtering at the input stage if excessive noise or ripple is observed. Proper filtering can help ensure clean power delivery to the UCC3895DWTR.

Confirm Power Source Quality: Ensure that the power source is capable of providing enough current without significant voltage sag or noise. In applications with high current demands, consider adding bulk capacitors to smooth any fluctuations.

7. Component Damage and Replacement

In some cases, the UCC3895DWTR may simply be damaged due to electrical overstress, improper handling, or other factors. If the IC is damaged, no amount of troubleshooting will restore its function.

Solution:

Replace the IC: If all other troubleshooting methods fail and the IC is suspected to be damaged, replace the UCC3895DWTR with a new one. Ensure that the new component is installed correctly, with proper handling to avoid electrostatic discharge (ESD).

Check for Short Circuits or Overvoltage: If the IC was damaged, check for potential short circuits or overvoltage conditions that may have caused the failure.

Conclusion

Troubleshooting the UCC3895DWTR requires a clear understanding of its features, common issues, and systematic diagnostic techniques. By following the steps outlined in this guide, users can effectively identify and resolve issues related to the IC’s performance. Whether dealing with incorrect output voltage, frequency instability, or overheating, addressing these concerns early can help ensure the long-term reliability and efficiency of power management systems.

Remember that a careful approach to design, proper component selection, and attention to PCB layout can prevent many of the common issues associated with the UCC3895DWTR. When problems do arise, however, following a structured troubleshooting process can save both time and effort, leading to quicker resolution and a more robust final product.
