Understanding the W25X40CLSNIG Flash module in Embedded Systems

Flash Memory has become a cornerstone of modern embedded systems, providing a reliable and efficient solution for data storage. In particular, the W25X40CLSNIG from Winbond is a popular choice for small-capacity flash memory in embedded designs. With 4Mb of storage and a Serial Peripheral interface (SPI), this module offers the performance and flexibility needed in compact systems where size, cost, and Power efficiency are critical considerations.

Key Features of the W25X40CLSNIG

The W25X40CLSNIG comes with several standout features, making it ideal for embedded applications:

4Mb Capacity: Though small in size, 4Mb (512KB x 8) is more than enough for many embedded applications, including firmware storage, configuration data, and lookup tables.

SPI Interface: This provides a simple yet powerful Communication protocol that is widely supported in embedded systems, making the module easy to interface with microcontrollers, FPGA s, and other devices.

Low Power Consumption: The module is designed for ultra-low power operation, which is essential for battery-powered and energy-conscious embedded systems.

High-Speed Performance: With fast read/write speeds, the W25X40CLSNIG ensures quick Access to data, enabling your application to function smoothly even with limited memory.

These features make the W25X40CLSNIG a versatile choice for applications such as industrial control systems, IoT devices, automotive electronics, and more. However, to unlock its full potential, it’s essential to consider the best practices and tips for integrating it into your design.

Tip 1: Optimize SPI Communication for Speed

One of the main advantages of using the W25X40CLSNIG is its SPI interface, which offers high-speed communication between the flash memory and the embedded system. However, to make the most of the module's speed, you'll need to optimize SPI communication settings.

Maximize Clock Frequency: The W25X40CLSNIG supports SPI clock frequencies up to 104 MHz, allowing for faster data transfer. Make sure your microcontroller or processor is capable of handling such speeds to fully leverage this feature.

Use Quad-SPI Mode: If your system supports it, enabling Quad-SPI mode can further increase data throughput. In this mode, four data lines are used simultaneously, improving read and write speeds, which is essential for high-performance applications that demand quick access to memory.

Efficient Commands: Use efficient read and write commands. The W25X40CLSNIG supports Fast Read, Quad Output Fast Read, and Write Enable commands, which provide faster data access compared to traditional SPI commands.

By fine-tuning these SPI settings, you can ensure that the flash memory operates at its full potential, providing fast and efficient data storage for your application.

Tip 2: Consider Power Management for Battery-Operated Designs

For battery-powered embedded devices, power consumption is a critical factor. The W25X40CLSNIG is designed with low power consumption in mind, but there are additional steps you can take to minimize power usage:

Use Deep Power-Down Mode: The flash memory features a Deep Power-Down (DPD) mode that minimizes power consumption when the memory is not in use. By activating this mode during idle times, you can significantly reduce the overall power draw of your device.

Low Power Standby: The module also offers a Standby mode, which allows for quick resumption of operations while still consuming minimal power. This is perfect for applications where data needs to be retained but the system does not require constant activity.

Optimize Data Access Patterns: Reducing the frequency of read and write operations is another way to save power. Organize your data access patterns so that the flash memory is only accessed when absolutely necessary.

By using these power management strategies, you can extend battery life, making the W25X40CLSNIG an excellent choice for portable and energy-efficient embedded systems.

Tip 3: Ensure Compatibility with Host Systems

When designing an embedded system, it’s crucial to ensure compatibility between the W25X40CLSNIG flash memory module and the host device, whether it’s a microcontroller, FPGA, or another system component.

Check Voltage Levels: The W25X40CLSNIG operates at a voltage range of 2.7V to 3.6V. Ensure that the voltage levels of your host system align with these specifications to avoid potential damage to the memory module.

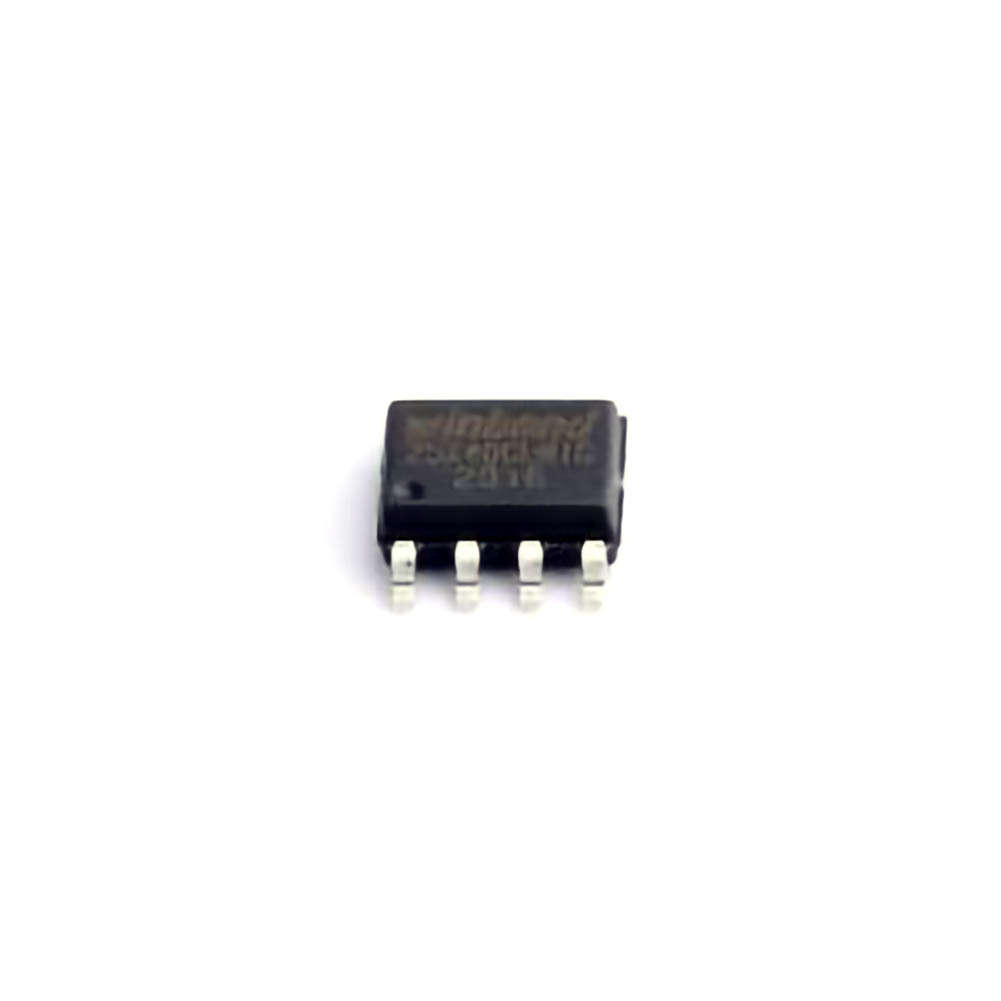

Pin Configuration: The flash memory module comes in an 8-pin SOIC package. Ensure that your PCB design includes the correct pinout for proper connection, particularly the CS (chip select), MISO (Master In Slave Out), and MOSI (Master Out Slave In) pins.

Timing and Signal Integrity: Verify that your SPI clock and timing constraints are met to ensure reliable communication between the host and the flash memory. Signal integrity issues, such as noise or incorrect timing, can lead to communication errors, which can compromise system reliability.

By addressing these compatibility factors, you can prevent potential issues that may arise when integrating the W25X40CLSNIG into your embedded system, ensuring smooth and stable operation.

Advanced Application Tips and Design Considerations for W25X40CLSNIG Flash Memory

Once you’ve covered the basics of integrating the W25X40CLSNIG into your embedded system, it’s time to dive into more advanced application tips and design considerations to further optimize performance and reliability.

Tip 4: Error Management and Data Integrity

Data integrity is paramount in embedded systems, especially in applications where failure could lead to costly or dangerous outcomes. Fortunately, the W25X40CLSNIG provides several built-in features that can help protect data from corruption:

Write Protection: The W25X40CLSNIG includes a Write Protection feature, allowing you to lock specific sections of memory to prevent accidental or unauthorized modifications. Use this feature to protect critical firmware or configuration data.

ECC (Error Correction Code): While the module itself does not provide built-in ECC, you can implement an external error-correcting mechanism within your system software or hardware to detect and correct errors that may occur during data storage or retrieval.

Regular Backups: In critical systems, implementing regular backups of critical data stored in the flash memory can provide an extra layer of security in case of unexpected data corruption or failure.

By utilizing write protection and implementing external error management solutions, you can significantly increase the reliability and resilience of your embedded design.

Tip 5: Improving System Boot Time

One of the key advantages of using flash memory like the W25X40CLSNIG in embedded systems is the ability to store firmware or boot code. However, in systems that require quick start-up times, optimizing boot performance is essential.

Fast Boot Strategies: Ensure that your embedded system is optimized for fast boot times. Consider storing critical initialization code in the first few memory locations to minimize access times.

Cache Mechanisms: Some systems use external SRAM or other memory types as a cache to hold frequently accessed boot code, reducing the need to constantly read from flash memory. Integrating a cache can significantly reduce boot time.

Bootloader Optimization: The bootloader is the first software to run when the system starts. Optimizing the bootloader code to minimize its size and streamline its execution can shave valuable milliseconds off your system's startup time.

Tip 6: Future-Proofing Your Design

As embedded systems evolve, so do their memory requirements. While the W25X40CLSNIG is an excellent choice for many small-capacity applications, it's essential to consider how your design might scale over time.

Upgrade Path: If your system may require more memory in the future, consider designing your system with future scalability in mind. The W25X40CLSNIG is part of a broader family of flash memory modules with varying capacities, such as the W25X80 (8Mb) and W25X16 (16Mb). This allows you to upgrade memory without needing to redesign your entire system.

Software Compatibility: Ensure that your software is designed to handle different memory sizes, so upgrading your flash module in the future won’t require a complete rewrite of your code.

By keeping future memory needs in mind, you can design a more flexible and long-lasting embedded system.

Conclusion

The W25X40CLSNIG is a small yet powerful flash memory solution that can significantly enhance the performance and efficiency of embedded systems. By optimizing SPI communication, considering power management strategies, ensuring compatibility with host systems, and implementing error management and boot-time optimizations, you can unlock the full potential of this memory module. Additionally, by planning for future upgrades and scalability, you ensure that your embedded design can evolve with your application's needs. Whether you're developing IoT devices, automotive systems, or industrial controls, the W25X40CLSNIG offers the reliability, speed, and efficiency you need for your next embedded project.
