The BQ27421YZFR-G1A is a widely used fuel gauge IC, known for its precision in monitoring the state of charge and health of lithium-ion batteries. However, like all electronic components, users may encounter various issues when implementing the device into their designs. This article provides a comprehensive troubleshooting guide, outlining common problems and offering effective solutions to ensure optimal performance.

BQ27421YZFR-G1A, fuel gauge IC, troubleshooting, lithium-ion battery, state of charge, battery health, common issues, solutions, Power management, device diagnostics.

Introduction to the BQ27421YZFR-G1A and Common Issues

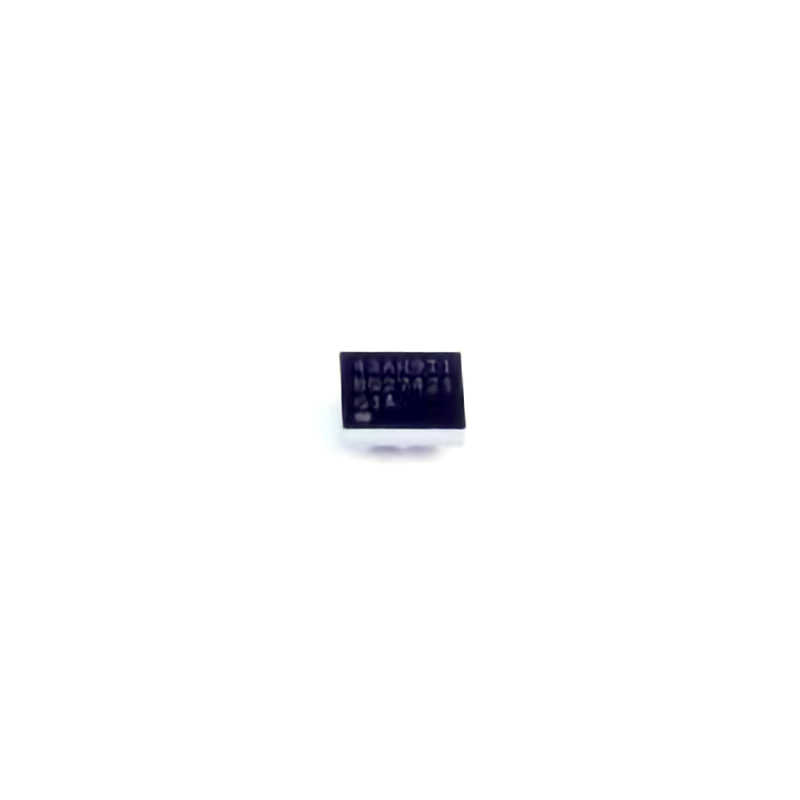

Overview of the BQ27421YZFR-G1A Fuel Gauge IC

The BQ27421YZFR-G1A is a sophisticated fuel gauge integrated circuit (IC) designed to measure the state of charge (SOC) and state of health (SOH) of lithium-ion batteries. It is primarily used in battery-powered systems such as portable devices, IoT applications, and energy storage solutions. This IC interface s with a microcontroller via an I2C or SMBus, providing real-time data on the battery’s voltage, temperature, current, and capacity.

Despite its advanced features and reliable performance, users often encounter issues while integrating the BQ27421YZFR-G1A into their designs. These challenges can range from incorrect readings to complete failures in Communication , impacting the overall efficiency of the battery management system (BMS). In this article, we will explore the most common problems faced by users of the BQ27421YZFR-G1A and provide troubleshooting solutions.

Key Troubleshooting Areas

When it comes to troubleshooting the BQ27421YZFR-G1A, the most common issues usually fall into the following categories:

Communication Failures: The IC may not communicate correctly with the host controller, leading to data loss or incorrect battery status readings.

Incorrect Battery Readings: The IC may give inaccurate state of charge (SOC) or state of health (SOH) readings, affecting power management decisions.

Low Accuracy in Voltage or Current Measurement: The voltage or current readings may be off, leading to poor battery performance or incorrect charge/discharge decisions.

Unexpected Shutdowns or Restarts: The system may unexpectedly shut down or restart due to power issues, faulty connections, or improper configuration of the BQ27421YZFR-G1A.

Battery Calibration Problems: Calibration is critical for accurate SOC readings. Improper calibration or failure to reset the BQ27421YZFR-G1A after battery replacement can lead to significant inaccuracies.

Common Troubleshooting Steps for BQ27421YZFR-G1A

Before diving into specific solutions for each problem, it’s important to follow a general troubleshooting approach:

Check Wiring and Connections: Ensure that all connections to the BQ27421YZFR-G1A are correct and secure. Poor connections can cause communication failures, voltage drops, and inaccurate readings.

Verify Power Supply: Confirm that the IC is receiving the correct input voltage and that the power supply is stable.

Update Firmware and Software: Ensure that the firmware running on your host microcontroller or processor is up-to-date. Outdated software can cause compatibility issues with the BQ27421YZFR-G1A.

Use the Correct I2C/SMBus Protocol: Ensure that the communication protocol is correctly set up. Mismatched baud rates or incorrect addressing can lead to failed communication.

Troubleshooting Communication Failures

Communication issues are one of the most common problems when using the BQ27421YZFR-G1A. Since the device communicates with a host microcontroller using I2C or SMBus, a failure in communication can prevent the retrieval of key battery parameters, such as SOC, voltage, and temperature.

1. Check the I2C Address

The BQ27421YZFR-G1A uses a default I2C address of 0x55. If you are using multiple devices or have changed the I2C address, ensure that the host controller is trying to communicate with the correct address.

2. Examine I2C Bus Pull-Up Resistors

The I2C bus requires pull-up resistors on both the SDA (data) and SCL ( Clock ) lines. If these resistors are too weak or missing, it could lead to unreliable communication or complete failure. Ensure that proper pull-up resistors (typically 4.7kΩ to 10kΩ) are used on the I2C lines.

3. Verify Clock Speed

The BQ27421YZFR-G1A supports I2C speeds up to 400kHz. Ensure that the I2C clock speed set in the firmware is within this range. If the speed is set too high or too low, the communication can become unreliable or fail altogether.

4. Examine Power and Ground Connections

Faulty or loose power connections can lead to communication issues, as the IC may not have sufficient power to send or receive data. Ensure that both the power (VSTOR) and ground (GND) pins are securely connected.

5. Check for Software-Related Problems

If you have confirmed that the hardware connections are correct, but communication issues persist, the problem might be software-related. Ensure that the correct commands and registers are being used in your firmware to communicate with the BQ27421YZFR-G1A.

Advanced Troubleshooting and Solutions

Troubleshooting Incorrect Battery Readings

Inaccurate battery readings are another common issue that users face when working with the BQ27421YZFR-G1A. The most critical readings affected by this issue are the state of charge (SOC) and state of health (SOH). If the fuel gauge does not report the correct SOC or SOH, it can cause poor power management decisions, potentially leading to unexpected shutdowns or suboptimal battery performance.

1. Battery Calibration

The BQ27421YZFR-G1A relies on an initial calibration to accurately measure SOC and SOH. If you have recently replaced the battery, it is crucial to perform a full calibration. To do this:

Reset the Fuel Gauge: Perform a full reset by using the appropriate commands to reset the BQ27421YZFR-G1A. This will clear previous calibration data, allowing the device to correctly recalibrate for the new battery.

Full Charge/Discharge Cycle: To recalibrate the IC, perform a full charge and discharge cycle of the battery. This helps the fuel gauge learn the battery’s full voltage range and capacity.

SOC Reset: After the full charge/discharge cycle, you may need to manually reset the SOC in the fuel gauge to 100% or 0%, depending on whether the battery is fully charged or discharged.

2. Check for Battery Chemistry Mismatch

The BQ27421YZFR-G1A supports various battery chemistries, and it’s crucial that you select the correct one during configuration. Using the wrong chemistry could result in inaccurate readings. Double-check that the chemistry parameters (such as nominal voltage, capacity, and charge/discharge rates) match the specifications of your battery.

3. Temperature Effects

The BQ27421YZFR-G1A also measures temperature to help estimate battery performance and health. If the temperature sensor is reading inaccurately, it may skew SOC and SOH readings. Make sure the temperature sensor is properly connected and calibrated.

Troubleshooting Low Voltage or Current Measurement Accuracy

In some cases, the BQ27421YZFR-G1A may report incorrect voltage or current measurements, leading to poor battery management. This can affect both the charging and discharging cycles of the battery, potentially damaging the battery or the device.

1. Verify Sense Resistor Value

The current measurement accuracy of the BQ27421YZFR-G1A is largely dependent on the value of the external sense resistor (RSNS). If the resistor is not of the correct value, it could lead to inaccurate current readings. Check the resistor’s value and ensure it matches the specifications recommended by the manufacturer.

2. Ensure Proper Current Path

Verify that the current path from the battery to the load is properly routed through the sense resistor and the BQ27421YZFR-G1A. Any deviations in the current path can lead to incorrect measurements.

3. Check Voltage Reference Source

The BQ27421YZFR-G1A uses an internal voltage reference to measure both voltage and current. If this reference is unstable or incorrect, it can cause inaccuracies in both readings. Ensure that the voltage reference is functioning as expected.

Resolving Unexpected Shutdowns or Restarts

If your system is experiencing unexpected shutdowns or restarts, this could be due to power issues, incorrect battery status, or a faulty configuration of the BQ27421YZFR-G1A.

1. Check Battery Voltage and Power Supply

Ensure that the battery voltage is within the acceptable range for the BQ27421YZFR-G1A. If the voltage drops too low, the IC may not function properly and could cause unexpected shutdowns. Similarly, check the power supply to the IC to ensure it is stable.

2. Examine Device Configuration

Incorrect configuration of the BQ27421YZFR-G1A can lead to incorrect readings, resulting in the system shutting down unexpectedly. Verify the configuration registers in the IC to ensure they are set correctly for your battery and system.

3. Implement Watchdog Timer

In some cases, a watchdog timer can help prevent unexpected restarts. The BQ27421YZFR-G1A can be used to trigger a reset if it detects certain anomalies. Implementing a watchdog timer in your system can help ensure stability.

Conclusion

The BQ27421YZFR-G1A is a versatile and reliable fuel gauge IC, but like all complex components, it can encounter issues when not properly integrated or configured. By following the troubleshooting steps outlined in this article, you can address common problems related to communication, battery calibration, measurement accuracy, and unexpected shutdowns. Remember to carefully verify your connections, firmware, and configuration to ensure that your BQ27421YZFR-G1A is operating at its best, delivering accurate battery information for optimal power management.
