Understanding the DP83848KSQ/NOPB and Common Issues

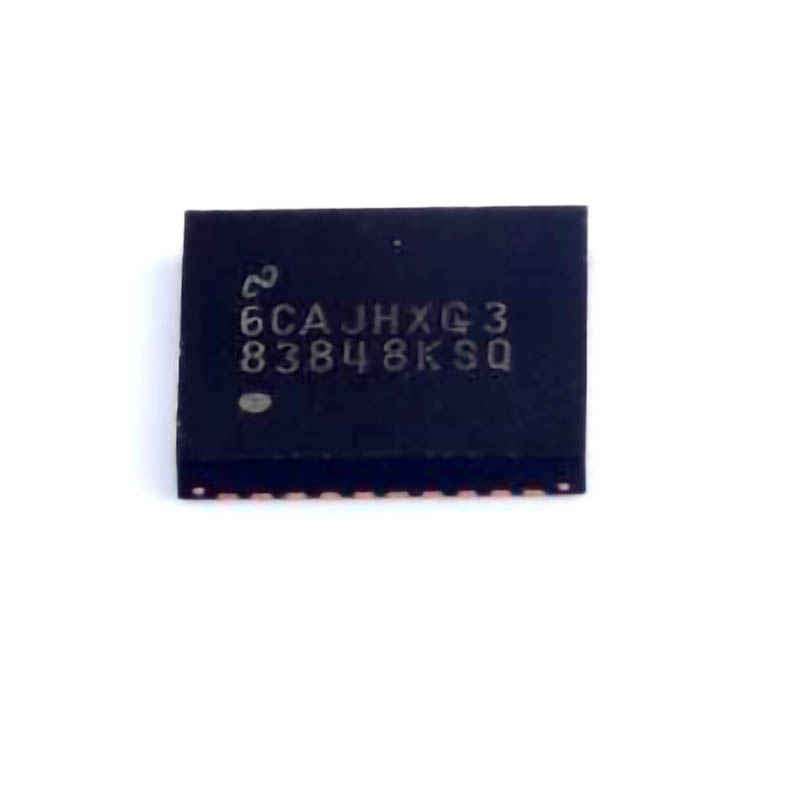

The DP83848KSQ/NOPB is a high-performance Ethernet PHY designed by Texas Instruments, widely utilized for creating reliable and fast wired network connections. As a key component in physical layer transmission, it bridges the gap between digital circuits (such as microcontrollers or CPUs) and the analog world of Ethernet signals. However, like any complex electronic component, it’s not immune to performance problems. When troubleshooting issues with this particular Ethernet PHY, it’s essential to understand both the internal working of the part and common symptoms that indicate something is wrong.

1. Power Supply and Initialization Issues

The DP83848KSQ/NOPB operates under specific power supply conditions, with its typical operating voltage ranging from 3.3V to 3.6V. One of the most frequent problems when troubleshooting this component is improper power supply initialization. If the voltage supply is too high or too low, the PHY might fail to initialize properly, resulting in network communication issues.

Symptoms:

No Ethernet link status or blinking LED s.

Inability to establish a connection between devices.

Solution:

Ensure that the power supply meets the specifications of the DP83848KSQ/NOPB.

Use a multimeter or oscilloscope to check the power rails, ensuring stable voltage and proper grounding.

Verify that the reset pin (RESET) is being properly togg LED , as this pin is crucial for proper initialization. A reset pulse must be sent to the chip during power-up.

2. Link Failure or Instability

Another common issue with the DP83848KSQ/NOPB involves link failures or unstable Ethernet connections. This can manifest in intermittent network access, failed data transfers, or no link at all. Link failures can occur due to improper signal connections, incorrect configurations, or issues in the physical cable.

Symptoms:

The device frequently loses connection with the network.

The link indicator LED is off or blinking inconsistently.

Inability to transmit or receive packets over the Ethernet network.

Solution:

Check the MII/RMII interface between the DP83848KSQ/NOPB and the host processor or microcontroller. Verify that the signals on the TX/RX lines are correctly routed and free from noise or interference.

Inspect the Ethernet cable and connectors. Ensure that they are correctly wired and conform to the TIA/EIA-568 standard (e.g., Cat5e or higher for gigabit speeds).

Verify the termination resistors and signal integrity between the PHY and the network switch or router.

Double-check the autonegotiation settings. The DP83848KSQ/NOPB supports automatic negotiation for speed and duplex modes. If the negotiation process fails, try manually configuring the speed and duplex modes to ensure compatibility with your network.

3. Incorrect Auto-negotiation

Auto-negotiation issues can lead to incompatibilities between devices connected through Ethernet. This feature is essential for ensuring the devices on both ends of the connection agree on the correct speed (10/100/1000 Mbps) and duplex (half/full) settings. When auto-negotiation fails, devices may default to mismatched settings, which could result in suboptimal network performance or no connection at all.

Symptoms:

Devices connected to the PHY at the wrong speed.

Frequent disconnections and degraded performance.

Solution:

In most cases, ensure that auto-negotiation is enabled on both the DP83848KSQ/NOPB and the other Ethernet device. If manual configuration is needed, disable auto-negotiation and manually set the speed and duplex mode on both devices to match.

Confirm that the ADVERTISED and PARTNER abilities register on the PHY are being correctly configured for autonegotiation. If issues persist, manually configure speed and duplex settings for a more stable link.

4. Driver or Firmware Issues

A less obvious cause of network issues with the DP83848KSQ/NOPB could be faulty drivers or improper firmware settings. While the PHY chip itself may be functioning perfectly, incompatible or outdated drivers can cause the device to fail during data transmission or initialization.

Symptoms:

The system recognizes the Ethernet PHY but cannot establish a connection.

The operating system fails to load the Ethernet interface, or the interface is disabled.

Solution:

Ensure that the firmware on the host processor is up-to-date, especially if the DP83848KSQ/NOPB is integrated into a larger system. Updating the firmware may resolve compatibility issues between the PHY and the system.

Verify that the correct driver is installed for the DP83848KSQ/NOPB. Consult the manufacturer’s documentation or support website to confirm that the proper software is being used.

Use diagnostic tools like ethtool (in Linux) to check for errors in the link status, and if needed, reinstall or update the driver.

Advanced Troubleshooting and Optimizing Performance of DP83848KSQ/NOPB

While part one covered the basics of troubleshooting the DP83848KSQ/NOPB, resolving more advanced issues requires a deeper understanding of the component’s capabilities and potential pitfalls. Here, we’ll explore some specialized strategies and techniques for optimizing the DP83848KSQ/NOPB's performance, ensuring stable and high-speed Ethernet connectivity.

5. Signal Integrity and EMI Issues

Signal integrity is critical in high-speed communication systems like Ethernet. Any interference or distortion in the signals transmitted between the DP83848KSQ/NOPB and other network components can result in degraded performance or dropped connections. Electromagnetic interference (EMI) can be particularly problematic in environments with a lot of electronic noise.

Symptoms:

Frequent link drops or packet loss.

Unstable connection at high speeds (1000 Mbps).

Unexpected system behavior during high-throughput tasks.

Solution:

PCB Layout: Ensure the PCB layout follows best practices for high-speed digital design, such as minimizing trace lengths for critical signals (TX/RX), using proper impedance matching, and maintaining ground planes.

Decoupling Capacitors : Use appropriate decoupling capacitor s close to the power pins of the DP83848KSQ/NOPB. Capacitors in the range of 0.1µF to 10µF can help filter out noise and prevent voltage spikes.

EMI Shielding: If the device is operating in a noisy environment, consider adding shielding around the PHY and surrounding components. This can reduce interference and improve signal quality.

Twisted Pair Cables: Use twisted-pair Ethernet cables (e.g., Cat5e or Cat6) to help mitigate external EMI.

6. Temperature Variations and Thermal Management

The DP83848KSQ/NOPB, like any other electronic component, has a maximum operating temperature range. If the device is exposed to temperatures outside this range, it may not function correctly, leading to failures or poor performance.

Symptoms:

System instability or crashes after extended use.

Slow performance or no connection during high load.

Solution:

Thermal Management : Use proper heat dissipation strategies such as heat sinks or thermal vias if the DP83848KSQ/NOPB is located near high-power components that generate excess heat.

Environment Monitoring: Use temperature sensors on the board to monitor the operating environment. If the temperature exceeds the rated range (typically 0°C to 70°C for commercial-grade parts), consider adding ventilation or a fan.

7. Loopback and Self-Test for Diagnostics

Before jumping into more complex solutions, it’s always a good idea to run basic loopback tests and self-tests to isolate the issue. The DP83848KSQ/NOPB has built-in diagnostic features that allow you to perform self-tests and check the internal registers.

Symptoms:

Inconsistent or failing Ethernet connections that can’t be easily traced to external causes.

Solution:

Loopback Test: Configure the PHY to perform a loopback test, which allows you to send data out and receive it back through the same interface. This can help identify issues with the PHY itself or the PCB traces.

Diagnostic Registers: Read the diagnostic registers on the PHY to gain insights into the link status and potential error conditions. Look for link status, speed settings, and duplex modes.

Use the built-in self-test feature to validate if the PHY is functioning as expected, and run it periodically to detect any anomalies.

8. Firmware and Configuration Optimization

Sometimes, performance issues can be traced to suboptimal configurations in the system firmware or low-level driver settings. Customizing these settings can lead to significant improvements in network stability and speed.

Symptoms:

Devices that seem to work under light load but fail under heavy network traffic.

High latency or jitter in the network.

Solution:

Fine-tuning Configuration: Adjust the Tx/Rx buffer size and interrupt moderation settings. Increasing buffer sizes can help prevent data loss under heavy loads.

Offloading Features: Enable TCP/IP offloading features like Checksum offload or Segmentation offload in the system’s firmware to offload network processing from the main CPU to the PHY.
