This article explores the practical application of the SP3232EEY-L/TR chip in serial Communication Modules . It delves into the specific features and benefits of the SP3232EEY-L/TR, its role in enhancing communication systems, and real-world use cases where this chip plays a crucial part in improving reliability and performance. The article also highlights how this chip is utilized in various industries, providing insights into its versatility and effectiveness.

SP3232EEY-L/TR, serial communication, RS-232, communication module , chip integration, voltage level conversion, industrial applications, data transmission, UART, signal processing.

Understanding the SP3232EEY-L/TR Chip and Its Role in Serial Communication Modules

Serial communication has been the cornerstone of data exchange in electronic systems for decades. From simple point-to-point communications to complex industrial control systems, serial protocols such as RS-232, RS-485, and UART (Universal Asynchronous Receiver-Transmitter) have been fundamental in ensuring reliable data transfer. In this context, the SP3232EEY-L/TR chip by Sipex (now part of Maxim Integrated) has become a critical component in many communication systems due to its versatility, robustness, and ease of integration.

What is the SP3232EEY-L/TR?

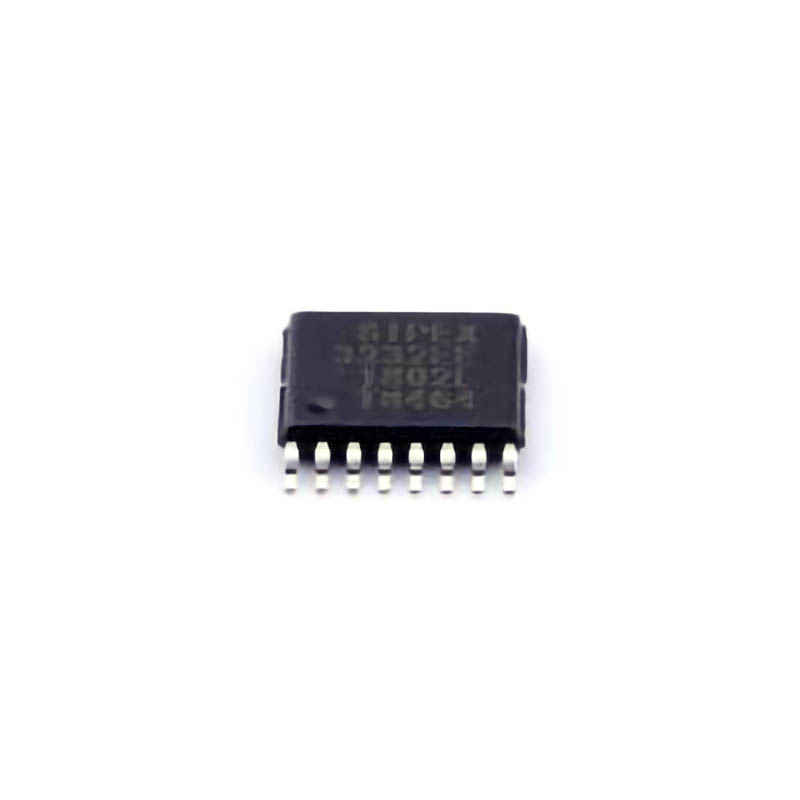

The SP3232EEY-L/TR is a low-voltage, multi-channel, and highly integrated level shifter and signal conditioner designed for serial communication systems. It’s primarily used to convert voltage levels between different serial communication standards, such as converting the logic levels of modern micro Controllers (typically 3.3V or 5V) to the RS-232 standard (which often requires ±12V signals). This makes it a versatile solution for many types of Embedded systems, industrial equipment, and communication devices.

The chip is designed to handle high-speed data transmission while maintaining low Power consumption, making it an ideal choice for a wide range of applications, from portable devices to embedded systems that require stable communication in challenging environments.

Key Features of the SP3232EEY-L/TR

Low Operating Voltage: Operating at a supply voltage of 3.0V to 5.5V, the SP3232EEY-L/TR is ideal for modern electronics, which often use lower voltages to minimize power consumption.

RS-232 Level Conversion: It is designed to interface directly with RS-232 devices, providing the necessary voltage shifts and protection for signals.

Integrated Charge Pumps: The chip uses integrated charge pumps to generate the necessary higher voltage levels (+12V, -12V) from the low supply voltage, enabling communication over long distances without the need for external voltage regulators.

Multiple Communication Channels: The SP3232EEY-L/TR supports multiple channels for data transmission, with up to two transmit (TX) and two receive (RX) lines, which allows it to handle duplex communication efficiently.

Low Power Consumption: With low quiescent current and low power draw during operation, the chip is suitable for battery-operated or energy-efficient designs.

Protection Features: The chip is designed with built-in protection features, including overvoltage, thermal shutdown, and short circuit protection, ensuring reliability in industrial environments.

How the SP3232EEY-L/TR Enhances Serial Communication Modules

In serial communication, especially when using protocols like RS-232, signal integrity is paramount. The SP3232EEY-L/TR ensures reliable communication by maintaining proper voltage levels for both the logic signals and the transmission medium. This chip’s ability to handle level shifting without introducing significant noise or latency makes it an indispensable part of serial communication modules.

Modern communication systems often need to interface with legacy equipment that still relies on the RS-232 protocol, which operates at a different voltage level compared to contemporary micro Controllers or embedded systems. The SP3232EEY-L/TR bridges this gap, ensuring that new designs can communicate seamlessly with older devices without the need for complex or bulky level-shifting circuitry.

Applications in Various Industries

The SP3232EEY-L/TR is not just a useful tool in academic or prototype projects but is also used extensively in real-world industrial and commercial applications. Some of the industries benefiting from this chip include:

Industrial Automation: In manufacturing facilities, automation systems often rely on serial communication to control and monitor machinery. The SP3232EEY-L/TR allows these systems to interface with older control equipment, ensuring smooth data exchange and enabling reliable operations even in harsh environments.

Embedded Systems: Many embedded system designers prefer using chips like the SP3232EEY-L/TR for their compact size, low power requirements, and ability to handle both low-voltage logic and traditional communication standards like RS-232.

Point of Sale (POS) Systems: Retail and hospitality industries use serial communication for POS systems to interface with barcode scanners, receipt printers, and other peripherals. The SP3232EEY-L/TR ensures these devices can communicate effectively, even in noisy environments.

Medical Devices: Communication between medical instruments is critical, and the SP3232EEY-L/TR's reliable data transmission capabilities are used in medical devices where both accuracy and stability are essential.

Consumer Electronics: Devices like smartphones, tablets, and printers use serial communication for data transfer. The SP3232EEY-L/TR can be found in the peripheral circuits of these devices, facilitating communication between different components.

Advantages of Using SP3232EEY-L/TR in Serial Communication Modules

Simplified Design: The integration of level shifting, signal conditioning, and protection features into a single chip simplifies the overall design of communication systems, reducing component count and PCB size.

Reliability: The chip's robustness, with built-in protections against overvoltage, short circuits, and thermal shutdown, ensures that communication modules remain operational even under adverse conditions.

Cost Efficiency: By integrating multiple functions into a single package, the SP3232EEY-L/TR reduces the need for external components, lowering overall system cost while improving reliability.

Ease of Use: Its ease of use and integration into existing systems make the SP3232EEY-L/TR an attractive choice for engineers looking to quickly implement serial communication capabilities into their designs.

Real-World Use Cases and Practical Implementation of SP3232EEY-L/TR in Serial Communication Modules

Having established the technical background and benefits of the SP3232EEY-L/TR, it’s crucial to look at real-world applications to understand its practical impact. Below, we explore several case studies and application examples where this chip has been successfully integrated into communication modules across different industries.

Case Study 1: Industrial Automation - PLC Communication

In an industrial automation setup, Programmable Logic Controllers (PLCs) are often used to control machinery, robots, and other automation equipment. These systems require reliable communication to exchange data with sensors, actuators, and other devices. However, older PLC systems often use RS-232 for communication, while modern controllers may use TTL or other lower voltage logic levels.

In this scenario, the SP3232EEY-L/TR serves as a key component for level-shifting between the microcontroller's low voltage and the higher RS-232 voltage levels used by the PLCs. The chip ensures that communication is stable, even in environments with electrical noise or temperature extremes.

By using the SP3232EEY-L/TR, system integrators can replace bulky and complex external level-shifting circuits with a single integrated solution. This not only saves space and reduces costs but also enhances the reliability and longevity of the communication system.

Case Study 2: Automotive Diagnostics - OBD-II Interfaces

The On-Board Diagnostics (OBD-II) system in vehicles uses serial communication (RS-232 or similar) to interface between diagnostic tools and a vehicle's Electronic Control Units (ECUs). The SP3232EEY-L/TR is used in diagnostic adapters and communication modules to provide the necessary level-shifting between the OBD-II interface and modern diagnostic tools that use TTL logic levels.

Using the SP3232EEY-L/TR, automotive engineers can develop compact, low-power, and cost-effective diagnostic tools that communicate seamlessly with a variety of vehicle systems. This facilitates vehicle diagnostics, maintenance, and performance monitoring, all of which are critical for modern automotive technology.

Case Study 3: Home Automation - Smart Home Devices

In smart homes, devices like thermostats, light controllers, and security cameras often rely on serial communication to interface with home automation hubs. The SP3232EEY-L/TR chip is commonly used in these devices to handle communication between low-voltage logic circuits in microcontrollers and higher-voltage RS-232-based hubs.

A smart thermostat, for example, may need to communicate with a home automation gateway via RS-232. By incorporating the SP3232EEY-L/TR, manufacturers can ensure that the thermostat can reliably send and receive data while keeping power consumption low and minimizing component size. This helps in producing more efficient, reliable, and cost-effective smart devices.

Case Study 4: Networking Equipment - Routers and Switches

In networking equipment, serial communication modules are frequently used for management, debugging, and configuration purposes. Many routers and network switches still rely on RS-232 or similar serial protocols for console interfaces, where administrators can access and configure the device.

The SP3232EEY-L/TR chip plays a critical role in these systems by enabling easy communication between the low-voltage microcontroller or FPGA that controls the device and the console port that uses RS-232. It also ensures that the signals are correctly conditioned, allowing for accurate and error-free communication.

Using this chip simplifies the design of these devices and ensures they meet the communication standards necessary for troubleshooting and remote configuration.

Real-World Benefits

The real-world applications of the SP3232EEY-L/TR extend across a wide variety of industries, providing solutions that enhance communication reliability, reduce design complexity, and ensure robust data transfer. Its ability to handle voltage-level conversions efficiently and cost-effectively makes it an essential component in modern communication systems.

By using the SP3232EEY-L/TR, developers and engineers can focus more on the core functionality of their systems rather than dealing with the intricacies of voltage-level management and signal conditioning. This leads to faster time-to-market, reduced costs, and improved performance.

Conclusion

The SP3232EEY-L/TR is a versatile and essential component in serial communication modules, offering robust solutions for level-shifting, signal integrity, and power efficiency. From industrial automation to consumer electronics, its applications are widespread, ensuring that communication between modern devices and legacy equipment is seamless and reliable.

Whether you are designing communication systems for embedded applications, industrial equipment, or consumer devices, the SP3232EEY-L/TR provides the tools needed to integrate RS-232 communication into your designs with ease and efficiency.
