Understanding the BAV99 W Diode and Identifying Common Issues

The BAV99 W is a widely used dual switching diode with excellent characteristics that make it suitable for various applications, especially in high-speed switching and signal processing circuits. However, as with all components, the BAV99W can occasionally experience pe RF ormance issues that can affect the functionality of the entire circuit.

1. Overview of the BAV99W Diode

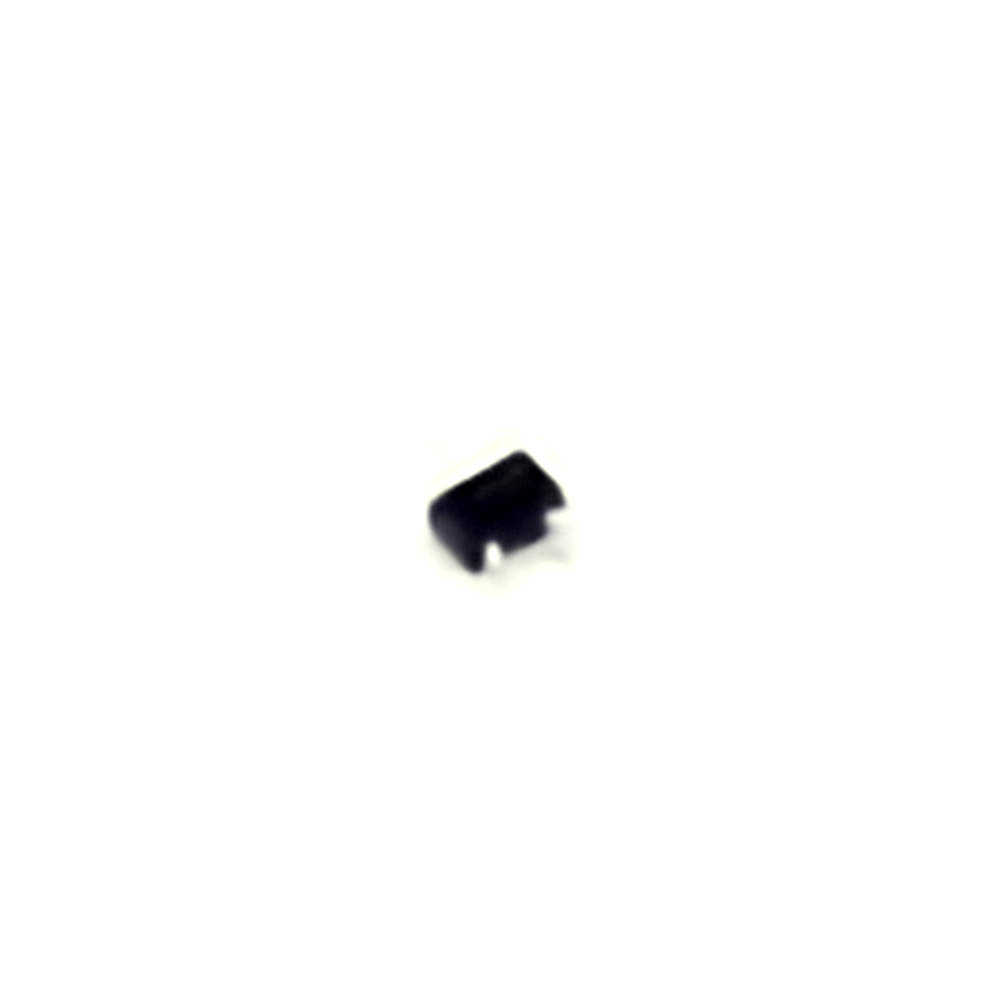

The BAV99W is a dual diode array typically used for high-speed switching in digital and analog circuits. It consists of two Diodes in a single package, making it a compact and cost-effective solution for signal routing, switching, and clamping. Common applications include TV tuners, digital logic circuits, and RF communication devices.

The key features of the BAV99W include:

Fast switching speed: Ideal for high-frequency applications.

Low reverse recovery time: Useful in high-speed circuits.

Compact package: Saves space on PCBs, making it suitable for densely packed designs.

2. Common Issues Faced with BAV99W Diodes

Though reliable, the BAV99W diode can experience certain issues that may affect its performance. Understanding the common problems and their solutions is essential for anyone working with this diode. Below are some of the frequent challenges:

a) Incorrect Orientation in the Circuit

One of the most common issues when using diodes like the BAV99W is incorrect placement or orientation. Diodes are polarized components, meaning they only allow current to flow in one direction. Installing the diode backward can result in circuit failure, malfunction, or damage to other components.

Symptoms of Incorrect Orientation:

The circuit fails to operate.

The diode becomes hot, which could lead to permanent damage.

Excessive current draw or voltage drops across the diode.

Solution:

Always refer to the datasheet and ensure the anode and cathode are correctly aligned according to the circuit design. The cathode is typically marked with a stripe on the BAV99W package, which helps in identifying the correct orientation.

b) Overheating and Excessive Power Dissipation

The BAV99W, like most diodes, generates heat when operating. If the current through the diode exceeds the maximum rated current, or if it is exposed to higher than recommended operating voltages, it may overheat and result in thermal damage.

Symptoms of Overheating:

Diode package becomes warm or hot to the touch.

Circuit behavior becomes erratic or unstable.

Visible discoloration or damage to the diode package.

Solution:

To prevent overheating, always ensure that the current and voltage specifications outlined in the BAV99W datasheet are not exceeded. Use heat sinks if necessary for power-hungry applications or consider using parallel diodes if the current demands are high. Proper PCB design to aid in heat dissipation, such as providing sufficient copper area around the diode, can also mitigate the problem.

c) Leakage Current Beyond Specified Limits

One of the main issues that can arise in BAV99W diodes, especially in low-power applications, is leakage current. Leakage occurs when a small current flows in the reverse direction even when the diode is not conducting. This can be particularly problematic in high-impedance circuits or applications requiring high precision.

Symptoms of Leakage Current:

Unwanted current flow in the reverse direction.

Reduced voltage levels in the circuit.

Reduced efficiency or malfunction in high-precision applications.

Solution:

Check the reverse leakage current (typically in the range of nanoamperes for the BAV99W) in the datasheet and ensure the diode is operating within its specified limits. If leakage is significant, consider replacing the diode with a new one or selecting a diode with lower reverse leakage for more sensitive applications.

d) Short Circuit or Open Circuit Failure

A short circuit or open circuit failure can occur due to physical damage, such as when the diode is exposed to excessive current or mechanical stress. A short circuit will allow current to flow uncontrollably, while an open circuit will prevent current flow entirely.

Symptoms of Short Circuit:

Unusual heating of the diode.

Circuit failure with excessive current draw.

Damaged tracks or components in the PCB.

Symptoms of Open Circuit:

No current flows through the diode, leading to circuit malfunction.

Incorrect voltage levels in the circuit.

Solution:

In the case of a short circuit, replace the damaged diode and check the surrounding components for any signs of stress or failure. For open circuit conditions, ensure that the diode is correctly mounted and that no mechanical damage has occurred during installation or operation. Always test the diode with a multimeter to ensure it is functioning properly before replacing it.

3. Troubleshooting Techniques for BAV99W Diodes

When encountering issues with the BAV99W diode, systematic troubleshooting steps can help you identify the problem and implement the correct solution.

a) Visual Inspection

Start with a visual inspection of the diode and surrounding components. Look for signs of physical damage such as cracked packaging, burnt areas, or discoloration. Check the orientation of the diode to ensure it is installed correctly.

b) Check Voltage and Current Parameters

Use a multimeter to measure the voltage drop across the diode and check whether it matches the expected values based on the datasheet. If the diode is not conducting as expected, check the applied voltage and current to ensure they are within the recommended operating ranges.

c) Test for Reverse Leakage

To test for reverse leakage, you can apply a small reverse bias voltage to the diode and measure the current that flows through it. If the leakage current exceeds the specified limits, the diode may need to be replaced.

d) Check for Short Circuit or Open Circuit Conditions

Use a multimeter to test the continuity of the diode and verify whether it is shorted or open. This can help quickly identify any catastrophic failure in the diode.

Practical Solutions and Preventive Measures for BAV99W Diode Issues

In addition to identifying common issues, understanding how to prevent these problems is key to maintaining the reliability and longevity of the BAV99W diode in your circuit. This section covers practical solutions, design tips, and preventive measures that will help you achieve optimal performance.

4. Preventive Measures to Avoid Common Problems

a) Proper Circuit Design and Layout

One of the best ways to prevent issues with the BAV99W diode is to focus on good circuit design practices. This includes ensuring proper component placement, using appropriate trace widths, and providing adequate heat dissipation for components under load.

When designing a circuit with the BAV99W diode:

Place the diode away from heat-sensitive components to prevent thermal damage.

Use ground planes to minimize noise and ensure stable performance.

Ensure proper current limiting in the circuit to prevent overcurrent conditions that could lead to overheating or failure.

b) Use of Heat Sinks and Thermal Management

For applications where the diode is exposed to high power or where heat dissipation is critical, consider using heat sinks or other thermal management techniques. This is particularly important for high-speed switching applications where the diode operates at higher frequencies and may generate significant heat.

In some cases, choosing a diode with a lower forward voltage or higher thermal conductivity can reduce power dissipation.

c) Testing and Monitoring Circuits Regularly

Regular testing and monitoring of the circuit can help identify potential issues before they escalate. Use test equipment like oscilloscopes and multimeters to monitor the behavior of the BAV99W diode during operation, checking for abnormal current flow, voltage fluctuations, or signs of thermal stress.

d) Choosing the Right Diode for the Application

In some cases, the BAV99W may not be the best choice for certain applications. If the circuit involves high power, excessive heat, or extreme conditions, consider using a diode with a higher power rating or better thermal properties. Be sure to assess the application requirements thoroughly before selecting a diode.

5. Replacing a Faulty BAV99W Diode

If troubleshooting indicates that the BAV99W diode is defective and beyond repair, replacing it is the best solution. Here are the steps to follow:

a) Order the Right Replacement Part

Ensure that the replacement part is the same or equivalent to the BAV99W. Always verify the specifications of the replacement to ensure compatibility with your circuit.

b) Install the Replacement Diode

Carefully install the replacement diode, ensuring correct orientation and secure soldering. Double-check the placement of the component and ensure there is no mechanical stress on the new diode.

c) Test the Circuit

Once the new diode is installed, test the circuit to ensure proper operation. Measure the voltage and current parameters, and ensure the circuit is functioning as expected.

6. Conclusion: Maximizing the Longevity and Performance of the BAV99W Diode

By understanding the common troubleshooting methods and preventive measures for BAV99W diodes, engineers and technicians can minimize downtime and ensure the long-term performance of their circuits. Regular maintenance, proper installation, and choosing the right components are key to preventing common issues and maximizing the reliability of the BAV99W diode in electronic systems.

With careful attention to detail and proactive problem-solving, you can ensure that your BAV99W-equipped circuits perform optimally, providing consistent and reliable results in demanding applications.
