Understanding the MT25QL128ABA1ESE-0SIT Flash Memory Chip

The MT25QL128ABA1ESE-0SIT is part of the Micron MT25Q series, a line of quad-level cell (QLC) flash memory devices designed for high-density storage in embedded systems. Offering capacities of up to 128Gb, it is a popular choice for consumer electronics, automotive applications, IoT devices, and more. However, as with any electronic component, users may occasionally encounter issues that can affect its performance or cause it to malfunction. This first part of the article will explore common troubleshooting issues associated with the MT25QL128ABA1ESE-0SIT and suggest ways to resolve them.

1. Power Supply and Voltage Issues

One of the most common causes of issues with flash memory devices, including the MT25QL128ABA1ESE-0SIT, is an unstable or incorrect power supply. Flash memory devices are sensitive to voltage fluctuations, and incorrect voltages can lead to malfunction or permanent damage.

Symptoms:

The memory chip doesn't initialize properly.

The system fails to read or write data to the memory.

Device resets or crashes during data transfer.

Solution:

Ensure that the supply voltage is within the recommended range for the MT25QL128ABA1ESE-0SIT. This memory chip typically requires a supply voltage of 2.7V to 3.6V. If you're using a power supply with fluctuating voltages, try using a more stable or regulated power source. Additionally, check the power integrity by using a multimeter to verify the voltage at the memory chip’s VCC pin.

2. Connection Issues: Soldering and Pin Layout

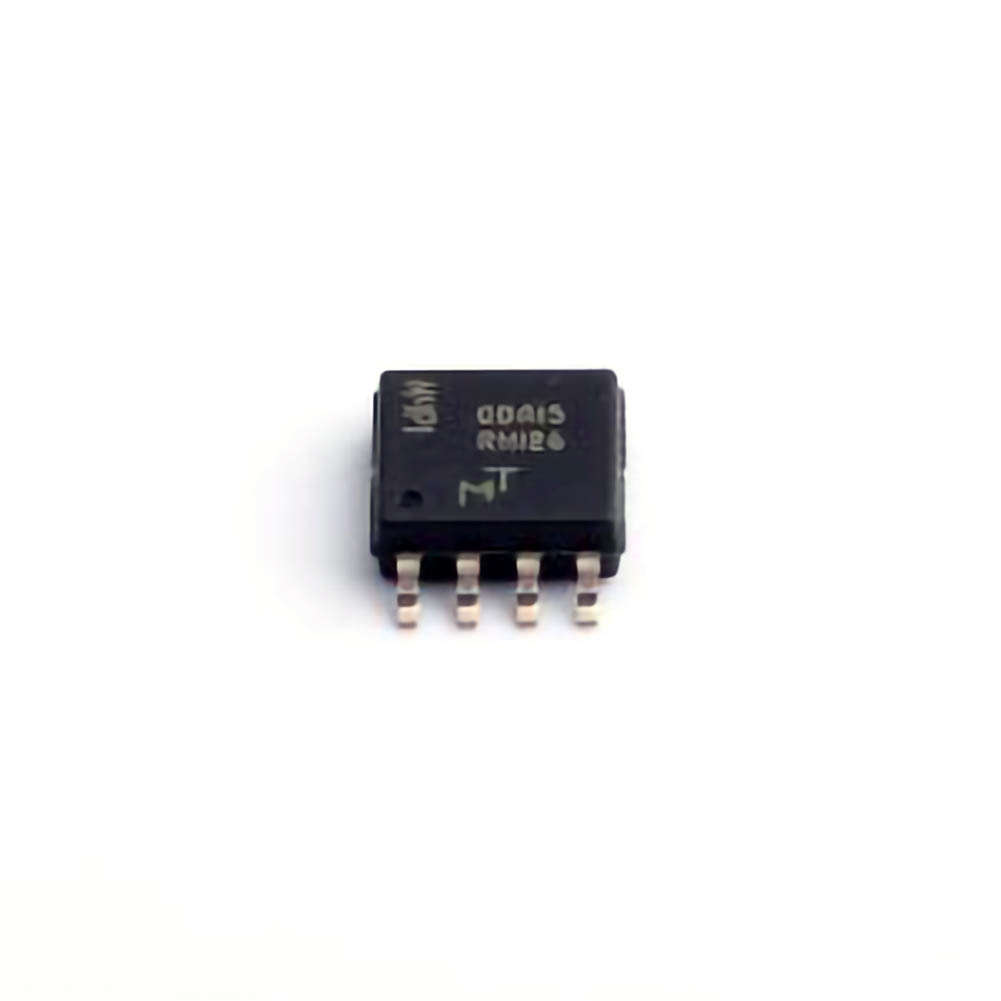

Improper connections or poor soldering can cause intermittent or complete failure of the flash memory device. The MT25QL128ABA1ESE-0SIT uses a standard 8-pin SOIC (Small Outline Integrated Circuit) package, and any issues with pin connection can prevent the device from working correctly.

Symptoms:

No communication between the memory chip and the processor.

Memory access errors or data corruption.

Inconsistent or no read/write operations.

Solution:

Inspect the soldering quality of the pins to ensure there are no cold solder joints, bridges, or broken connections. Use a magnifying tool to carefully check the PCB layout and solder joints under good lighting. If necessary, rework the soldering or use desoldering equipment to correct poor joints. Additionally, verify that the pinout corresponds to the correct configuration, especially when designing custom PCBs or reworking existing ones.

3. Incorrect SPI Mode or Configuration

The MT25QL128ABA1ESE-0SIT typically communicates with the host processor over an SPI (Serial Peripheral interface ) bus. If the SPI mode or other configuration settings are incorrect, the device might fail to respond, causing read or write errors.

Symptoms:

Unable to communicate with the memory chip.

Command execution fails, such as read or erase commands.

Data corruption or unexpected behavior during reads/writes.

Solution:

Ensure that the SPI interface is configured correctly. The MT25QL128ABA1ESE-0SIT supports multiple SPI modes (0, 1, 2, and 3), and it's important that the Clock polarity (CPOL) and clock phase (CPHA) settings match between the memory chip and the microcontroller or host processor. Refer to the device datasheet for the correct register settings, especially for clock frequency and mode settings.

Also, verify the following SPI-related parameters:

Clock speed: Ensure the clock speed is within the supported range for the device.

Chip select: Ensure the chip select (CS) line is correctly asserted.

MOSI/MISO lines: Check the data lines for proper configuration and signal integrity.

4. Command Timeout and Delays

Flash memory operations often involve latency and may require a specific amount of time for certain tasks, such as programming, erasing, or reading large blocks of data. If the memory controller doesn’t account for these delays, it could result in command timeouts or incomplete operations.

Symptoms:

Timeout errors or communication failures.

Incomplete reads or writes.

System instability when interacting with memory.

Solution:

Ensure that your system is correctly managing the command timings and delays for the MT25QL128ABA1ESE-0SIT. Refer to the chip’s datasheet for information on command timings and ensure that the processor respects these requirements. Many modern microcontrollers allow for customizable timeout settings that can help you synchronize your read/write operations with the flash memory.

Additionally, ensure that the host controller properly waits for the chip’s status register to indicate readiness before issuing further commands.

5. Write Protection or Locking Issues

Many flash memory chips, including the MT25QL128ABA1ESE-0SIT, have built-in write protection mechanisms to prevent accidental overwriting of critical data. If these mechanisms are incorrectly enabled or the memory chip is inadvertently locked, it can result in an inability to write or modify data.

Symptoms:

Writes to memory fail or are not committed.

Data on the flash memory cannot be updated or erased.

The device responds with a "write protection" error.

Solution:

Check the WP (Write Protect) pin and any software-based write protection settings. The MT25QL128ABA1ESE-0SIT typically includes a pin that can be used to assert hardware write protection. If this pin is held low, it will prevent writes to the chip. Ensure this pin is set to the correct state for your application, or disable software-based write protection in the device’s control registers.

In some cases, the device may also feature an "Erase Sector Lock" feature, which requires specific commands to unlock sectors for modification. Refer to the datasheet for detailed information on how to configure these protections correctly.

Advanced Troubleshooting and Solutions for MT25QL128ABA1ESE-0SIT

While the previous section covered basic troubleshooting steps, advanced issues may arise with the MT25QL128ABA1ESE-0SIT due to more complex interactions or hardware/software configurations. In this part, we will explore advanced troubleshooting solutions that can help you solve more intricate problems and optimize the performance of the MT25QL128ABA1ESE-0SIT flash memory chip.

1. Memory Block Erasure and Wear Leveling Problems

Flash memory devices have a finite number of program/erase cycles, and over time, certain blocks of memory may become worn out, leading to read/write failures. The MT25QL128ABA1ESE-0SIT may also experience issues with wear leveling if the controller does not manage the memory blocks properly.

Symptoms:

Inability to erase or write to specific memory blocks.

System crashes or instability when accessing certain areas of memory.

Increased error rates over time, especially during write operations.

Solution:

The MT25QL128ABA1ESE-0SIT uses wear leveling algorithms to distribute writes across memory blocks evenly. If wear leveling is not functioning correctly, certain blocks may become overused, leading to failures. To address this, check the system’s wear leveling configuration and ensure that the memory controller is correctly distributing writes across the entire memory array.

Additionally, you can use specialized diagnostic tools or test modes to identify and mark bad blocks. If necessary, move your data to a different part of the memory to avoid problematic blocks.

2. ECC (Error Correction Code) Failures

As the MT25QL128ABA1ESE-0SIT is a high-density flash memory device, it may be susceptible to data corruption due to noise or physical defects. To mitigate these errors, the device may use Error Correction Code (ECC) to ensure data integrity. However, ECC failures can sometimes occur, especially if there is a malfunction in the ECC circuitry or improper handling of ECC errors.

Symptoms:

Data corruption or unexpected behavior in the stored data.

Frequent read/write errors.

System crashes or memory corruption during operations.

Solution:

If ECC errors are suspected, verify that your system is correctly reading and writing ECC data. Ensure that the ECC engine is properly initialized and configured to handle errors. In some cases, you may need to use a more advanced error detection or correction algorithm to manage critical data. If your platform supports it, use the built-in ECC error counters to track the frequency and types of errors occurring on the device.

3. Firmware or Software Compatibility Issues

Sometimes, issues with the MT25QL128ABA1ESE-0SIT may arise from firmware or software incompatibility rather than hardware malfunctions. In particular, incorrect driver versions, outdated firmware, or software bugs can cause erratic behavior and failure to interact with the memory chip properly.

Symptoms:

Inconsistent memory behavior across different software versions.

Inability to detect the flash memory chip.

System crashes when attempting to interact with the memory.

Solution:

Check that you are using the latest firmware and drivers for the MT25QL128ABA1ESE-0SIT. If you're using custom software, ensure that it’s fully compatible with the specific version of the MT25QL128ABA1ESE-0SIT in your system. Updating or patching the firmware or drivers can often resolve compatibility issues. Additionally, ensure that your system is correctly handling memory access commands and performing error checks during memory reads and writes.

4. Environmental Factors and Heat Issues

The MT25QL128ABA1ESE-0SIT, like other flash memory devices, can experience issues related to heat and environmental stress. Excessive temperature changes or poor thermal management can lead to reduced performance or permanent damage.

Symptoms:

Memory access errors under heavy load.

Unstable behavior at higher operating temperatures.

System failures during long periods of data access.

Solution:

Make sure the device is operating within the recommended temperature range (typically -40°C to +85°C for industrial applications). If the device is overheating, consider improving heat dissipation by adding heat sinks, improving airflow, or using better thermal pads.

Additionally, monitor the operating temperature using thermistors or sensors to ensure the device remains within safe limits. You may also need to adjust your software or firmware to reduce the device's workload during high-temperature conditions.

Conclusion:

The MT25QL128ABA1ESE-0SIT flash memory chip is a powerful and reliable storage solution for a variety of embedded systems, but like all complex devices, it is not immune to issues. By understanding the most common causes of problems and applying the appropriate solutions, you can keep the MT25QL128ABA1ESE-0SIT performing optimally. Always refer to the datasheet and manufacturer guidelines when troubleshooting and ensure that your power supply, software configuration, and environmental conditions are all optimized for the best possible performance.
