Understanding the PIC12F508-I/P Microcontroller and Common Issues

The PIC12F508-I/P microcontroller from Microchip Technology is a popular 8-bit device that has found wide application in embedded systems due to its simplicity, low Power consumption, and flexibility. As with any microcontroller, there are some common issues users encounter while designing circuits or programming the device. Understanding these issues and knowing how to troubleshoot them is essential for anyone working with the PIC12F508-I/P.

Overview of the PIC12F508-I/P

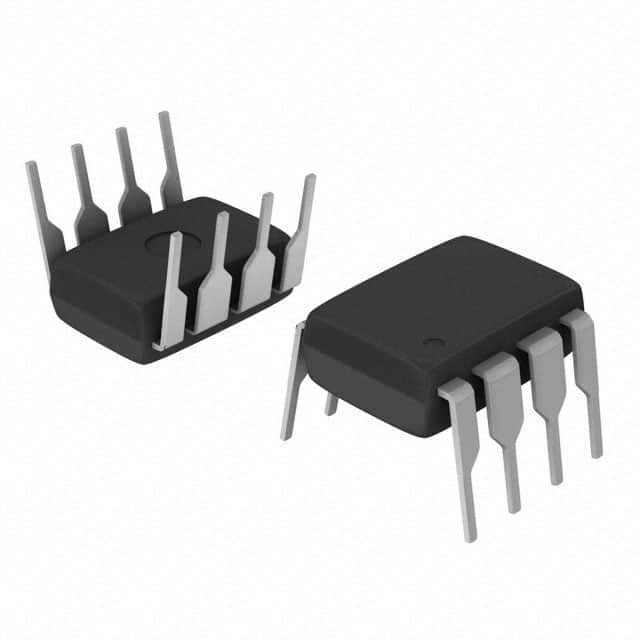

The PIC12F508-I/P belongs to the PIC12 family of microcontrollers, which are designed for low-cost, low-power, and small-footprint embedded applications. It features a 13-bit program counter, a 256-byte Flash Memory , and a 16-byte RAM. The PIC12F508 also has a 5-bit wide instruction set, which makes it simple and efficient for small control tasks.

While the PIC12F508-I/P is robust, like any microcontroller, there are several common issues that users may face during circuit design, programming, and debugging. These issues can range from power supply problems to software bugs, and each one requires a different troubleshooting approach.

Common Issues and Troubleshooting Steps

Power Supply Problems

One of the most common issues faced during development is an unstable or incorrect power supply. The PIC12F508-I/P is designed to operate at a voltage range of 2.0V to 5.5V. Operating outside this range can result in unreliable behavior, malfunctioning, or even permanent damage to the microcontroller.

Solution: First, ensure that the power supply is stable and within the specified range. Use a regulated power supply or voltage regulator circuit. Additionally, verify that the power lines to the Vdd and Vss pins are properly connected, and use decoupling capacitor s (typically 0.1µF and 10µF) close to the microcontroller’s power pins to filter noise and prevent voltage spikes.

Incorrect Oscillator Configuration

The PIC12F508-I/P uses an internal oscillator for Timing purposes, but it can also use external oscillators. A common issue is misconfiguring the oscillator or failing to enable the correct oscillator mode in the code. This can result in the microcontroller not functioning as expected.

Solution: Check the configuration bits (also known as fuse bits) in the microcontroller’s initialization code. These configuration bits set the oscillator type and clock source. Ensure that you select the correct oscillator mode (e.g., internal or external) depending on your application. Also, ensure that any external components needed for the oscillator circuit are properly connected.

Program Code Not Executing Properly

Another common issue is when the program code does not execute as expected, even though the hardware seems to be functioning correctly. This can occur due to programming errors, incorrect memory locations, or issues with the reset sequence.

Solution: Double-check the program code, especially the initialization sequence. Ensure that the microcontroller is properly reset at power-up. A common issue is failing to initialize the stack pointer or watchdog timer. Also, make sure that the program counter is correctly pointing to the start of the program after reset. Use a debugger or an in-circuit emulator (ICE) to step through the code and verify that the microcontroller is executing as expected.

I/O Pin Configuration Issues

The PIC12F508-I/P features several I/O pins that can be configured as either inputs or outputs. If the I/O pins are not configured correctly, the microcontroller may behave unpredictably, especially if external devices are connected to the pins.

Solution: Ensure that the TRIS (Tri-State) register is set correctly to configure the pins as inputs or outputs. Additionally, check the LAT (Latching) register when using output pins to ensure the correct logic level is driven. If the device has pull-up or pull-down resistors enabled by default, verify if the external circuit requires them.

Watchdog Timer Resets

The PIC12F508-I/P includes a watchdog timer that can reset the microcontroller if the software fails to reset the watchdog timer periodically. If the watchdog timer is not properly managed, it can cause unintended resets, which may appear as system malfunctions.

Solution: Review the software to ensure that the watchdog timer is either disabled if not needed or periodically reset in the main loop. You can disable the watchdog timer in the configuration bits, but if it is enabled, make sure that the code includes regular "kick" or reset instructions for the timer.

Inadequate Debugging Information

When developing code for embedded systems, debugging is often more challenging due to the lack of a traditional user interface . Not having proper debugging information can lead to extended development times and frustrating troubleshooting.

Solution: Utilize in-circuit debugging tools, such as a PICkit or MPLAB ICD, to monitor the program flow, set breakpoints, and inspect register values. Implement UART-based serial communication for logging purposes, allowing you to print messages or variable values to an external terminal for debugging.

Diagnostic Tools and Best Practices

When troubleshooting the PIC12F508-I/P, the following tools and practices can significantly streamline the process:

Multimeter: Use a multimeter to check the voltage levels at various points in the circuit, especially the Vdd, Vss, and I/O pins.

Oscilloscope: An oscilloscope can help identify issues related to timing and oscillators. It’s also useful for checking signal integrity on I/O pins.

In-Circuit Debugger/Programmer (PICkit): The PICkit is an affordable tool that can both program and debug the PIC12F508-I/P. It allows you to step through code, inspect memory and register values, and monitor pin states in real-time.

MPLAB X IDE: Microchip’s MPLAB X IDE provides an integrated environment for code development and debugging. It also allows you to simulate the microcontroller and check the execution of your program before deploying it to hardware.

Advanced Troubleshooting Techniques and Solutions for PIC12F508-I/P

Once you have mastered the basics of troubleshooting the PIC12F508-I/P microcontroller, it’s time to dive deeper into more advanced issues and solutions. In this section, we’ll explore additional techniques that will help you resolve more complex problems when working with the PIC12F508.

1. Interfacing with External Components

Many embedded systems require interfacing with external components such as sensors, motors, or communication devices. Improper configuration or faulty connections between the microcontroller and external components can lead to system failures. For example, if an I2C or SPI peripheral is not initialized correctly, communication errors can occur.

Solution: Carefully check the communication protocol settings (clock speed, bit order, etc.) and ensure that all external components are correctly powered and connected. Verify the pull-up or pull-down resistor requirements for the I2C bus and ensure that voltage levels are compatible between the microcontroller and external peripherals. Use a logic analyzer to capture and analyze signals on communication lines for further insights.

2. Interrupt Handling Issues

Interrupt handling can be a source of complex problems if not implemented correctly. Since the PIC12F508-I/P supports only a limited number of interrupts, mismanaging interrupt flags or not clearing interrupt sources properly can cause the program to become stuck or enter an infinite loop.

Solution: Double-check your interrupt service routine (ISR) to ensure it’s correctly handling interrupts. Always clear the interrupt flag at the start of the ISR to prevent re-triggering the interrupt. If you’re using global interrupts, make sure that global interrupt enable (GIE) and peripheral interrupt enable (PEIE) bits are correctly set.

3. Memory Overflow and Buffer Issues

Another advanced problem that may arise in embedded systems is memory overflow or buffer overrun, which can cause the microcontroller to crash or behave unpredictably. This can happen if you’re using arrays or buffers for storing data and exceed the allocated memory.

Solution: Carefully review your memory usage. Use the available RAM wisely and avoid using large arrays unless necessary. If you are working with strings or buffers, ensure that they have adequate space to store all the data you’re expecting. Implement bounds checking in your code to prevent buffer overflows.

4. Low Power Consumption Mode Troubleshooting

The PIC12F508-I/P is designed with low power consumption in mind. However, when using the microcontroller in low-power or sleep modes, it’s easy to make mistakes that prevent the device from entering or exiting sleep mode properly. These mistakes can lead to excessive current draw, defeating the purpose of using a low-power microcontroller.

Solution: Review your low-power configuration settings. Ensure that the sleep mode is correctly entered when necessary, and that peripherals are disabled during sleep to save power. If your application requires periodic wake-up, configure the watchdog timer or an external interrupt to wake up the device.

5. Software Timing Issues

Some PIC12F508-I/P applications rely on precise timing to control external devices, such as generating PWM signals or time delays. Software timing errors, such as improper loop timing or incorrect delay routines, can cause timing inconsistencies that impact system performance.

Solution: When precise timing is required, avoid using software delays (e.g., loops) for critical timing functions. Instead, use the microcontroller’s hardware timers for more accurate timing control. If you must use software delays, use a calibrated loop and measure the time using a reliable timing source (e.g., an oscilloscope or external timer) to ensure accuracy.

6. Programming and Debugging Tools

Using the right tools for programming and debugging can be the key to resolving many issues. If you’re struggling with a specific problem, investing in a better debugging tool or updating your software can sometimes make all the difference.

Solution: Make sure you're using the latest version of MPLAB X IDE and the appropriate programmer/debugger, such as the PICkit 3 or MPLAB ICD 4. These tools provide powerful debugging capabilities, including breakpoints, variable inspection, and real-time signal monitoring. Also, consider using a simulator to test your code before flashing it to hardware.

7. Dealing with EMI and Noise

Electromagnetic interference (EMI) and noise can be troublesome in embedded systems, especially when working with high-speed or analog components. If the PIC12F508-I/P is placed near noisy components, or if proper grounding and shielding aren’t used, you might experience unexpected resets or misbehavior.

Solution: Ensure that the microcontroller is well shielded from noisy components and that the power supply lines are properly decoupled. Ground planes should be used extensively to reduce noise, and components should be kept as far apart as possible to avoid interference.

Conclusion

Troubleshooting and solving issues with the PIC12F508-I/P microcontroller can be a complex but rewarding task. By understanding common issues like power supply problems, oscillator configuration errors, and software bugs, as well as utilizing the right tools and techniques, you can ensure the smooth development of your embedded systems. With the insights provided in this article, you should be better equipped to handle any challenge that arises while working with the PIC12F508-I/P.
