The ST3485EBDR is a versatile and reliable transceiver used in a variety of Communication applications. However, like any electronic component, it can sometimes experience issues. This article provides a detailed troubleshooting guide and effective solutions to ensure your ST3485EBDR performs optimally.

ST3485EBDR, troubleshooting, solutions, communication transceiver, electronics, device performance, signal integrity, hardware issues, circuit board, components, ST3485

Understanding the ST3485EBDR and Common Issues

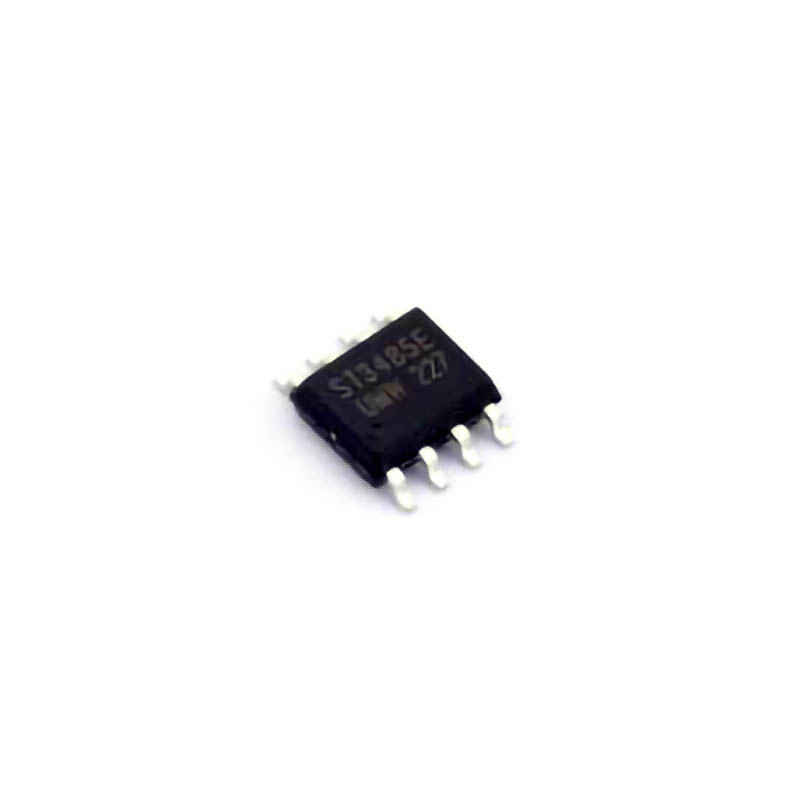

The ST3485EBDR is a high-performance transceiver designed for communication systems that require reliable data transmission and reception. Operating at speeds up to 12 Mbps, it supports both full and half-duplex modes, making it a popular choice for a wide range of electronic applications, including industrial automation, networking, and data acquisition systems.

However, despite its robust performance, users may encounter certain issues that can affect its functionality. Understanding the common problems and how to troubleshoot them is essential for ensuring continued, reliable operation. Here, we explore some of the most frequent issues and their potential causes.

1. Signal Integrity Problems

Signal integrity is one of the most common issues faced by users of the ST3485EBDR. This can manifest as poor data transmission, garbled or lost data, or unreliable signal reception. Signal integrity problems are often caused by issues in the physical layer, including:

Incorrect Termination Resistor: The ST3485EBDR requires appropriate termination to ensure proper signal strength. Incorrect or missing termination Resistors can lead to signal reflections, resulting in data corruption.

Poor PCB Layout: The layout of the printed circuit board (PCB) plays a crucial role in maintaining signal integrity. Long traces, improper grounding, or cross-talk between signals can cause interference, degrading the performance of the transceiver.

Cable Quality and Length: If the transmission lines or cables connected to the ST3485EBDR are too long or of poor quality, the signal may degrade, leading to transmission errors.

2. Power Supply Issues

Another frequent problem with the ST3485EBDR is power supply instability. The transceiver relies on a stable voltage supply to function correctly. Any fluctuation or noise in the power supply can cause erratic behavior or even failure of the device. Common power-related issues include:

Voltage Spikes or Drops: The ST3485EBDR is sensitive to voltage variations. Sudden spikes or drops can cause the chip to reset or malfunction.

Insufficient Power: If the power supply cannot deliver the required current to the transceiver, it may operate erratically or fail to transmit or receive data properly.

3. Communication Failures

In some cases, the ST3485EBDR may fail to communicate with other devices, even if the power supply and signal integrity appear to be functioning normally. This could be due to:

Incorrect Pin Configuration: The ST3485EBDR has several pins that configure its mode of operation (half-duplex, full-duplex, etc.). Incorrect pin settings can result in communication failures. Always check the datasheet and ensure the pin configuration matches your system's requirements.

Faulty Drivers or Receivers : If the Drivers or Receivers connected to the ST3485EBDR are faulty or not compatible, it can lead to communication issues.

Improper Baud Rate Setting: If the baud rate of the ST3485EBDR does not match that of the receiving device, data will not be transmitted or received properly. Ensure that both devices are operating at the same baud rate.

4. Overheating

Overheating is another potential issue with the ST3485EBDR. Like many electronic components, the transceiver generates heat during operation. If the heat is not properly dissipated, it can cause thermal stress, leading to performance degradation or even failure. Common causes of overheating include:

Insufficient Ventilation: Ensure that the device is installed in an environment with adequate airflow or cooling mechanisms to prevent it from overheating.

High Operating Voltage or Current: Operating the ST3485EBDR outside of its recommended voltage and current ranges can cause it to overheat.

Troubleshooting Solutions and Preventative Measures

Now that we’ve identified some common issues with the ST3485EBDR, let’s look at effective troubleshooting techniques and solutions to resolve these problems and improve the overall performance of the transceiver.

1. Improving Signal Integrity

To ensure the signal integrity of your ST3485EBDR, follow these solutions:

Correct Termination Resistors: Double-check the termination resistors on your system. Ensure they match the impedance requirements of your transmission lines and are placed as close as possible to the transceiver. The recommended impedance for the ST3485EBDR is typically 120 ohms, but always verify with the specific application requirements.

Optimized PCB Layout: To minimize signal degradation, carefully design the PCB layout. Keep trace lengths as short as possible, avoid sharp turns, and use ground planes to reduce noise. Minimize cross-talk by keeping data and power traces separate. Additionally, use decoupling capacitor s near the power pins of the ST3485EBDR to reduce high-frequency noise.

Shorter and Higher Quality Cables: Use high-quality twisted-pair cables for signal transmission and keep their length as short as possible to reduce signal loss. If possible, use shielded cables to minimize electromagnetic interference ( EMI ).

2. Stabilizing the Power Supply

To avoid power supply issues, ensure the following:

Stable Power Source: Use a regulated power supply to ensure a stable voltage. If your power source is prone to fluctuations, consider adding capacitors to smooth out the voltage supply. Additionally, check the voltage levels against the specifications in the datasheet (typically 3.3V or 5V).

Adequate Current Capacity: Make sure the power supply can provide enough current to support the transceiver’s operation. Underpowered devices are prone to malfunctions. Use a power supply with a current rating that exceeds the maximum current draw of the ST3485EBDR.

Filter Power Lines: Implement power filtering techniques, such as using ceramic capacitors (0.1µF to 1µF) close to the power pins, to eliminate high-frequency noise and spikes.

3. Ensuring Proper Communication

For reliable communication, follow these steps:

Verify Pin Configuration: Double-check the pin configuration and mode selection for the ST3485EBDR. Ensure that the device is set to the correct mode (half-duplex or full-duplex) and that all control lines (e.g., RE, DE) are properly configured. Refer to the datasheet to confirm the correct pinout for your application.

Check Drivers and Receivers : Inspect the drivers and receivers connected to the ST3485EBDR. If there are any compatibility issues or if these components are malfunctioning, communication will be compromised. Replacing or upgrading incompatible devices is often necessary.

Match Baud Rates: Always ensure that the baud rates of the ST3485EBDR and the other devices in the communication network match. You can typically set the baud rate via software configuration or by selecting the appropriate clock source for the transceiver.

4. Preventing Overheating

To prevent the ST3485EBDR from overheating:

Proper Cooling: Ensure that the device is installed in a well-ventilated area. If necessary, use heatsinks or active cooling systems (like fans) to dissipate heat more efficiently.

Avoid Overvoltage: Keep the device within its specified voltage range (typically 3.3V or 5V). Applying voltages higher than the recommended range can result in excessive heat generation and damage to the transceiver.

Monitor Temperature: Use temperature sensors to monitor the device’s temperature during operation. If the temperature exceeds safe limits, implement additional cooling solutions or reduce the workload on the device.

5. General Maintenance Tips

Regular Firmware Updates: If applicable, make sure your system firmware is up-to-date to ensure that the ST3485EBDR is operating with the latest optimizations and bug fixes.

Thorough Testing: Before deploying the ST3485EBDR in a critical application, perform thorough testing in various conditions (voltage, temperature, data rates, etc.) to ensure stable and reliable operation.

Conclusion

The ST3485EBDR is a powerful and reliable transceiver, but like all electronic devices, it requires proper handling, installation, and maintenance to function optimally. By following the troubleshooting and solution strategies outlined in this article, you can resolve common issues and prevent future problems. With careful attention to signal integrity, power supply stability, communication settings, and temperature control, the ST3485EBDR will continue to provide dependable performance in your communication systems.
