The UPD720201K8-701-BAC-A , a versatile USB 3.0 host controller, is widely recognized for its high performance and efficiency in managing data transfer rates in modern high-speed USB interface s. This article delves into the critical design principles, applications, and advantages of integrating the UPD720201K8-701-BAC-A into various systems, highlighting its role in shaping the future of USB technology.

UPD720201K8-701-BAC-A, USB 3.0, high-speed USB interface, host controller, USB design, data transfer, Embedded systems, performance optimization, hardware architecture, USB technology.

Introduction: Understanding the Importance of USB in Modern Systems

Universal Serial Bus (USB) has become the cornerstone of modern data transfer, serving as the primary interface for communication between computers, peripherals, and various devices. Over the years, USB technology has evolved rapidly, providing faster data rates and more reliable connections. From USB 1.0’s initial 12 Mbps to USB 3.0’s impressive 5 Gbps and beyond, each iteration has contributed significantly to the demands of modern computing.

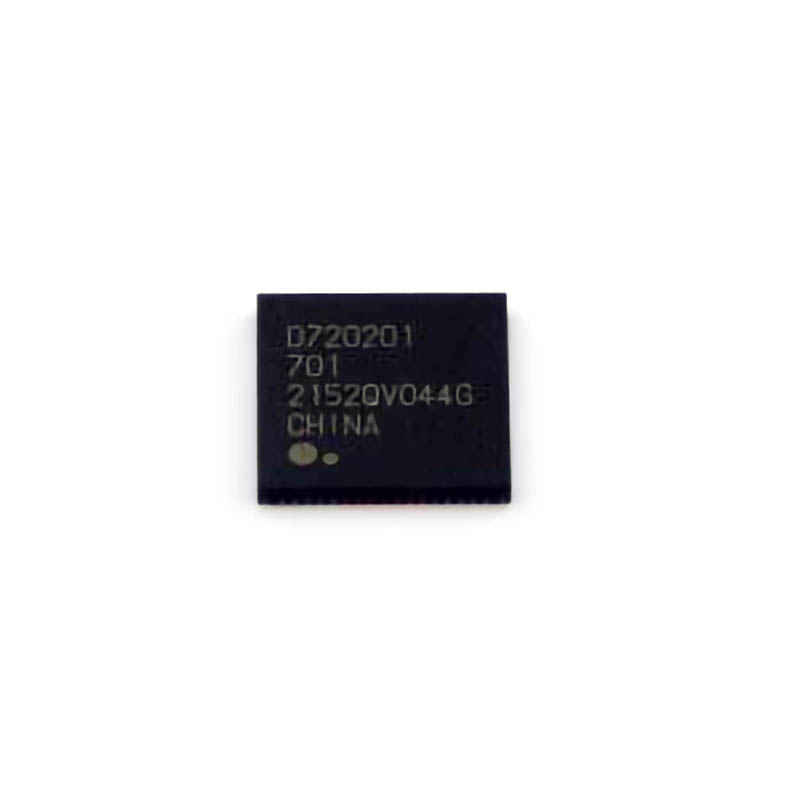

The UPD720201K8-701-BAC-A is a state-of-the-art USB 3.0 host controller developed by Renesas Electronics, designed to meet the high-speed data transmission needs of modern digital systems. This device ensures optimal USB interface performance in a range of applications, from consumer electronics to embedded systems.

This article provides an in-depth look at the UPD720201K8-701-BAC-A, focusing on its applications, design features, and how it enhances the efficiency of high-speed USB interfaces.

Key Features and Specifications of the UPD720201K8-701-BAC-A

The UPD720201K8-701-BAC-A stands out due to its impressive feature set and capabilities. Below are some of the key specifications that make this USB 3.0 host controller a popular choice for modern applications:

Data Transfer Rate: The UPD720201K8-701-BAC-A supports data transfer rates of up to 5 Gbps, making it suitable for high-performance applications such as external storage devices, video capture devices, and high-resolution cameras.

USB 3.0 and USB 2.0 Compatibility: It is fully backward compatible with USB 2.0, ensuring seamless integration with older devices while offering the performance advantages of USB 3.0 when used with newer hardware.

Low Power Consumption: The controller is designed with power efficiency in mind, ensuring minimal energy consumption without sacrificing performance. This is crucial for battery-powered devices and embedded systems where power efficiency is a priority.

Multiple Port Support: The UPD720201K8-701-BAC-A supports multiple downstream ports, making it an ideal solution for hubs and devices that require multiple USB connections.

Advanced Error Handling: The controller includes robust error-handling mechanisms to ensure reliable data transmission, even in environments with high levels of electrical noise or signal degradation.

Support for UASP (USB Attached SCSI Protocol): With support for UASP, the UPD720201K8-701-BAC-A allows for faster and more efficient data transfer, particularly for applications involving large data sets such as video editing or large file transfers.

Application in High-Speed Data Transfer

The UPD720201K8-701-BAC-A is widely used in applications that demand high-speed data transfer capabilities. Some of the most common applications include:

External Storage Devices: The controller’s high-speed data transfer capabilities make it an ideal choice for connecting external hard drives, SSDs, and USB flash drives, enabling rapid read/write operations.

High-Definition Video Devices: Devices such as high-definition cameras, video capture cards, and streaming devices benefit from the UPD720201K8-701-BAC-A’s support for high-speed data transfers, ensuring smooth video streaming and recording.

Consumer Electronics: Many consumer electronics devices, including smartphones, tablets, and gaming consoles, utilize USB 3.0 controllers to enhance user experience through faster charging, data transfers, and peripheral device communication.

Embedded Systems: The UPD720201K8-701-BAC-A is also well-suited for embedded systems that require high-speed USB interfaces, providing reliable communication between microcontrollers and peripherals in industrial automation, medical devices, and more.

System Design Considerations

When integrating the UPD720201K8-701-BAC-A into a system design, several key considerations must be taken into account to ensure optimal performance and functionality:

Power Supply Requirements: The UPD720201K8-701-BAC-A has specific voltage and current requirements. Proper power Management is essential for stable operation, especially in systems that rely on low-power devices.

PCB Layout: High-speed USB interfaces demand precise PCB layout to minimize signal degradation and electromagnetic interference. Designers must pay close attention to routing, grounding, and impedance matching to maintain signal integrity.

Connector Selection: USB connectors play a crucial role in ensuring reliable data transmission. Choosing the right connectors that meet the USB 3.0 specification ensures compatibility and high-speed performance.

Thermal Management : High-speed data transfers can generate heat, especially in high-performance systems. Adequate thermal management through heatsinks or other cooling solutions may be necessary to prevent thermal throttling and ensure consistent performance.

Advantages of Using UPD720201K8-701-BAC-A

There are numerous advantages to incorporating the UPD720201K8-701-BAC-A into high-speed USB interface designs:

Enhanced Performance: With support for USB 3.0, the controller delivers faster data transfer rates compared to previous generations, reducing bottlenecks and improving overall system performance.

Future-Proof Design: As USB 3.0 continues to be widely adopted across various industries, integrating the UPD720201K8-701-BAC-A ensures that systems remain compatible with the latest USB devices.

Low Latency: The controller is designed for low-latency communication, making it ideal for applications that require real-time data transfers, such as live video streaming or gaming peripherals.

Scalability: The UPD720201K8-701-BAC-A’s multiple port support allows for scalability, enabling designers to develop systems with multiple USB ports for additional functionality.

Practical Design Implementations

Integrating the UPD720201K8-701-BAC-A into system designs requires an understanding of the device’s functionality and the intended application. Below are a few practical examples where this USB 3.0 host controller can be effectively utilized.

Desktop PCs and Laptops: Most modern PCs and laptops include built-in USB 3.0 support, often via controllers like the UPD720201K8-701-BAC-A. By embedding this controller into the motherboard or as a standalone expansion card, these devices can achieve high-speed file transfers, faster peripheral connections, and enhanced multimedia performance.

External Storage Systems: The integration of the UPD720201K8-701-BAC-A in external hard drive enclosures or docking stations significantly improves the performance of these devices. Users benefit from faster read/write speeds, which is particularly beneficial for users working with large files or high-definition media.

Virtual Reality (VR) and Augmented Reality (AR) Systems: VR and AR systems rely on fast data transmission for real-time graphics rendering and interaction. The UPD720201K8-701-BAC-A enables low-latency communication between the host and peripherals, ensuring smooth, immersive experiences.

Industrial Automation: Embedded systems in industrial applications often require robust data transfer capabilities for real-time monitoring, control, and communication. The UPD720201K8-701-BAC-A can be used in industrial PCs, sensors, and control systems to facilitate high-speed data exchanges between various devices.

Overcoming Challenges in High-Speed USB Design

While integrating the UPD720201K8-701-BAC-A offers numerous benefits, there are challenges that engineers and designers must address to ensure optimal performance:

Signal Integrity: As data transfer rates increase, ensuring signal integrity becomes more challenging. Engineers must carefully design the PCB layout to reduce signal reflection, cross-talk, and electromagnetic interference ( EMI ). The use of high-quality components and proper grounding techniques is essential.

Power Consumption: Although the UPD720201K8-701-BAC-A is designed for low power consumption, high-speed data transfer can still place demands on the power supply. Designers need to ensure that the power supply can handle peak loads without causing voltage drops or instability.

Compatibility Issues: While the UPD720201K8-701-BAC-A is backward compatible with USB 2.0, compatibility with legacy devices can sometimes be tricky. Engineers must ensure that the device handles protocol differences and optimizes data transfer rates depending on the USB version of the connected device.

Thermal Management: High-speed USB interfaces can generate significant heat, especially in systems with multiple ports and heavy data traffic. Adequate cooling solutions, such as heat sinks or active cooling, may be required to prevent overheating and ensure long-term reliability.

Conclusion: The Future of High-Speed USB Interfaces

The UPD720201K8-701-BAC-A represents a significant advancement in USB technology, offering high-speed data transfer, power efficiency, and compatibility with a wide range of devices. Its versatility makes it suitable for everything from consumer electronics to industrial applications, and its support for USB 3.0 ensures that systems remain future-proof as USB technology continues to evolve.

As USB 3.0 becomes the standard for data transfer in a variety of devices, the importance of choosing the right host controller becomes paramount. The UPD720201K8-701-BAC-A stands out as an excellent choice for designers seeking a high-performance, reliable, and cost-effective solution for high-speed USB interfaces. With continued innovation and adoption, USB technology will continue to play a critical role in driving connectivity and data transfer capabilities in the years to come.
