Functional Characteristics of the SN74LS138 Decoder

In the world of digital electronics, efficient signal routing and data management are pivotal in ensuring the smooth operation of complex systems. The SN 74LS138 decoder, a popular choice in digital circuit design, plays a crucial role in address decoding by transforming binary inputs into a specific output line based on predefined logic. Understanding the functional characteristics of the SN74LS138 can help engineers design more effective and efficient systems in Memory management, data routing, and beyond.

Introduction to the SN74LS138 Decoder

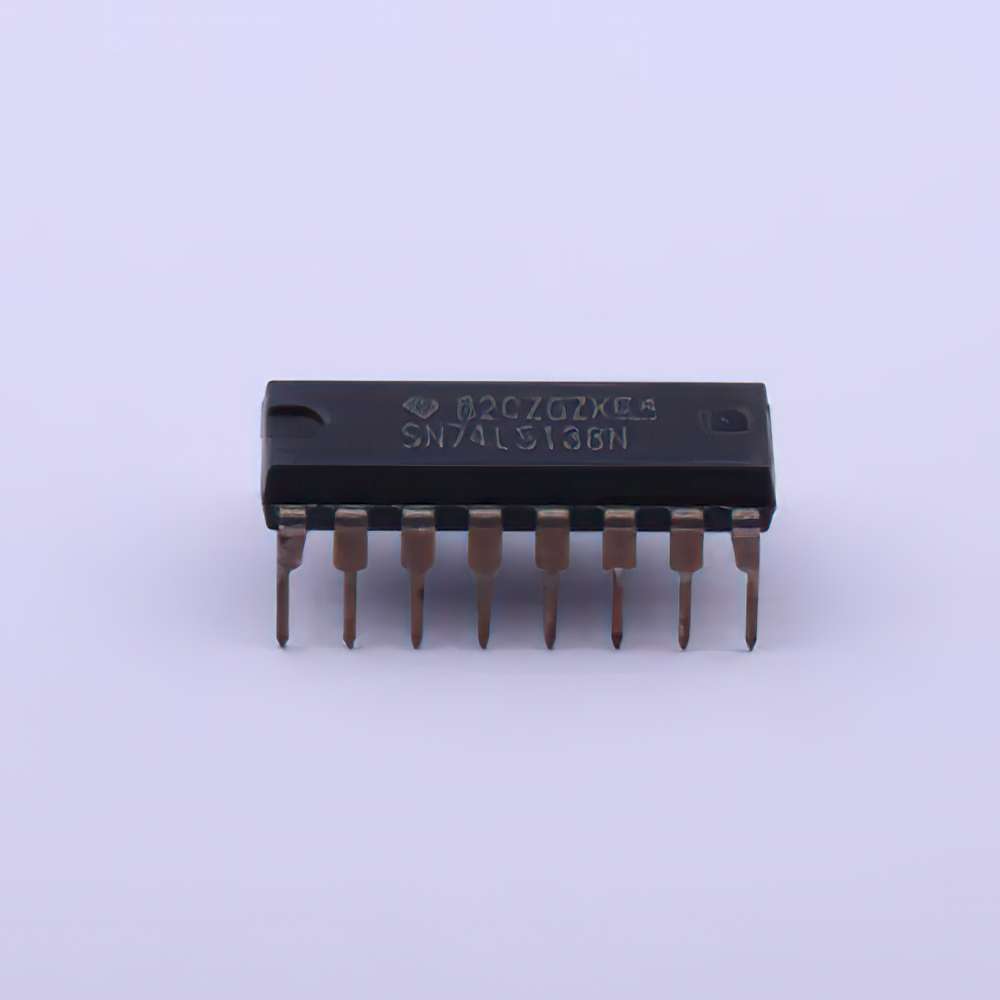

The SN74LS138 is a 3-to-8 line decoder, meaning it takes a 3-bit input and decodes it into one of eight outputs. Each of these outputs corresponds to a specific combination of the input bits. Typically, the SN74LS138 is used in address decoding circuits for systems like memory units, where it helps identify which memory block is being accessed based on the address provided.

The device is a member of the 74LS (Low Power Schottky) family of logic devices, which are known for their high-speed performance and low power consumption. The decoder’s main function is to select one of eight possible output lines, corresponding to one of eight addressable memory locations, based on the combination of the three binary input bits.

Functional Overview of the SN74LS138

The SN74LS138 consists of three primary inputs (A, B, and C) and eight output lines (Y0 to Y7). The inputs are typically binary values (0 or 1), and the decoder outputs one active line based on the binary input combination. It operates as follows:

When the binary input combination is 000, the output line Y0 is activated.

When the binary input combination is 001, the output line Y1 is activated.

This pattern continues, with the input combination determining which output is asserted.

The decoder also has an enable pin (often labeled as G1 and G2A) that must be activated for the device to function. If the enable pin is not active, none of the output lines will be asserted, regardless of the input values. This feature makes the SN74LS138 highly useful in multi-line systems, where multiple Decoders might be used, and it is important to control when each decoder is active.

Output Characteristics

The SN74LS138's output lines are typically active low, which means that the selected output line will go to a logic low level (0) when activated, while all the other output lines remain at a logic high level (1). This behavior is particularly useful in applications such as memory addressing, where an active low signal can be used to enable the appropriate memory bank.

Furthermore, the device features a built-in latch that allows it to hold the selected output state, even after the input values change. This latch function is essential in applications where the output must remain stable during transitions or where the decoder needs to maintain the address of a previously accessed memory location.

Timing Characteristics

When designing circuits with the SN74LS138, engineers must take the timing characteristics of the device into account. The device has a propagation delay, which is the time it takes for an input change to propagate through the decoder and produce a change on the output. For the SN74LS138, the propagation delay is typically around 10-15 nanoseconds, depending on the supply voltage and temperature conditions. This low delay ensures that the decoder can operate at high speeds, making it suitable for time-sensitive applications.

Additionally, the device has setup and hold time requirements for the inputs, which are important to ensure that the input signals are stable long enough for the decoder to correctly process them. These timing considerations are crucial when integrating the SN74LS138 into high-speed systems, as improper timing could lead to incorrect decoding and malfunction.

Power Consumption

Another key characteristic of the SN74LS138 is its low power consumption, a hallmark of the LS series logic devices. The decoder operates with a typical supply voltage of 5V, and its current consumption is relatively low compared to other logic devices in its class. This makes it an ideal choice for systems where power efficiency is important, such as battery-powered devices or large-scale digital systems with many logic components.

Practical Applications of the SN74LS138 Decoder

The SN74LS138 is widely used in digital systems that require address decoding, such as in memory management systems, peripheral selection circuits, and bus multiplexing. Below are a few practical applications where the SN74LS138 decoder proves invaluable:

1. Memory Address Decoding

In a system with multiple memory blocks, such as ROM, RAM, or Flash memory, the SN74LS138 decoder can be used to select the appropriate memory module based on the address. By providing the 3-bit address as input, the decoder will activate the corresponding memory block, allowing the system to access the correct location.

2. Peripheral Selection

In systems with multiple peripherals (e.g., printers, displays, sensors), the SN74LS138 can decode address lines to select which peripheral is being accessed. The decoder’s ability to handle multiple output lines makes it well-suited for systems where multiple devices need to be controlled using a limited number of address lines.

3. Bus Multiplexing

Bus systems that share a common data bus can use the SN74LS138 to enable the appropriate bus segment for data transfer. The decoder selects one of the connected devices, allowing for efficient use of the bus without conflict.

4. Control Signal Generation

In more complex systems, the SN74LS138 can be used to generate control signals that enable specific operations, such as reading from or writing to a memory location or triggering an I/O operation.

Conclusion of Part 1

The SN74LS138 decoder offers a variety of functional characteristics that make it an indispensable tool in modern digital circuit design. Its ability to efficiently decode binary input into a single active output, combined with features such as active low output lines and enable pins, allows it to play a central role in address decoding circuits. Furthermore, its timing, power efficiency, and broad range of applications make it an attractive choice for engineers working in memory management, peripheral control, and bus multiplexing.

Address Decoding Circuit Design with the SN74LS138

When designing a digital system that involves address decoding, choosing the right decoder is essential for ensuring proper operation and high system efficiency. The SN74LS138 decoder stands out as a versatile and reliable option for many applications, particularly in systems where memory or peripheral devices must be selectively enabled based on an address input. In this section, we will explore the design process for address decoding circuits using the SN74LS138, including typical configurations, considerations, and advanced techniques for optimizing performance.

Address Decoding Basics

Address decoding is the process of translating a specific address from a system’s address bus into a signal that enables the appropriate memory or peripheral. In microprocessor-based systems, the address bus is used to specify which memory location or peripheral is to be accessed. The address lines typically carry binary values, which must be decoded by logic circuits to activate the correct device.

A 3-to-8 line decoder like the SN74LS138 is ideal for this task, as it can uniquely select one of eight devices based on a 3-bit binary address. The decoder’s three input lines (A, B, and C) represent the binary address, while the eight output lines correspond to the eight possible devices or memory locations.

In the simplest case, a decoder can be used to directly select one of eight memory locations based on the address. For example, if the input address is 010, the decoder will output a logic low signal on output Y2, selecting the corresponding memory location. The remaining output lines will remain high, ensuring that only one memory module is enabled at a time.

Designing with the SN74LS138

When incorporating the SN74LS138 into an address decoding circuit, several key design considerations must be taken into account. These include the following:

1. Enable Logic

The enable pins of the SN74LS138 are critical to its operation. The decoder has two enable pins, G1 and G2A, that must both be activated (typically low) to allow the decoder to function. If either of these enable pins is not active, the output lines will remain inactive regardless of the input address.

In practice, the enable pins are often controlled by other parts of the system, such as a microprocessor or a control unit. For example, in a system with multiple memory modules, the enable pins can be used to activate the appropriate decoder for each memory bank. In some cases, additional logic gates may be used to generate the necessary enable signals based on other system conditions.

2. Cascading Decoders

For systems with more than eight devices or memory locations to decode, multiple SN74LS138 decoders can be cascaded together. Cascading involves connecting the output of one decoder to the input of another, creating a hierarchical decoding structure. This allows for decoding of larger address spaces with a limited number of input lines.

For example, if a system requires decoding of 16 memory locations, two SN74LS138 decoders can be used. The first decoder handles the upper three address bits (A, B, and C), while the second decoder handles the next set of address bits. The output of the first decoder is used to enable the second decoder, ensuring that the correct memory block is selected.

3. Active Low Output Handling

Since the SN74LS138 produces active low outputs, careful attention must be paid to how the output lines are connected to the rest of the system. For instance, when using the decoder in a memory address decoding circuit, the active low output can be connected to the chip enable or select input of the memory devices. When the corresponding output is low, the memory device is enabled and can participate in read/write operations.

In some systems, logic inverters may be used to convert the active low output into an active high signal, depending on the requirements of the application.

4. Timing and Delays

As discussed earlier, the SN74LS138 decoder has specific timing requirements, including propagation delay and setup/hold times. When designing circuits with the SN74LS138, it is important to ensure that the timing of the address lines and enable signals is properly synchronized with the decoder’s inputs.

In fast systems, engineers may need to account for the propagation delay to avoid timing mismatches that could lead to incorrect decoding or malfunction. Timing analysis should be performed to verify that the decoder’s output responds correctly to the address inputs without violating setup and hold times.

5. Power Considerations

Although the SN74LS138 is known for its low power consumption, it is still important to consider the power needs of the entire decoding circuit, especially in systems with multiple decoders. Proper power management techniques should be used to ensure that the decoder and other components in the system operate within their rated power limits.

Advanced Applications of the SN74LS138 in Address Decoding

In more advanced systems, the SN74LS138 decoder can be used in complex address decoding strategies, such as:

Multilevel Address Decoding: Using multiple SN74LS138 decoders in a multilevel hierarchy to decode a large number of address bits efficiently.

Bus Arbitration: In systems where multiple processors or devices share the same bus, the SN74LS138 can be used to select which device has access to the bus at any given time.

Peripheral Control: The decoder can be used to route control signals to different peripherals in a system based on address inputs, enabling advanced I/O operations.

Conclusion

The SN74LS138 decoder is an essential component in the design of address decoding circuits, offering versatility, reliability, and high-speed performance. By understanding the device's functional characteristics and carefully considering design aspects like enable logic, cascading decoders, and timing requirements, engineers can create efficient and scalable systems for a wide range of applications. Whether it's for memory addressing, peripheral control, or complex bus arbitration, the SN74LS138 provides the necessary functionality to enable precise and reliable address decoding in modern digital systems.

This concludes our exploration of the SN74LS138 Decoder and its role in address decoding. Through understanding its functional characteristics and applying best design practices, engineers can harness the power of the SN74LS138 to create innovative solutions in a variety of digital systems.
